Status | Event Log

Use this read-only page to view a scrollable display of recorded modem events.
Modem Event Log
•
(Event #) Date / Time: The first three columns display the event by the order in which it was
logged, along with the date and time the event was recorded.
•
Type: The event is identified by its type in this column. Four event types are classified:
Info
o
Unit.
o
Tx Traffic
o
Rx
o
•
Code: Click on a hyperlinked fault code to display a page that describes the error code bit
positions.
Click [Refresh] to update the display with the most recently logged events.
Click [Clear Log] to clear the log. Once the log is cleared, the next time [Refresh] is clicked any
new events are logged and numbered beginning with '1'.
Base Modem HTTP/HTTPS Interface

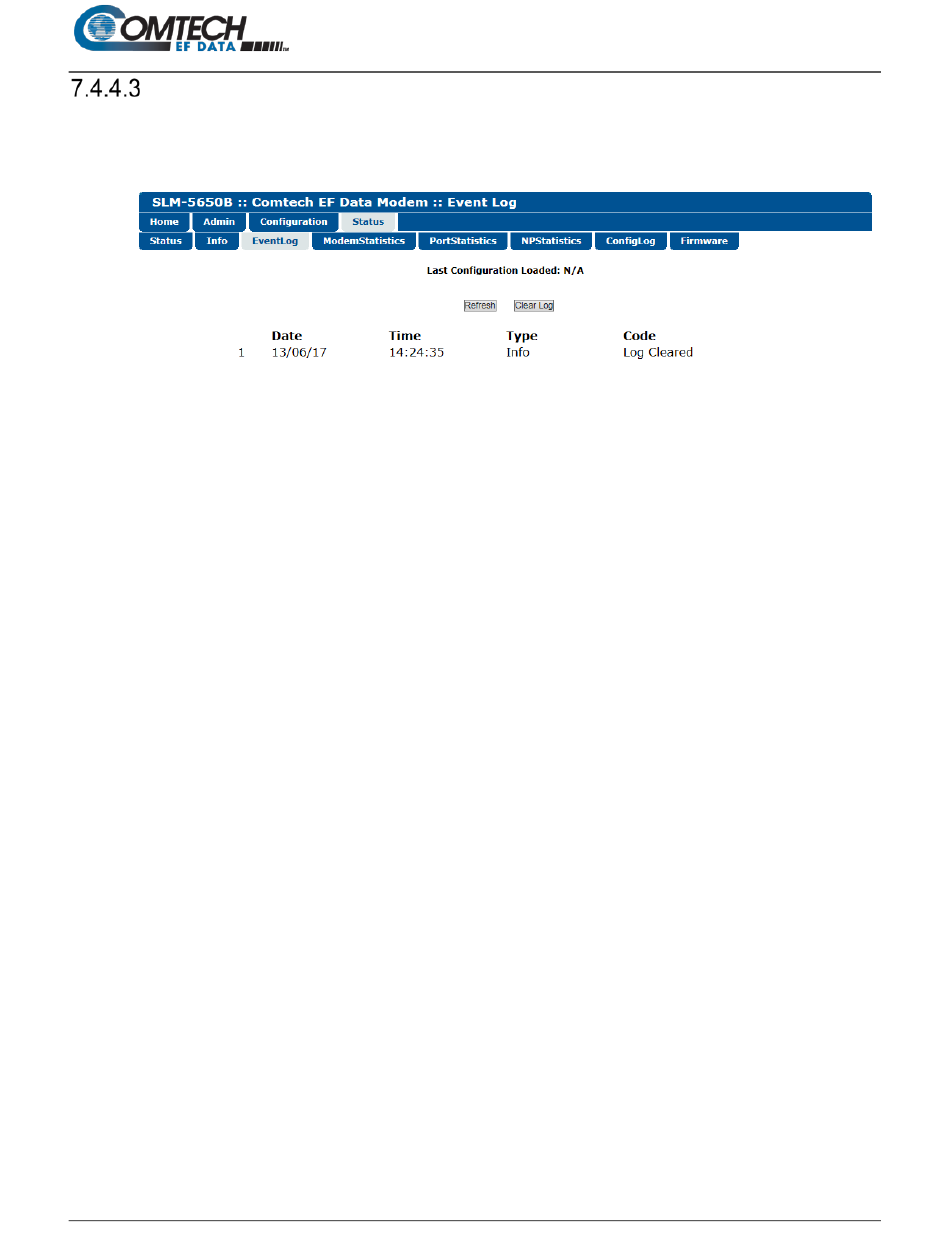

Figure 7-16. Status | Event Log Page

Traffic.
