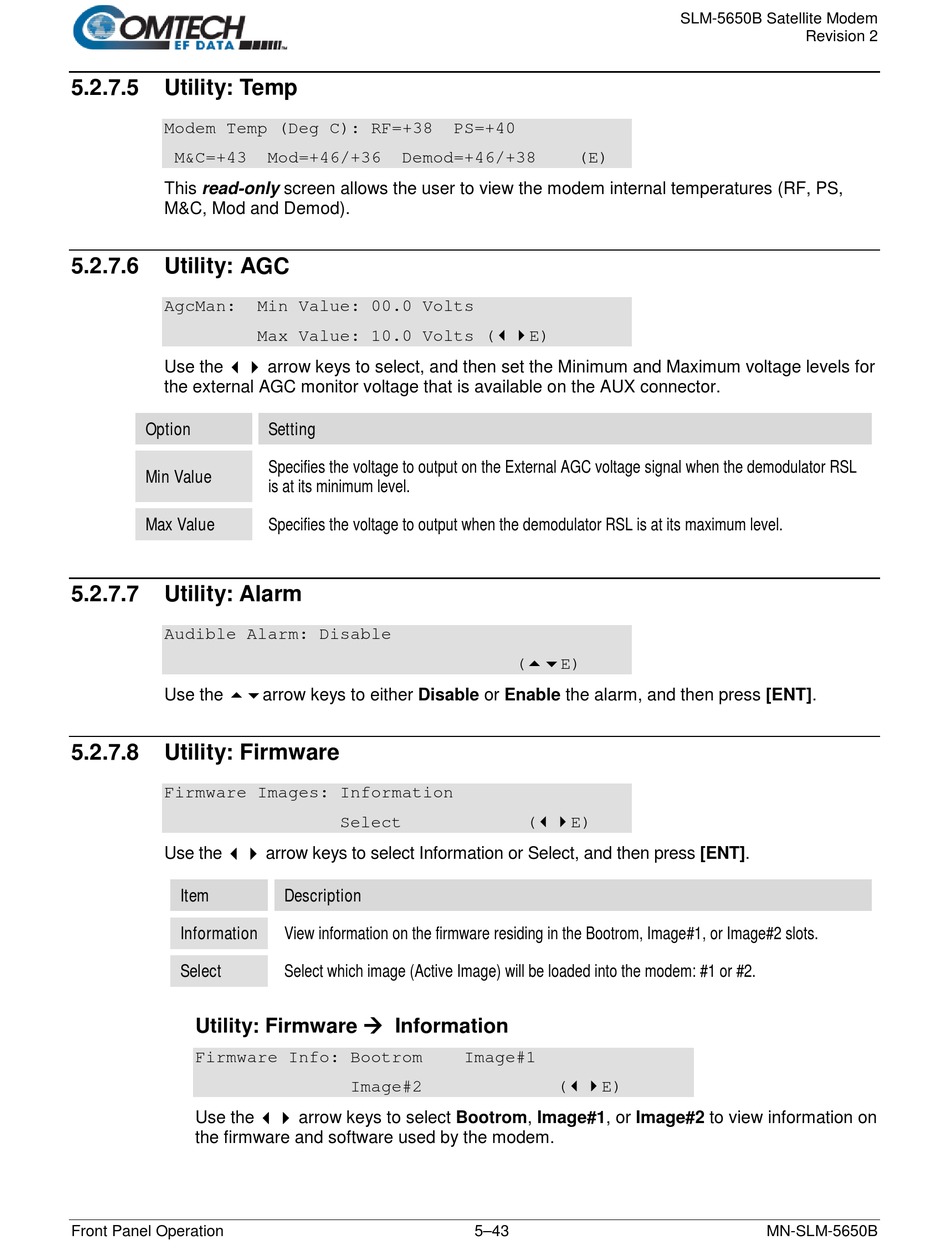

5.2.7.5

Utility: Temp

Modem Temp (Deg C): RF=+38
M&C=+43
This read-only screen allows the user to view the modem internal temperatures (RF, PS,
M&C, Mod and Demod).
5.2.7.6

Utility: AGC

AgcMan:
Use the  arrow keys to select, and then set the Minimum and Maximum voltage levels for
the external AGC monitor voltage that is available on the AUX connector.
Option
Min Value
Max Value
5.2.7.7

Utility: Alarm

Audible Alarm: Disable
Use the arrow keys to either Disable or Enable the alarm, and then press [ENT].
5.2.7.8

Utility: Firmware

Firmware Images: Information
Use the  arrow keys to select Information or Select, and then press [ENT].
Item
Information
Select
Utility: Firmware  Information
Firmware Info: Bootrom
Use the  arrow keys to select Bootrom, Image#1, or Image#2 to view information on
the firmware and software used by the modem.
Front Panel Operation
Mod=+46/+36 Demod=+46/+38
Min Value: 00.0 Volts
Max Value: 10.0 Volts (E)
Setting
Specifies the voltage to output on the External AGC voltage signal when the demodulator RSL
is at its minimum level.
Specifies the voltage to output when the demodulator RSL is at its maximum level.
Select
Description
View information on the firmware residing in the Bootrom, Image#1, or Image#2 slots.
Select which image (Active Image) will be loaded into the modem: #1 or #2.
Image#2
PS=+40
(E)
(E)
(E)
Image#1
(E)
