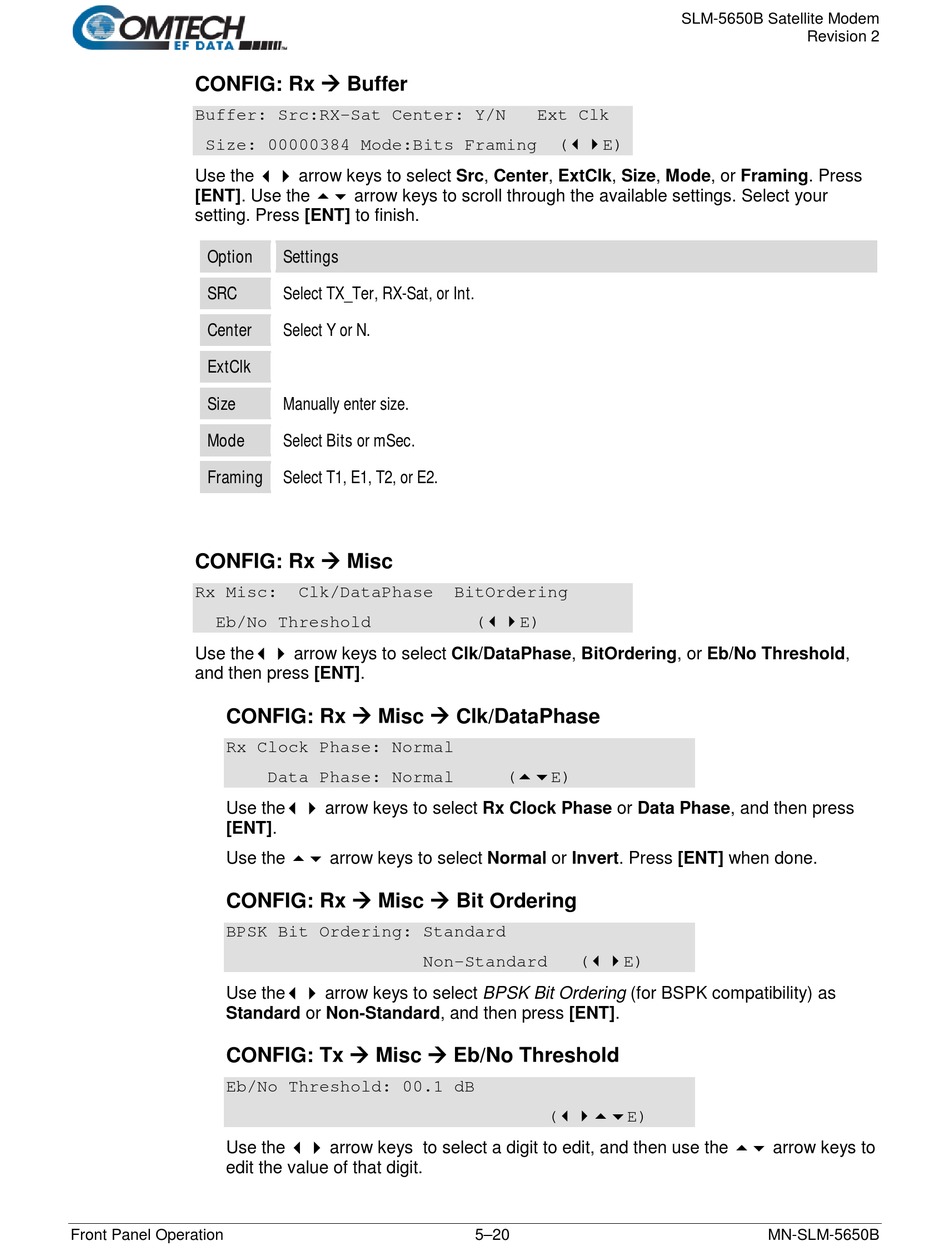

CONFIG: Rx  Buffer
Buffer: Src:RX-Sat Center: Y/N
Size: 00000384 Mode:Bits Framing
Use the  arrow keys to select Src, Center, ExtClk, Size, Mode, or Framing. Press
[ENT]. Use the  arrow keys to scroll through the available settings. Select your
setting. Press [ENT] to finish.
Option
SRC
Center
ExtClk
Size
Mode
Framing
CONFIG: Rx  Misc
Rx Misc:
Eb/No Threshold
Use the arrow keys to select Clk/DataPhase, BitOrdering, or Eb/No Threshold,
and then press [ENT].
CONFIG: Rx  Misc  Clk/DataPhase
Rx Clock Phase: Normal
Use the arrow keys to select Rx Clock Phase or Data Phase, and then press
[ENT].
Use the  arrow keys to select Normal or Invert. Press [ENT] when done.
CONFIG: Rx  Misc  Bit Ordering
BPSK Bit Ordering: Standard
Use the arrow keys to select BPSK Bit Ordering (for BSPK compatibility) as
Standard or Non-Standard, and then press [ENT].
CONFIG: Tx  Misc  Eb/No Threshold
Eb/No Threshold: 00.1 dB
Use the  arrow keys to select a digit to edit, and then use the  arrow keys to
edit the value of that digit.
Front Panel Operation
Settings
Select TX_Ter, RX-Sat, or Int.
Select Y or N.
Manually enter size.
Select Bits or mSec.
Select T1, E1, T2, or E2.
Clk/DataPhase
Data Phase: Normal
Non-Standard
Ext Clk
(E)
BitOrdering
(E)
(E)
(E)
(E)
5–20
