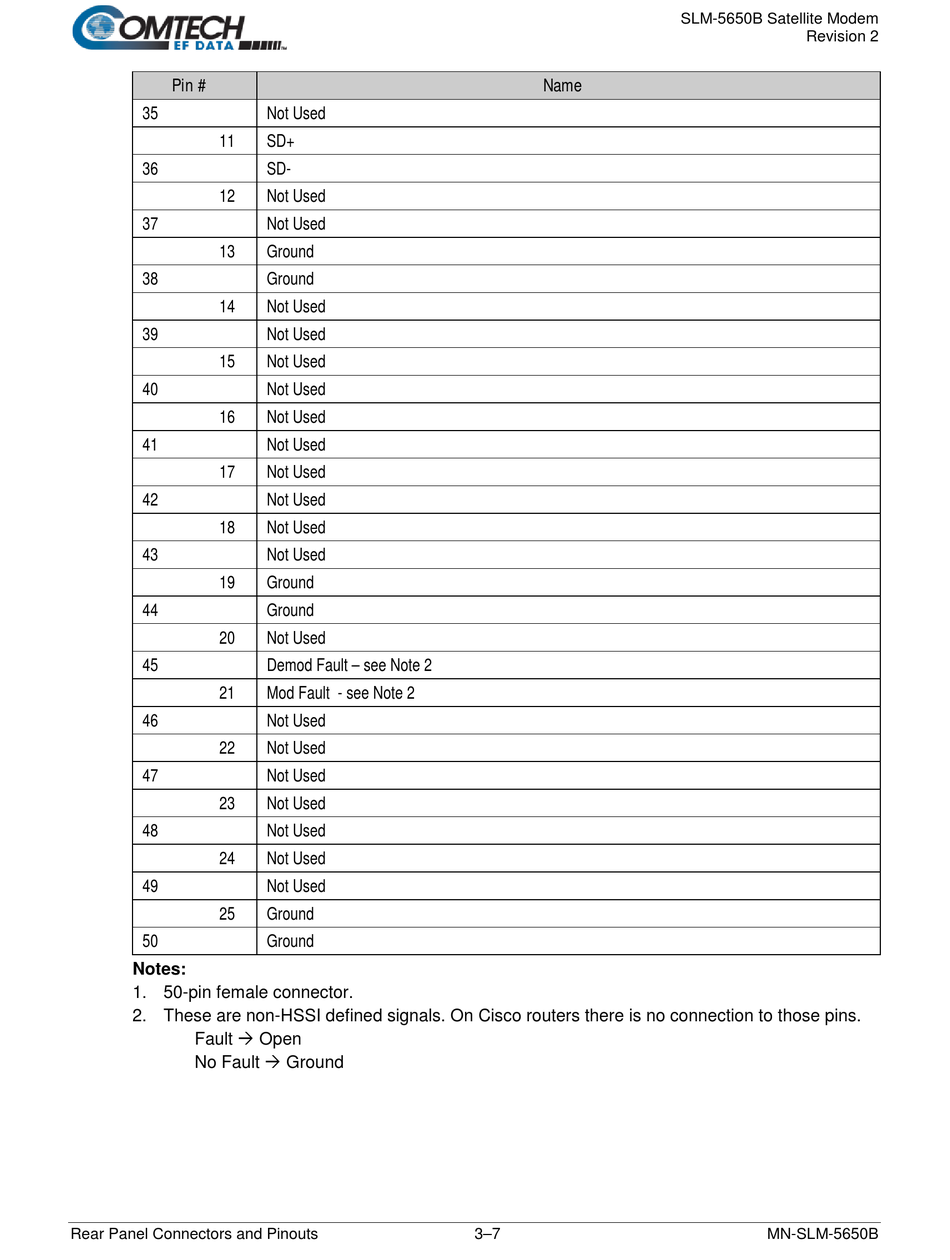

Comtech EF Data SLM-5650B Installation And Operation Manual page 65

Pin #
35
11
36
12
37
13
38
14
39
15
40
16
41
17
42
18
43
19
44
20
45
21
46
22
47
23
48
24
49
25
50
Notes:
1. 50-pin female connector.
2. These are non-HSSI defined signals. On Cisco routers there is no connection to those pins.
Fault  Open
No Fault  Ground
Rear Panel Connectors and Pinouts
Not Used
SD+
SD-
Not Used
Not Used
Ground
Ground
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Ground
Ground
Not Used
Demod Fault – see Note 2
Mod Fault - see Note 2
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Ground
Ground
