3.2

IF Connectors

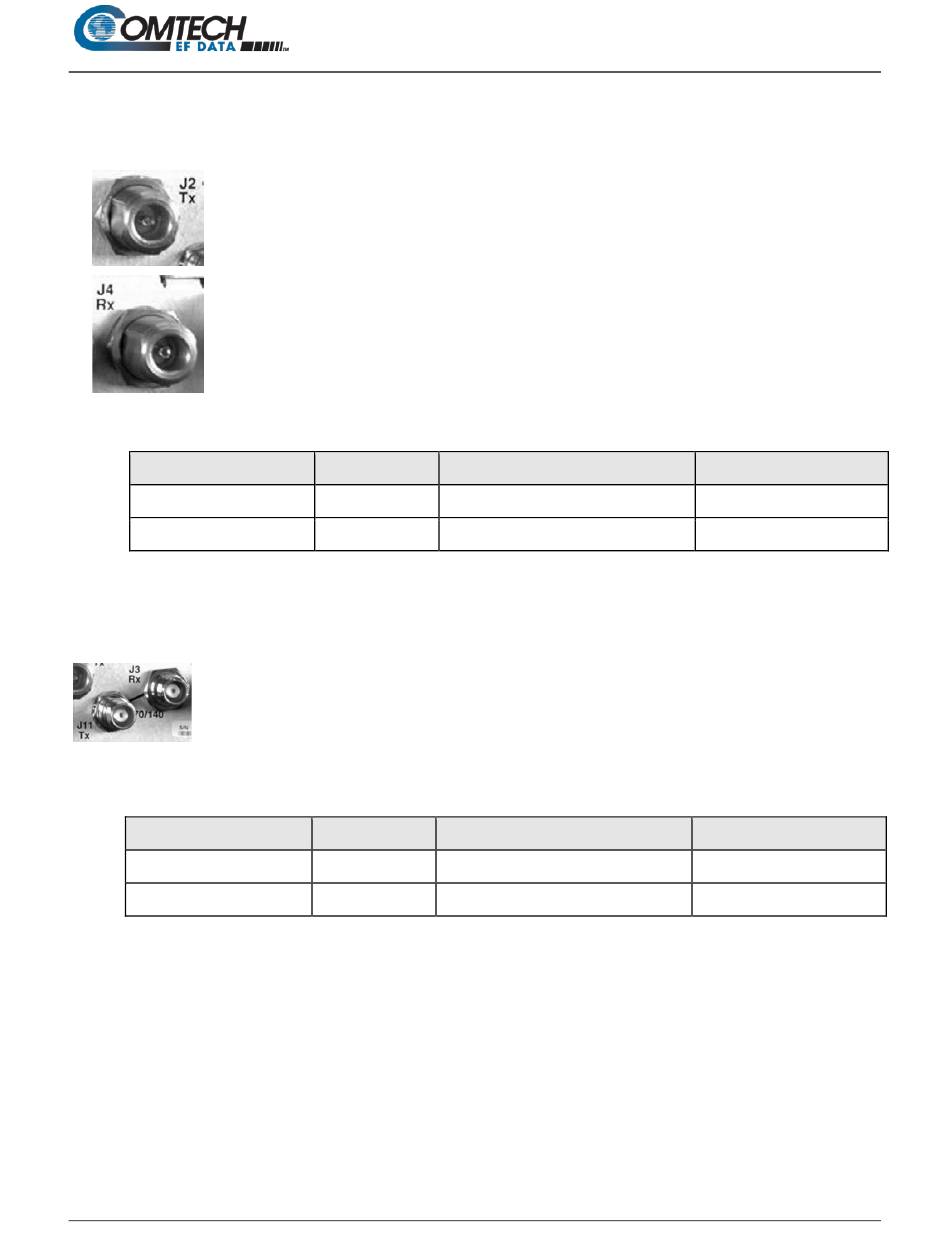

3.2.1 J2, J4 L-Band IF Interface Connectors

The L-Band IF Interfaces use standard 50 Ω Type 'N' female connectors:
Type 'N' Connector
Tx
Rx

3.2.2 J11, J3 70/140 MHz IF Interface Connectors

The 70/140 IF Interfaces use standard 50 Ω TNC female connectors:
TNC Connector
Tx
Rx
Rear Panel Connectors and Pinouts

Table 3-2. J2, J4 L-Band IF Interface Connectors

Ref Des
J2
J4

Table 3-3. J11, J3 70/140 MHz IF Interface Connectors

Ref Des
J11
J3
Description
950-2000 MHz Transmit
950-2000 MHz Receive
Description
52-88, 104-176 MHz Transmit
52-88, 104-176 MHz Receive
3–3
SLM-5650B Satellite Modem
Revision 2
Direction
Output
Input
Direction
Output
Input
MN-SLM-5650B
