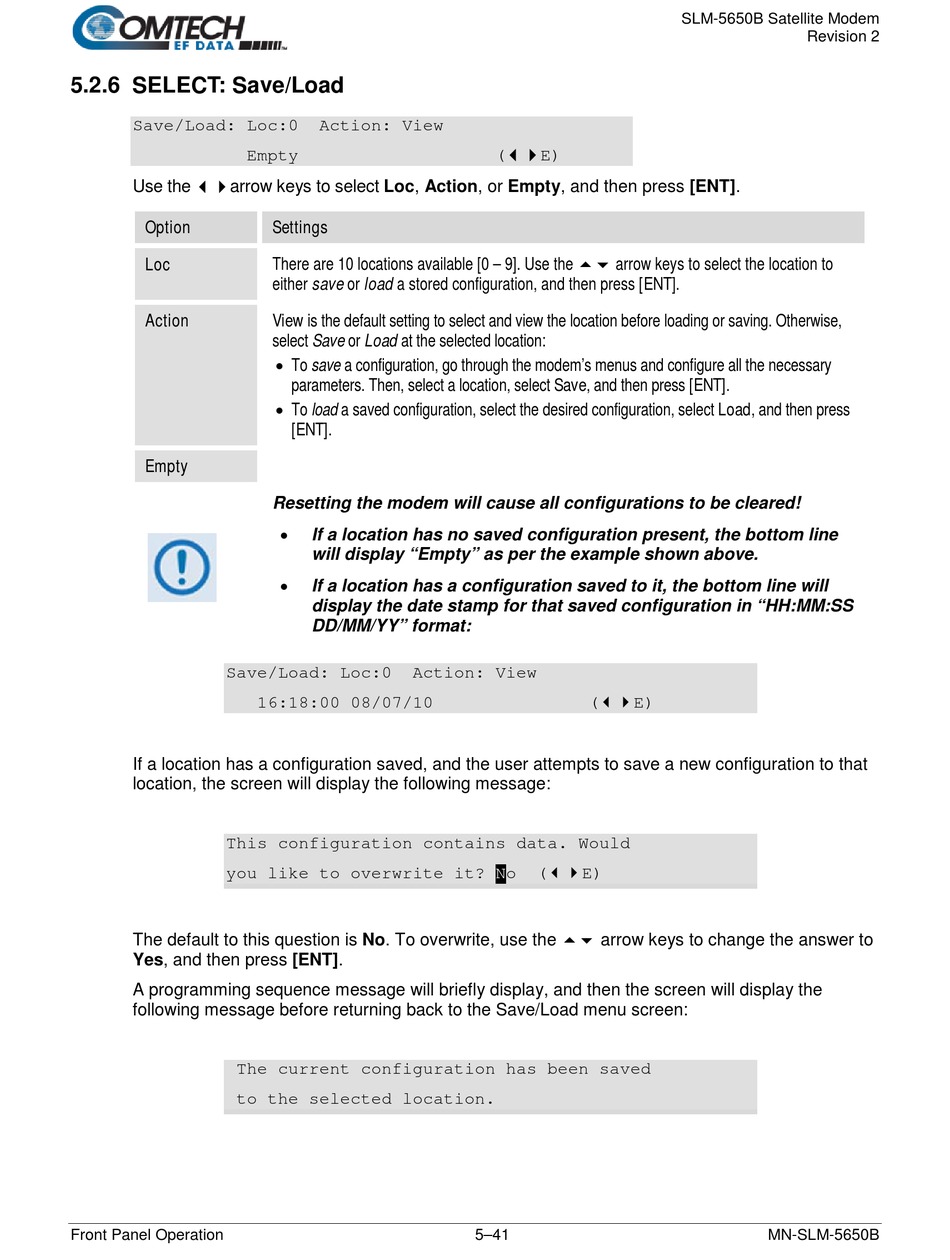

5.2.6 SELECT: Save/Load

Save/Load: Loc:0
Empty
Use the arrow keys to select Loc, Action, or Empty, and then press [ENT].
Option
Loc
Action
Empty
Save/Load: Loc:0
If a location has a configuration saved, and the user attempts to save a new configuration to that
location, the screen will display the following message:
This configuration contains data. Would
you like to overwrite it? No
The default to this question is No. To overwrite, use the  arrow keys to change the answer to
Yes, and then press [ENT].
A programming sequence message will briefly display, and then the screen will display the
following message before returning back to the Save/Load menu screen:
The current configuration has been saved
to the selected location.
Front Panel Operation
Action: View
Settings
There are 10 locations available [0 – 9]. Use the  arrow keys to select the location to
either save or load a stored configuration, and then press [ENT].
View is the default setting to select and view the location before loading or saving. Otherwise,
select Save or Load at the selected location:
• To save a configuration, go through the modem's menus and configure all the necessary
parameters. Then, select a location, select Save, and then press [ENT].
• To load a saved configuration, select the desired configuration, select Load, and then press
[ENT].
Resetting the modem will cause all configurations to be cleared!
•
If a location has no saved configuration present, the bottom line
will display "Empty" as per the example shown above.
•
If a location has a configuration saved to it, the bottom line will
display the date stamp for that saved configuration in "HH:MM:SS
DD/MM/YY" format:
Action: View
16:18:00 08/07/10
(E)
(E)
(E)
