WAN Page

This section depicts the NP HTTP/HTTPS Interface with Quality of Service (QoS)
and Vipersat installed on the modem. QoS and Vipersat are FAST Feature options
which must be purchased from Comtech EF Data. Refer to Section 8.6.5.2.2 for
more information.
Note: If the modem does not have the QoS option installed, the QoS hyperlinks
outlined in this section will not be visible/available to the user. When QoS is
disabled, a separate QoS status page is shown.
Select the QoS, QoS Stats, or Loopback Test hyperlink to continue.
8.6.5.5.1

WAN | QoS (Quality of Service)

Quality of Service Feature
Select On or Off, and then click [Submit] to enable/disable the Quality of Service feature.
Differential Services (DiffServ)
The option is available here for configuring each queue to one of the following attributes (the
minimum / maximum value range is shown in brackets):
Service Rate (kbps) [ 0.000 / (Tx Data Rate)]
Med. Drop Precedence (% full) [20 / 90 ]
High Drop Precedence (% full) [10 / 80]
Max Queue Depth (bytes) [1500 / 64000]
Click [Submit] after all values have been adjusted to enable settings.
Network Processor (NP) Interface

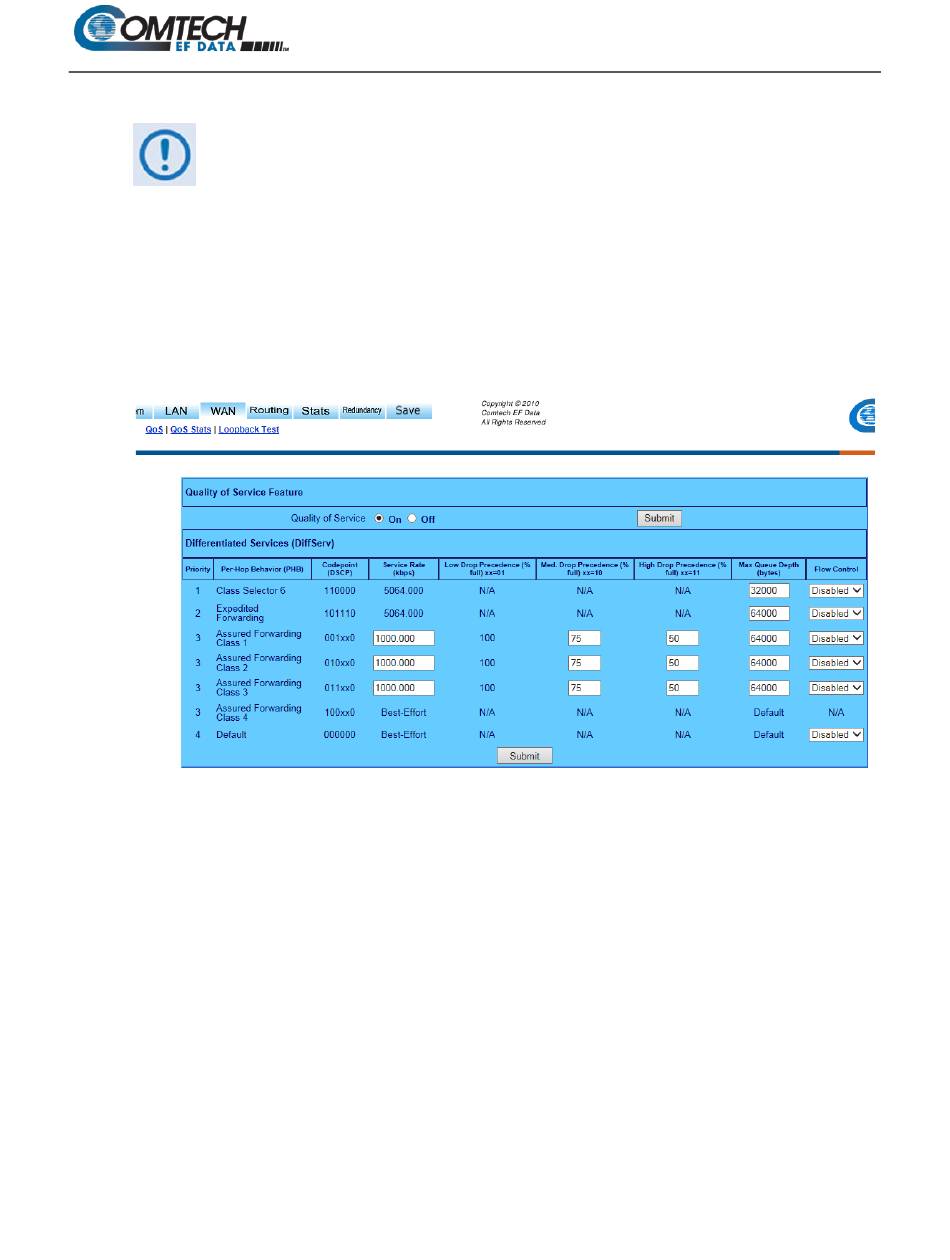

Figure 8-27. WAN | Quality of Service Page
