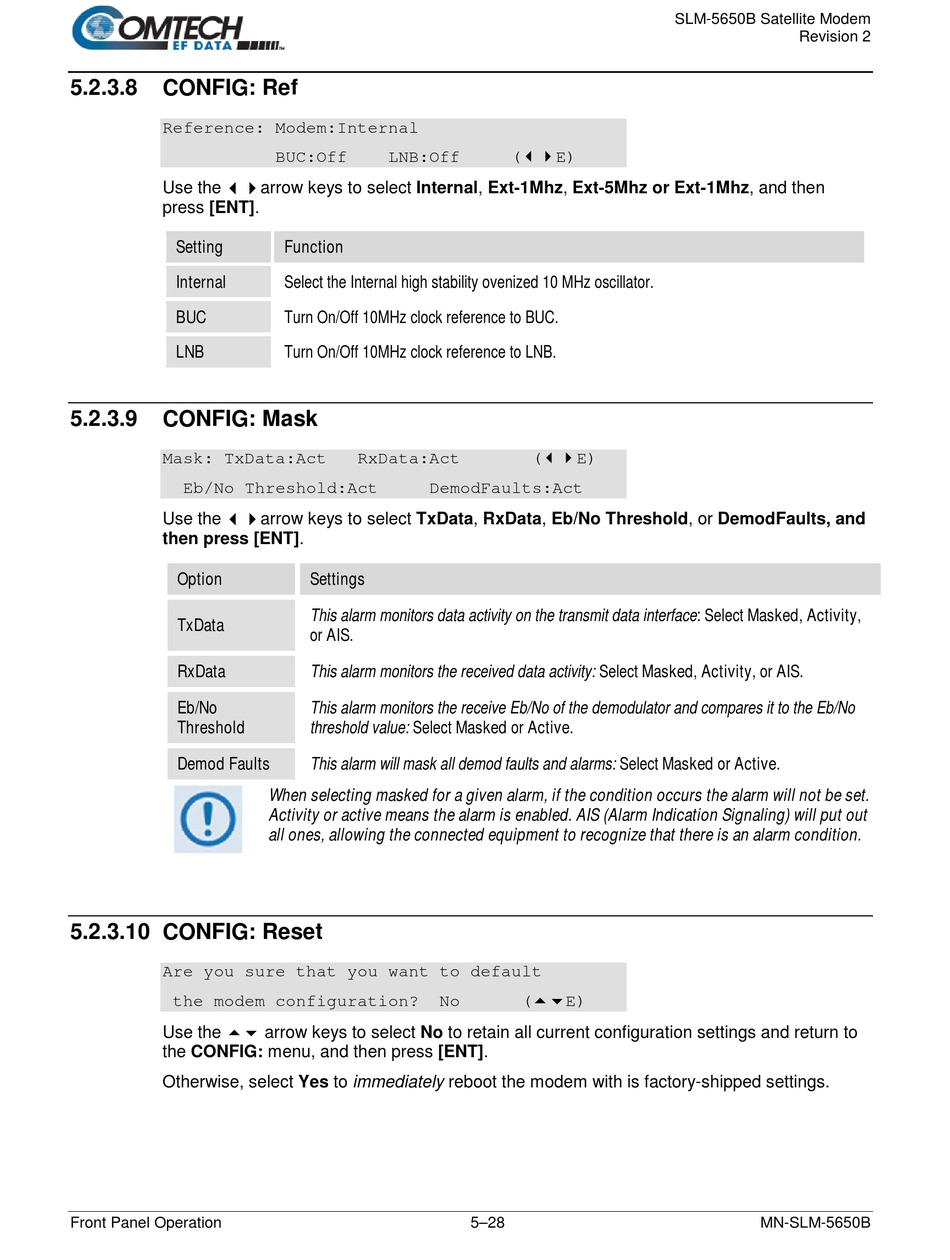

5.2.3.8

CONFIG: Ref

Reference: Modem:Internal
Use the arrow keys to select Internal, Ext-1Mhz, Ext-5Mhz or Ext-1Mhz, and then
press [ENT].
Setting
Internal
BUC
LNB
5.2.3.9

CONFIG: Mask

Mask: TxData:Act
Eb/No Threshold:Act
Use the arrow keys to select TxData, RxData, Eb/No Threshold, or DemodFaults, and
then press [ENT].
Option
TxData
RxData
Eb/No
Threshold
Demod Faults

5.2.3.10 CONFIG: Reset

Are you sure that you want to default
the modem configuration?
Use the  arrow keys to select No to retain all current configuration settings and return to
the CONFIG: menu, and then press [ENT].
Otherwise, select Yes to immediately reboot the modem with is factory-shipped settings.
Front Panel Operation
BUC:Off LNB:Off
Function
Select the Internal high stability ovenized 10 MHz oscillator.
Turn On/Off 10MHz clock reference to BUC.
Turn On/Off 10MHz clock reference to LNB.
RxData:Act
DemodFaults:Act
Settings
This alarm monitors data activity on the transmit data interface: Select Masked, Activity,
or AIS.
This alarm monitors the received data activity: Select Masked, Activity, or AIS.
This alarm monitors the receive Eb/No of the demodulator and compares it to the Eb/No
threshold value: Select Masked or Active.
This alarm will mask all demod faults and alarms: Select Masked or Active.
When selecting masked for a given alarm, if the condition occurs the alarm will not be set.
Activity or active means the alarm is enabled. AIS (Alarm Indication Signaling) will put out
all ones, allowing the connected equipment to recognize that there is an alarm condition.
No
(E)
(E)
(E)
