8.6.5.3.2

Modem | Monitor (Modem Status)

Use the read-only 'Modem | Monitor' page (Figure 8-20) to view the currently available modem
receive parameters and operating temperature.
Receive Parameters
Displays the modem's currently reported link values as follows:
Item
BER
Eb/No
Frequency
Offset
Signal
Level
Temperature
Reports the temperature of the modem in degrees Celsius.
Network Processor (NP) Interface

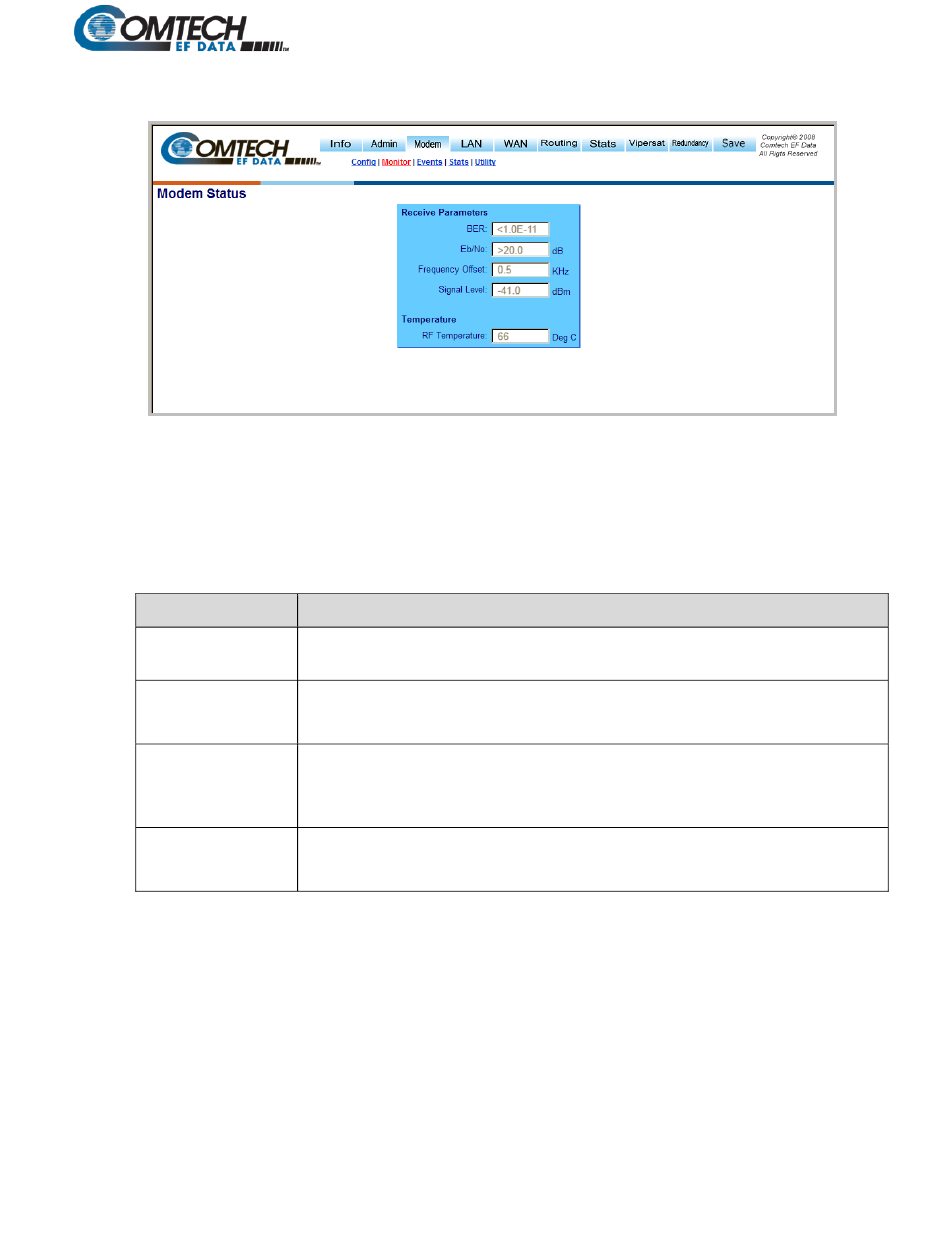

Figure 8-20. Modem | Monitor (Modem Status) page
Displays the estimated BER based on the demodulator's
measurement of the carrier to noise.
Displays the estimated Eb/No of the received carrier.
The range is threshold to 20 dB Eb/No.
Displays the received carrier frequency offset in Hz.
The range is the same as the acquisition range of the modem, 60
kHz.
Displays the signal level of the received carrier in dBm.
The range supported is +15 to –60 dBm.
