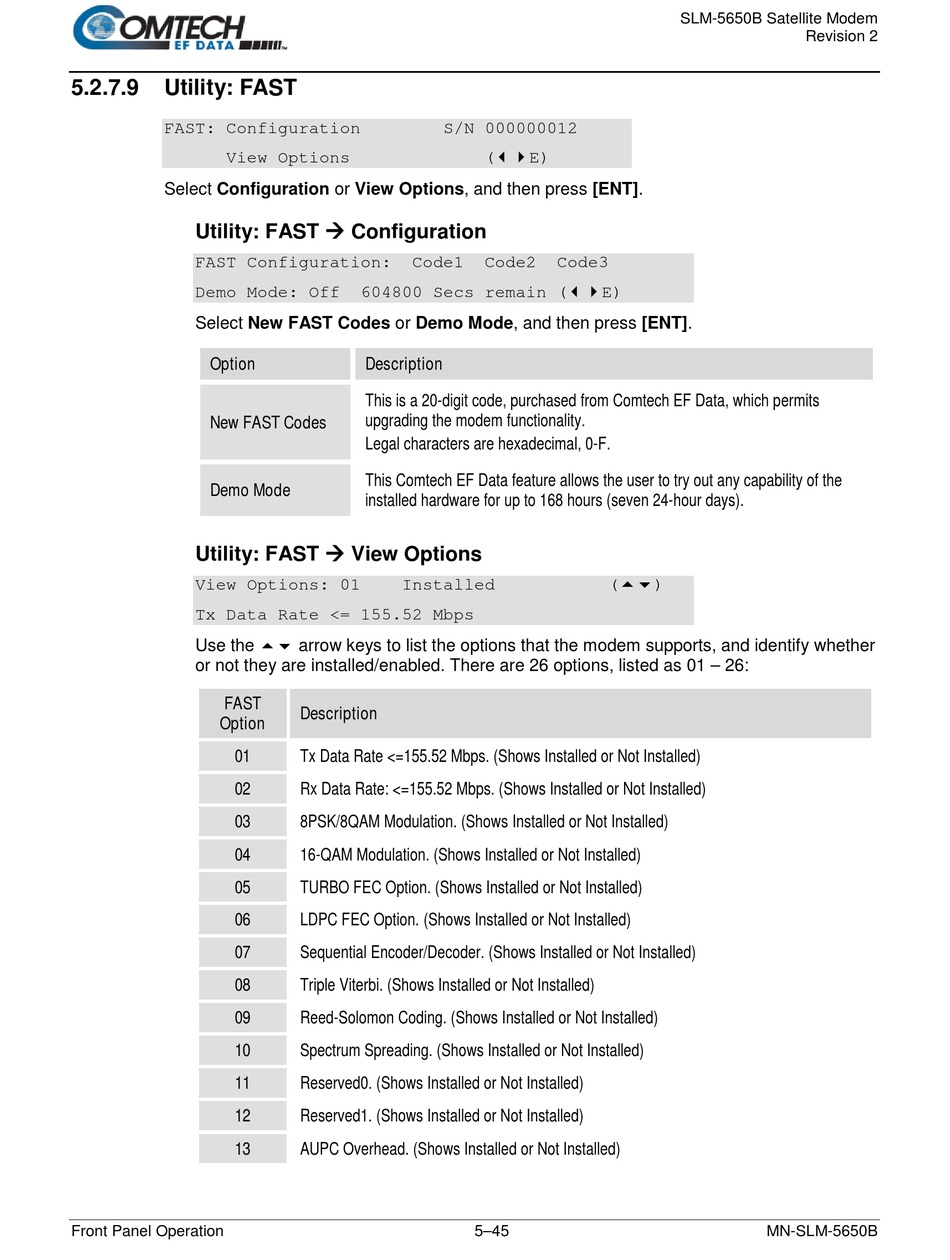

5.2.7.9

Utility: FAST

FAST: Configuration
View Options
Select Configuration or View Options, and then press [ENT].
Utility: FAST  Configuration
FAST Configuration:
Demo Mode: Off
Select New FAST Codes or Demo Mode, and then press [ENT].
Option
New FAST Codes
Demo Mode
Utility: FAST  View Options
View Options: 01
Tx Data Rate <= 155.52 Mbps
Use the  arrow keys to list the options that the modem supports, and identify whether
or not they are installed/enabled. There are 26 options, listed as 01 – 26:
FAST
Option
01
02
03
04
05
06
07
08
09
10
11
12
13
Front Panel Operation
S/N 000000012
Code1
604800 Secs remain (E)
Description
This is a 20-digit code, purchased from Comtech EF Data, which permits
upgrading the modem functionality.
Legal characters are hexadecimal, 0-F.
This Comtech EF Data feature allows the user to try out any capability of the
installed hardware for up to 168 hours (seven 24-hour days).
Installed
Description
Tx Data Rate <=155.52 Mbps. (Shows Installed or Not Installed)
Rx Data Rate: <=155.52 Mbps. (Shows Installed or Not Installed)
8PSK/8QAM Modulation. (Shows Installed or Not Installed)
16-QAM Modulation. (Shows Installed or Not Installed)
TURBO FEC Option. (Shows Installed or Not Installed)
LDPC FEC Option. (Shows Installed or Not Installed)
Sequential Encoder/Decoder. (Shows Installed or Not Installed)
Triple Viterbi. (Shows Installed or Not Installed)
Reed-Solomon Coding. (Shows Installed or Not Installed)
Spectrum Spreading. (Shows Installed or Not Installed)
Reserved0. (Shows Installed or Not Installed)
Reserved1. (Shows Installed or Not Installed)
AUPC Overhead. (Shows Installed or Not Installed)
5–45
(E)
Code2 Code3
()
