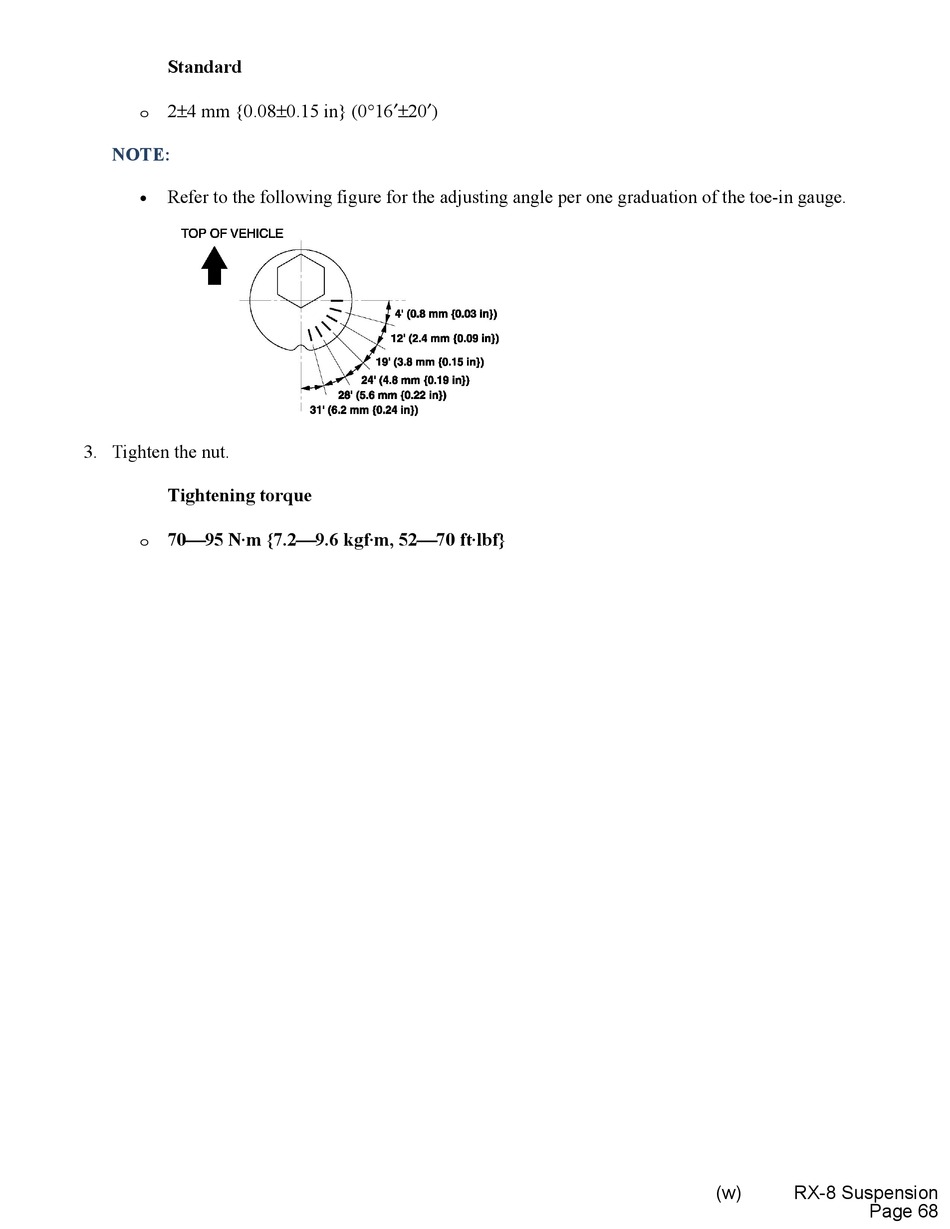

Mazda RX-8 Manual page 1625

Standard
2±4 mm {0.08±0.15 in} (0°16'±20')
o
NOTE:
Refer to the following figure for the adjusting angle per one graduation of the toe-in gauge.
•
3. Tighten the nut.
Tightening torque
70    95 N·m {7.2    9.6 kgf·m, 52    70 ft·lbf}
o
(w) RX-8 Suspension
Page 68
