DOOR LOCK AND OPENER

FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

1. Remove the following parts:
a. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
b. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
c. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
d. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
e. Front door unit (See FRONT DOOR UNIT REMOVAL/INSTALLATION .)
f. Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
2. Detach the front door key cylinder rod.

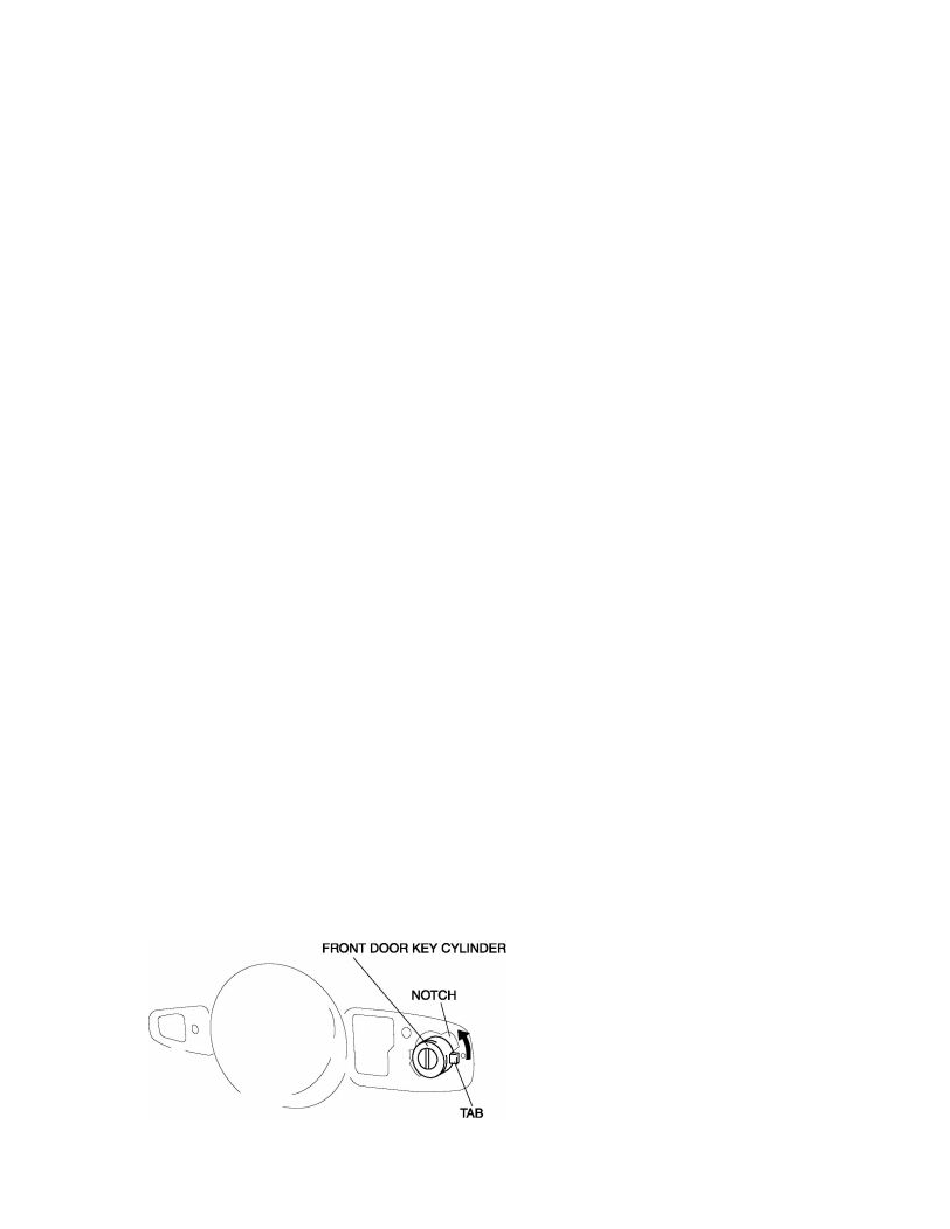

3. Turn the front door key cylinder so that the tab is aligned with the notch.
