WHEEL HUB, KNUCKLE

WHEEL HUB, REAR KNUCKLE INSPECTION

Wheel Bearing Looseness Inspection

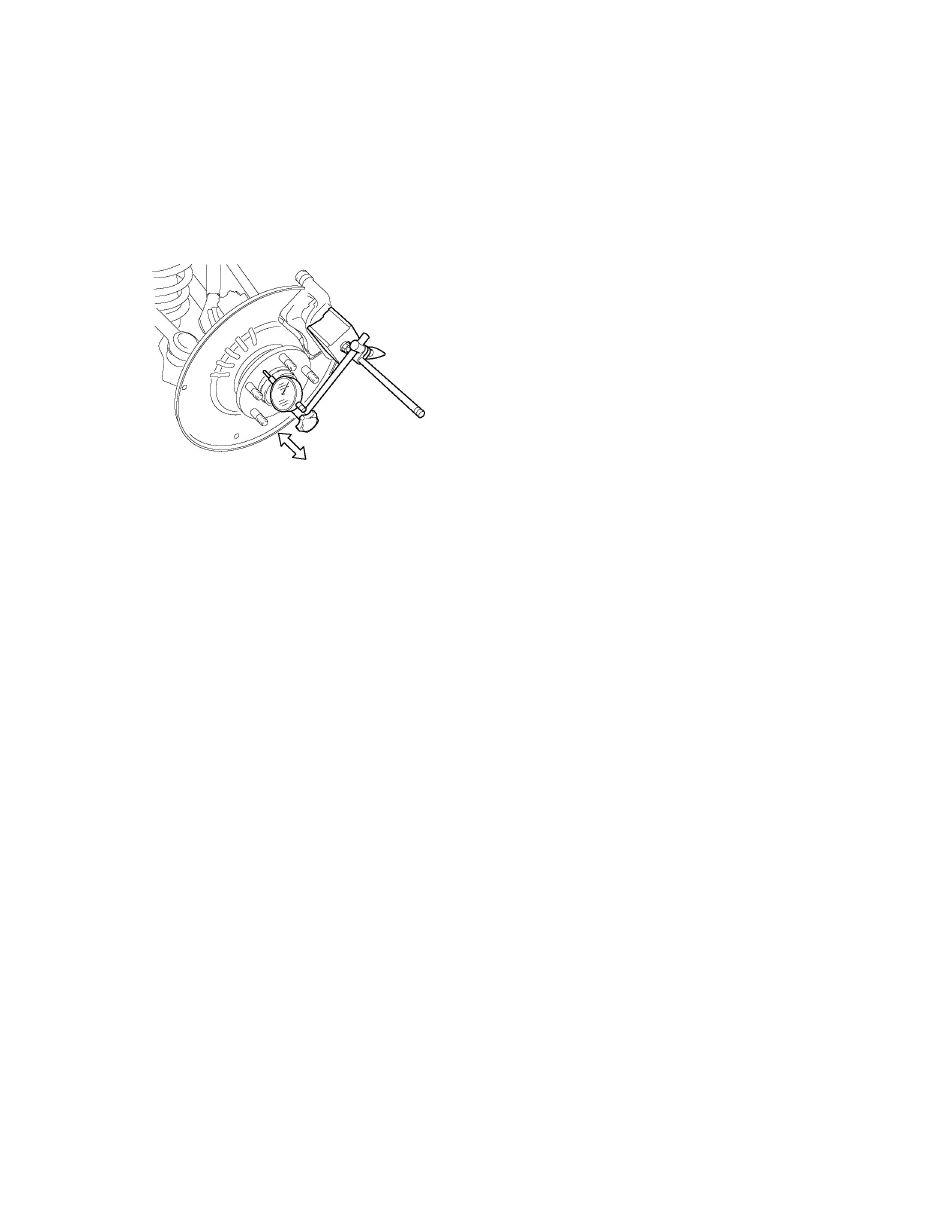

1. Install the magnetic vase and dial gauge as shown in the figure, and inspect the wheel bearing for axial

If it exceeds the maximum specification, replace the wheel hub component.

Maximum wheel bearing play

0.05 mm {0.002 in}

WHEEL HUB, REAR KNUCKLE REMOVAL/INSTALLATION

Performing the following procedures without first removing the ABS wheel-speed sensor may possibly

cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following

procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the

sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, inspect the rear wheel alignment.
