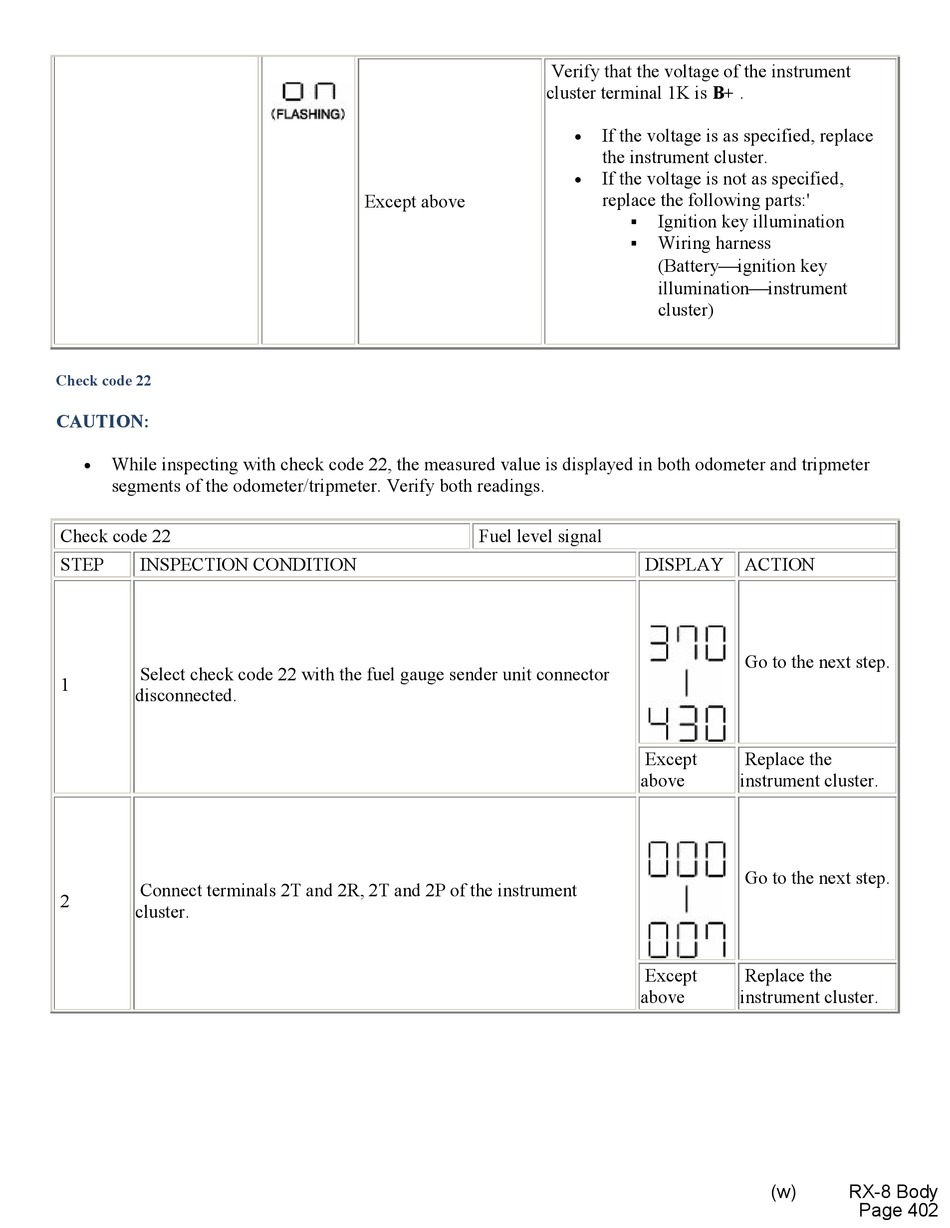

Check code 22
CAUTION:
While inspecting with check code 22, the measured value is displayed in both odometer and tripmeter
•
segments of the odometer/tripmeter. Verify both readings.
Check code 22
STEP INSPECTION CONDITION
Select check code 22 with the fuel gauge sender unit connector
1
disconnected.
Connect terminals 2T and 2R, 2T and 2P of the instrument
2
cluster.
Except above
Fuel level signal
Verify that the voltage of the instrument
cluster terminal 1K is B+ .
If the voltage is as specified, replace
•
the instrument cluster.
If the voltage is not as specified,
•
replace the following parts:'
Ignition key illumination
Wiring harness
(Batteryignition key
illuminationinstrument
cluster)
DISPLAY
Except
above
Except
above
ACTION
Go to the next step.
Replace the
instrument cluster.
Go to the next step.
Replace the
instrument cluster.
