17 Retaining ring

18 Wheel bearing

19 Dust cover

21 Rear knuckle

22 Wheel hub bolt

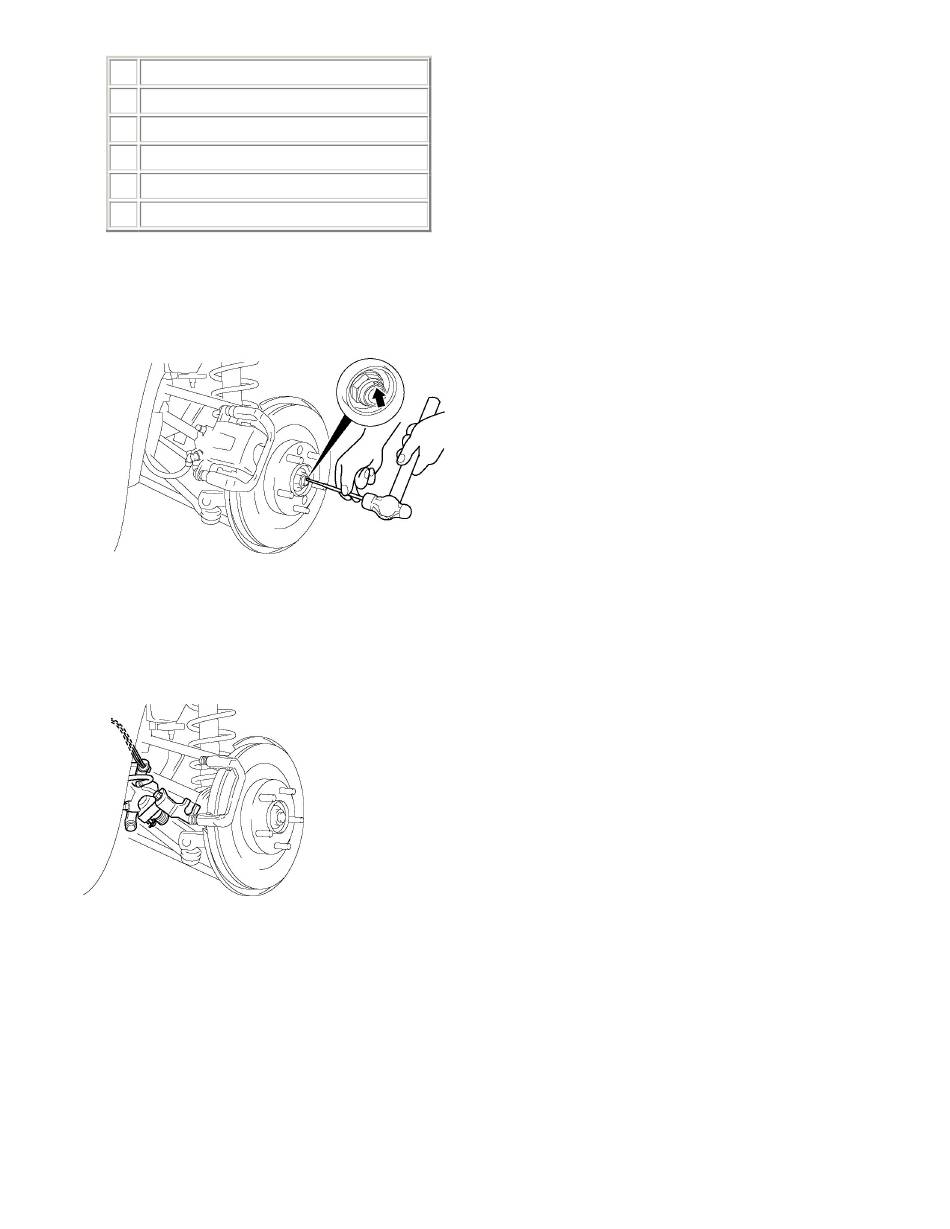

Locknut Removal Note

1. Lock the disc plate by applying the brakes.

2. Knock the crimped portion of the locknut outward using a chisel and a hammer.

3. Remove the locknut.

Brake Caliper Component Removal Note

1. Suspend the brake caliper component using a cable.

Rear Drive shaft Remvoal Note

1. Temporarily install a spare nut onto the end of the rear drive shaft.

2. Tap the nut with a copper hammer to loosen the drive shaft from the wheel hub.
