LCD UNIT

LCD UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Lower panel(See LOWER PANEL REMOVAL/INSTALLATION .)
b. Console(See CONSOLE REMOVAL/INSTALLATION .)
c. Center panel module(See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
d. Center ventilator grille(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)

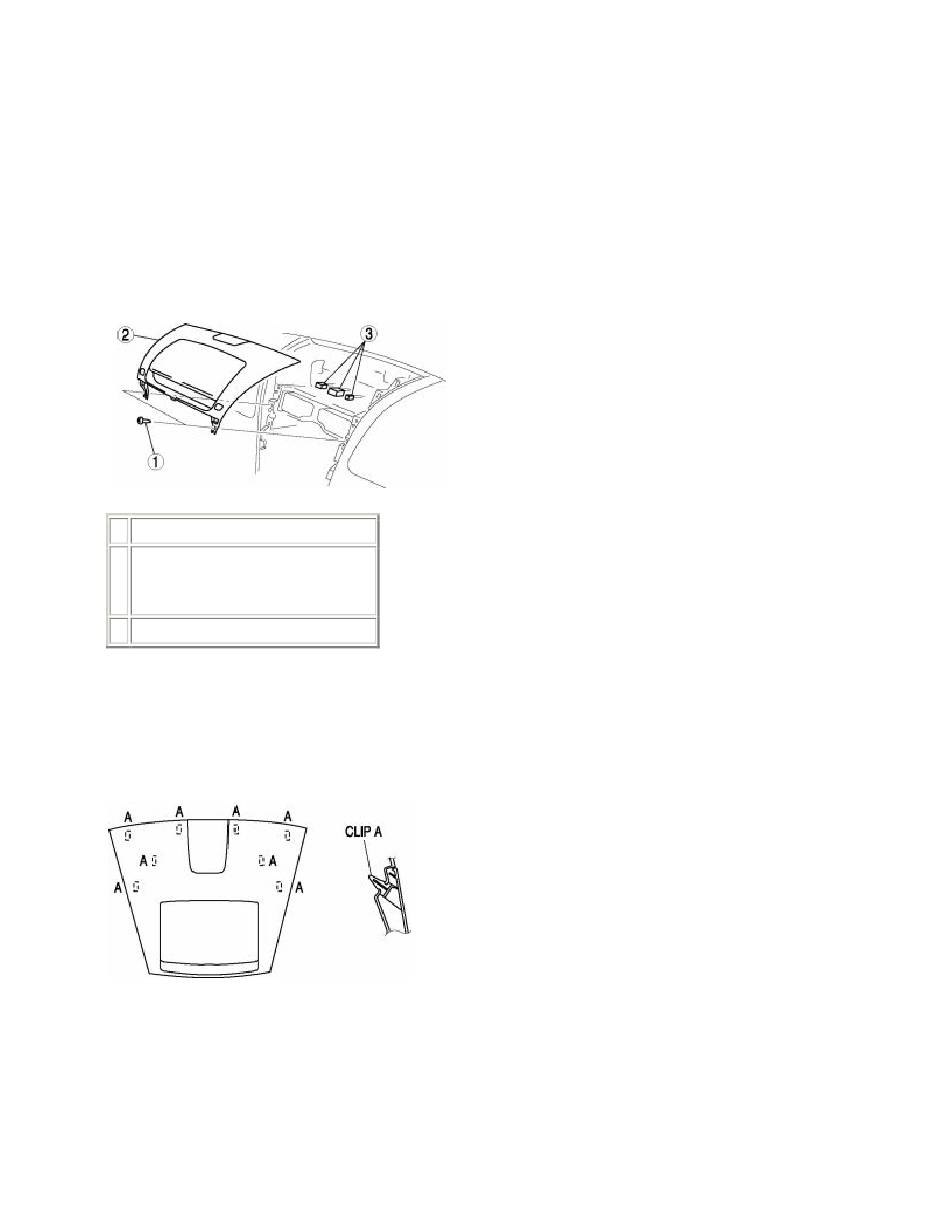

3. Remove in the order indicated in the table.
1 Screw
LCD unit
2
(See LCD Unit Removal Note .)
3 Connector
4. Install in the reverse order of removal.
LCD Unit Removal Note
1. Pull the lower LCD unit outward, detach clip A from the dashboard, and then remove the LCD unit.
