3. Install the caliper.
CALIPER (REAR)

CALIPER (REAR) DISASSEMBLY/ASSEMBLY

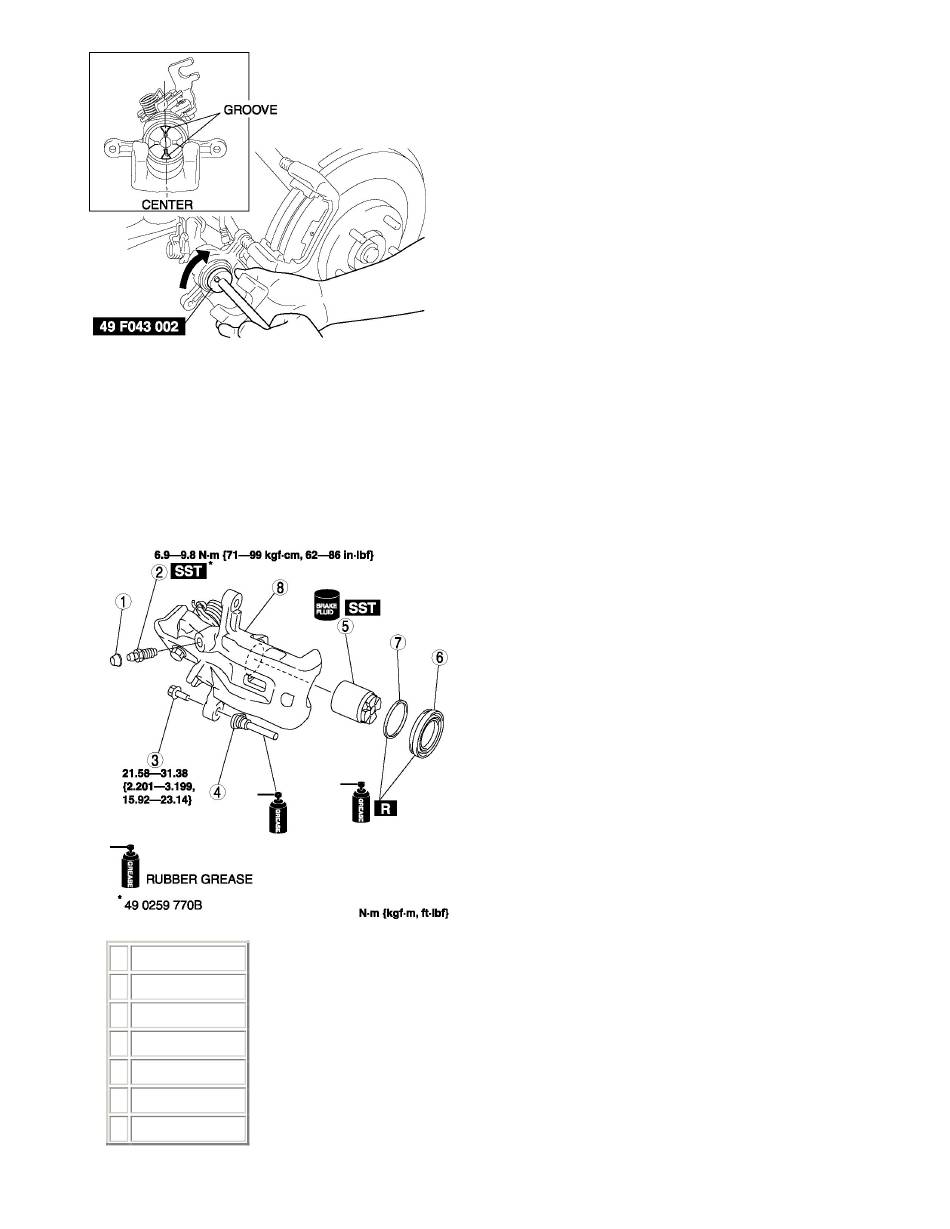

1. Disassemble in the order indicated in the table.
1 Bleeder cap
2 Bleeder screw
3 Bolt
4 Sleeve
5 Piston
6 Dust seal
7 Piston seal
(w)
RX8 - Brakes
Page 28
