SEAT CUSHION WARMER

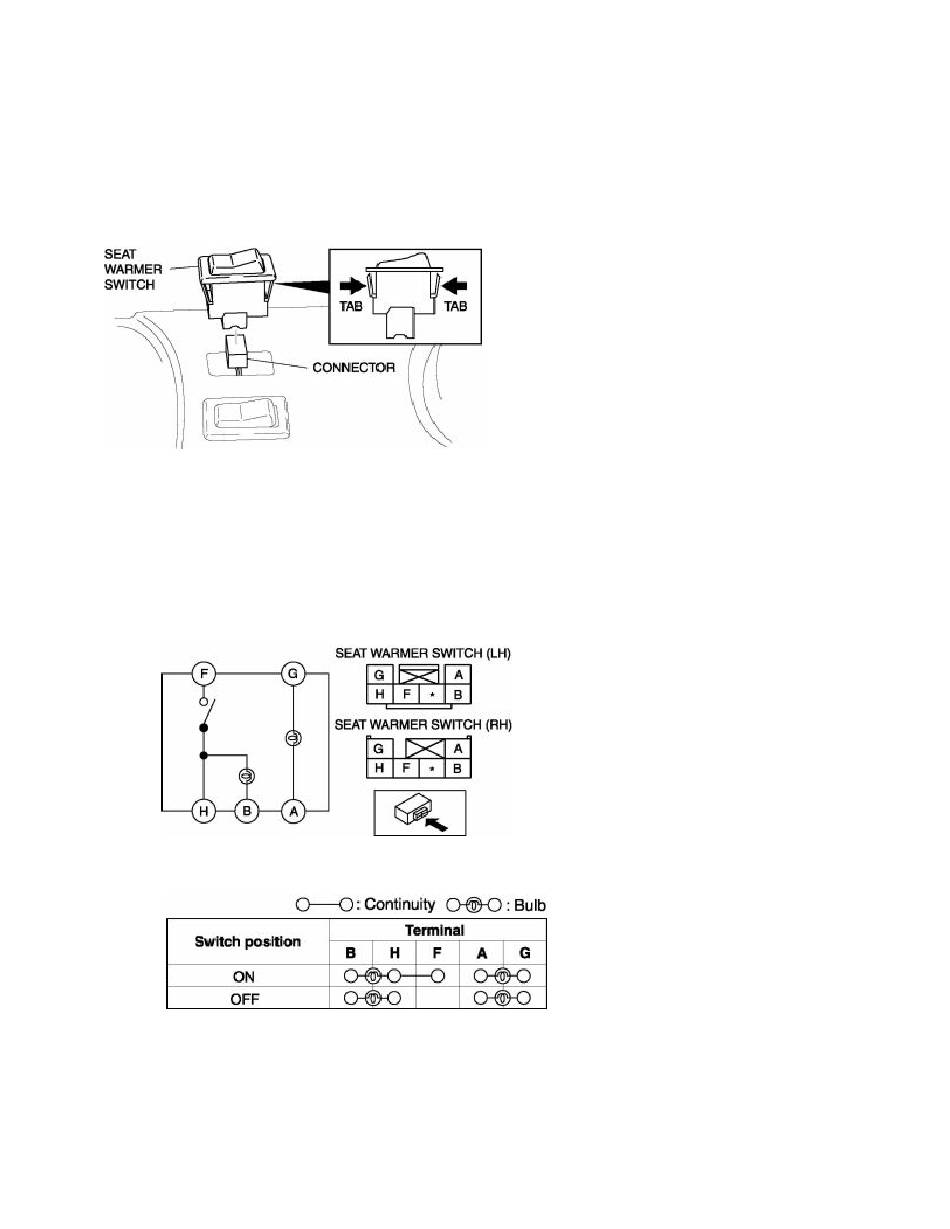

SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the upper panel. (See CONSOLE REMOVAL/INSTALLATION .)

3. Disconnect the connector.

4. Squeeze the tabs of seat warmer switch and pull it outward to remove it.

5. Install in the reverse order of removal.

1. Disconnect the negative battery cable.

2. Verify that the continuity between the seat warmer switch terminals is as indicated in the table.

If not as indicated in the table, replace the seat warmer switch.

SEAT WARMER INSPECTION

1. Remove the front seat.(See FRONT SEAT REMOVAL/INSTALLATION .)

2. Remove the seat cushion trim.(See FRONT SEAT DISASSEMBLY/ASSEMBLY .)

3. While inspecting for continuity between the terminals A and B of the connector, use a dryer to warm the

thermostat of the seat warmer unit on seat cushion.
