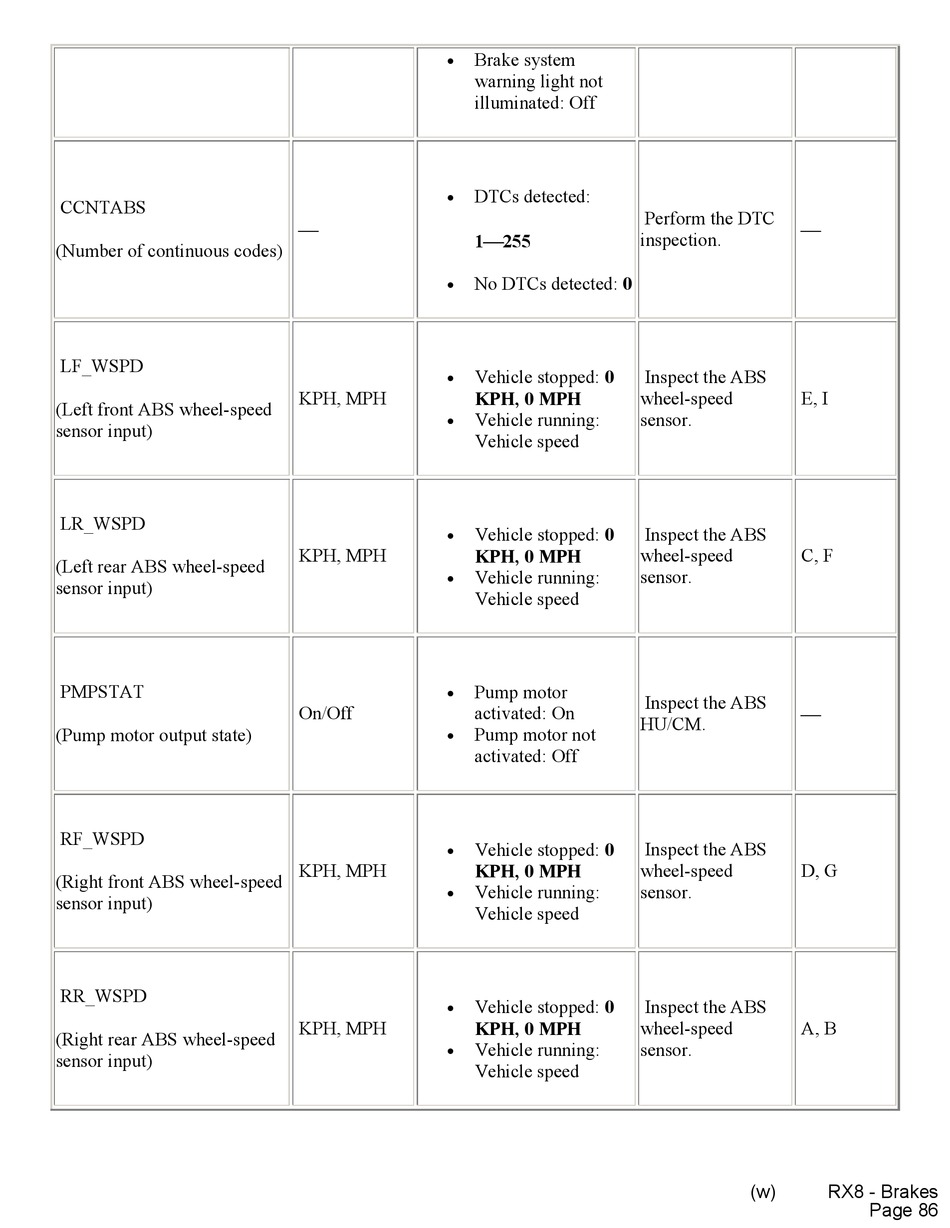

Mazda RX-8 Manual page 1500

CCNTABS
(Number of continuous codes)
LF_WSPD
(Left front ABS wheel-speed
sensor input)
LR_WSPD
(Left rear ABS wheel-speed
sensor input)
PMPSTAT
(Pump motor output state)
RF_WSPD
(Right front ABS wheel-speed
sensor input)
RR_WSPD
(Right rear ABS wheel-speed
sensor input)
Brake system
•
warning light not
illuminated: Off
DTCs detected:
•

1    255
No DTCs detected: 0
•
Vehicle stopped: 0
•
KPH, MPH KPH, 0 MPH
Vehicle running:
•
Vehicle speed
Vehicle stopped: 0
•
KPH, MPH
KPH, 0 MPH
Vehicle running:
•
Vehicle speed
Pump motor
•
On/Off activated: On
Pump motor not
•
activated: Off
Vehicle stopped: 0
•
KPH, MPH
KPH, 0 MPH
Vehicle running:
•
Vehicle speed
Vehicle stopped: 0
•
KPH, MPH KPH, 0 MPH
Vehicle running:
•
Vehicle speed
Perform the DTC

inspection.
Inspect the ABS
wheel-speed E, I
sensor.
Inspect the ABS
wheel-speed C, F
sensor.
Inspect the ABS

HU/CM.
Inspect the ABS
wheel-speed D, G
sensor.
Inspect the ABS
wheel-speed A, B
sensor.
