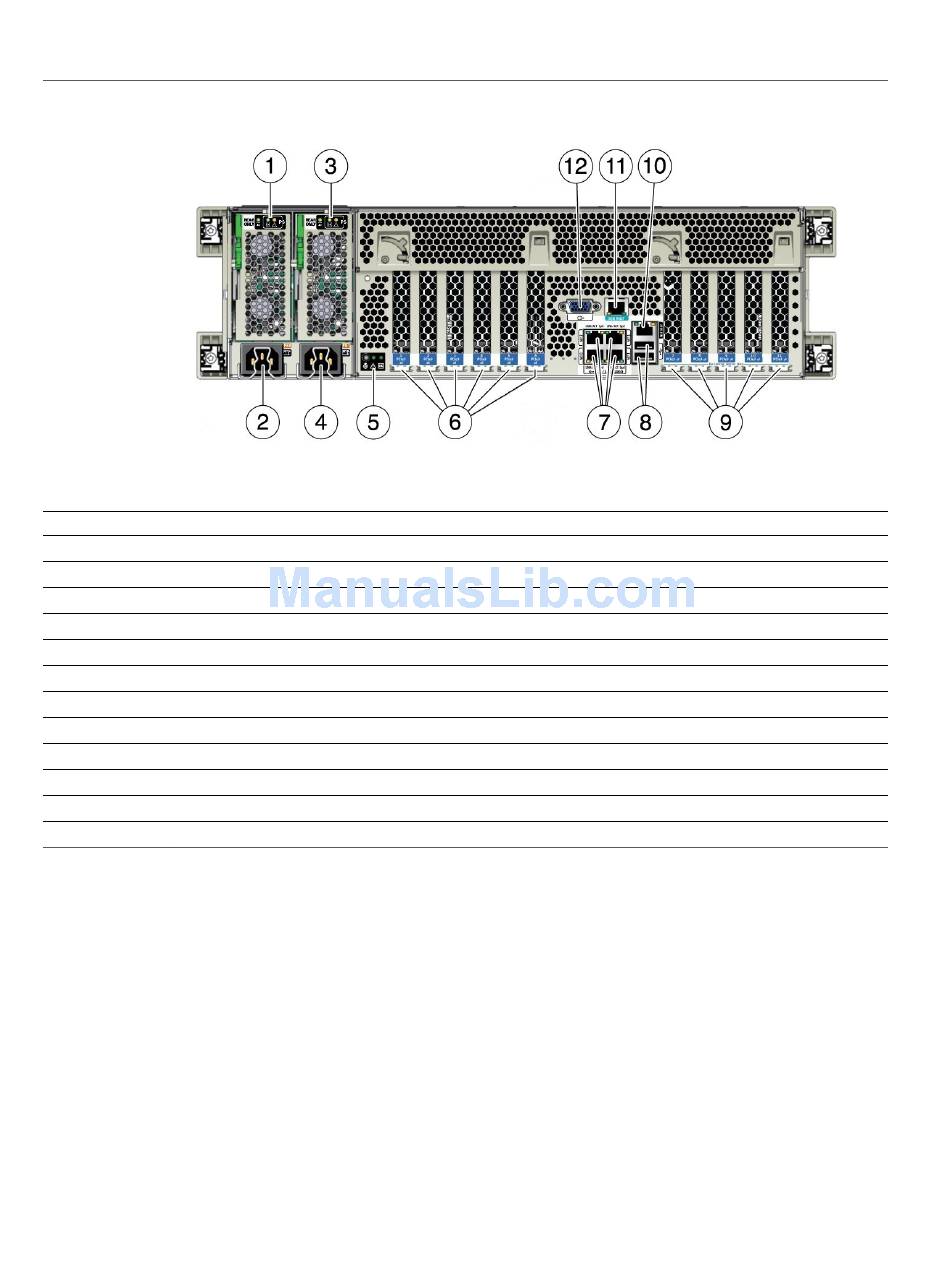

Figure Legend Description
1 Power supply unit (PSU) 0 indicator panel
2 PSU 0 AC inlet
3 PSU 1 indicator panel
4 PSU 1 AC inlet
5 System status indicator panel
6 PCIe card slots 1–6
7 Network (NET) 10 GbE ports: NET0–NET3
8 USB 2.0 connectors (2)
9 PCIe card slots 7–11
10 Service processor (SP) network management (NET MGT) port
11 Serial management (SER MGT)/RJ-45 serial port
12 DB-15 video connector

Server Subsystems Overview

This section provides information about the server subsystems:
"System Block Diagrams" on page 22
■
"Processor Subsystem" on page 23
■
"Memory Subsystem" on page 26
■
"Cooling Subsystem" on page 26
■
"Input/Output (I/O) Subsystem" on page 29
■
"System Management Subsystem" on page 31
■
