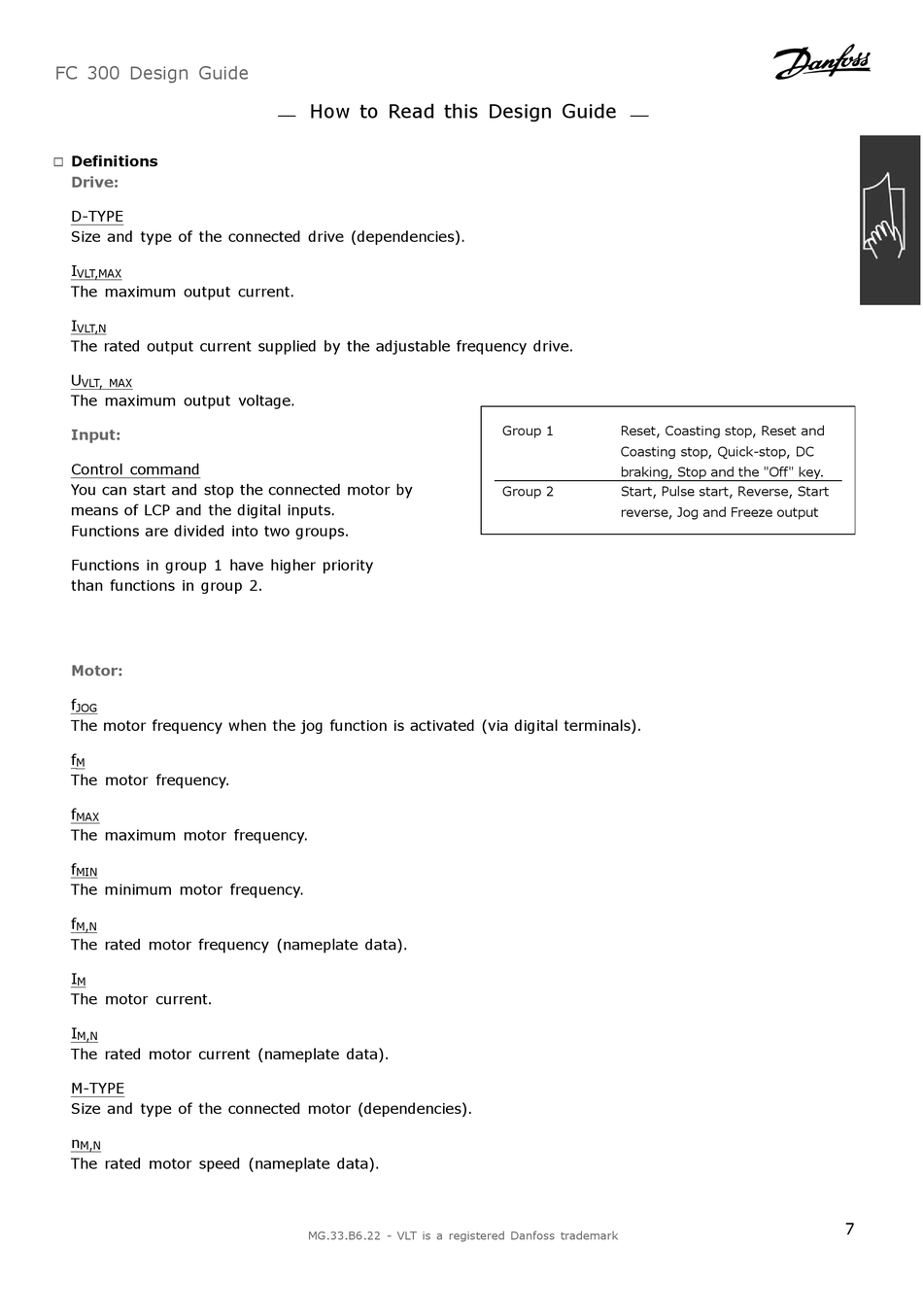

Definitions

"
Drive:
D-TYPE
Size and type of the connected drive (dependencies).
I
VLT,MAX
The maximum output current.
I
VLT,N
The rated output current supplied by the adjustable frequency drive.
U
VLT, MAX
The maximum output voltage.
Input:
Control command
You can start and stop the connected motor by
means of LCP and the digital inputs.
Functions are divided into two groups.
Functions in group 1 have higher priority
than functions in group 2.
Motor:
f
JOG
The motor frequency when the jog function is activated (via digital terminals).
f
M
The motor frequency.
f
MAX
The maximum motor frequency.
f
MIN
The minimum motor frequency.
f
M,N
The rated motor frequency (nameplate data).
I
M
The motor current.
I
M,N
The rated motor current (nameplate data).
M-TYPE
Size and type of the connected motor (dependencies).
n
M,N
The rated motor speed (nameplate data).
How to Read this Design Guide
MG.33.B6.22 - VLT is a registered Danfoss trademark
Group 1 Reset, Coasting stop, Reset and
Coasting stop, Quick-stop, DC
braking, Stop and the "Off" key.
Group 2 Start, Pulse start, Reverse, Start
reverse, Jog and Freeze output
