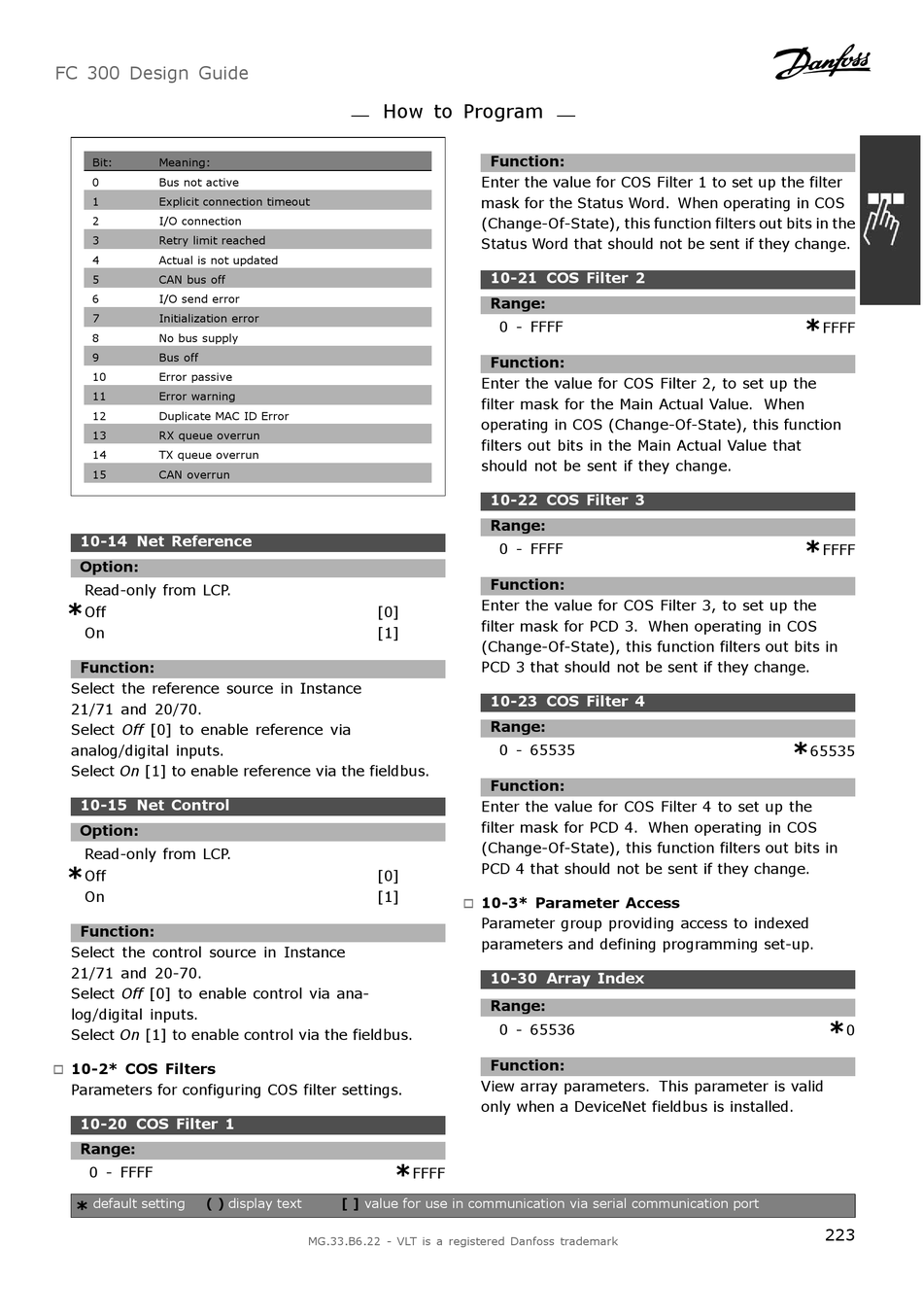

Danfoss FC 300 Design Manual page 223

FC 300 Design Guide
Bit: Meaning:
0 Bus not active
1 Explicit connection timeout
2 I/O connection
3 Retry limit reached
4 Actual is not updated
5 CAN bus off
6 I/O send error
7 Initialization error
8 No bus supply
9 Bus off
10 Error passive
11 Error warning
12 Duplicate MAC ID Error
13 RX queue overrun
14 TX queue overrun
15 CAN overrun
10-14 Net Reference
Option:
Read-only from LCP.
*
Off
On
Function:
Select the reference source in Instance
21/71 and 20/70.
Select Off [0] to enable reference via
analog/digital inputs.
Select On [1] to enable reference via the fieldbus.
10-15 Net Control
Option:
Read-only from LCP.
*
Off
On
Function:
Select the control source in Instance
21/71 and 20-70.
Select Off [0] to enable control via ana-
log/digital inputs.
Select On [1] to enable control via the fieldbus.
10-2* COS Filters
"
Parameters for configuring COS filter settings.
10-20 COS Filter 1
Range:
0 - FFFF
* default setting ( )
How to Program
[0]
[1]
[0]
[1]
*
display text [ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
Function:
Enter the value for COS Filter 1 to set up the filter
mask for the Status Word. When operating in COS
(Change-Of-State), this function filters out bits in the
Status Word that should not be sent if they change.
10-21 COS Filter 2
Range:
0 - FFFF
Function:
Enter the value for COS Filter 2, to set up the
filter mask for the Main Actual Value. When
operating in COS (Change-Of-State), this function
filters out bits in the Main Actual Value that
should not be sent if they change.
10-22 COS Filter 3
Range:
0 - FFFF
Function:
Enter the value for COS Filter 3, to set up the
filter mask for PCD 3. When operating in COS
(Change-Of-State), this function filters out bits in
PCD 3 that should not be sent if they change.
10-23 COS Filter 4
Range:
0 - 65535
Function:
Enter the value for COS Filter 4 to set up the
filter mask for PCD 4. When operating in COS
(Change-Of-State), this function filters out bits in
PCD 4 that should not be sent if they change.
10-3* Parameter Access
"
Parameter group providing access to indexed
parameters and defining programming set-up.
10-30 Array Index
Range:
0 - 65536
Function:
View array parameters. This parameter is valid
only when a DeviceNet fieldbus is installed.
FFFF
*
FFFF
*
FFFF
*
65535
*
0
