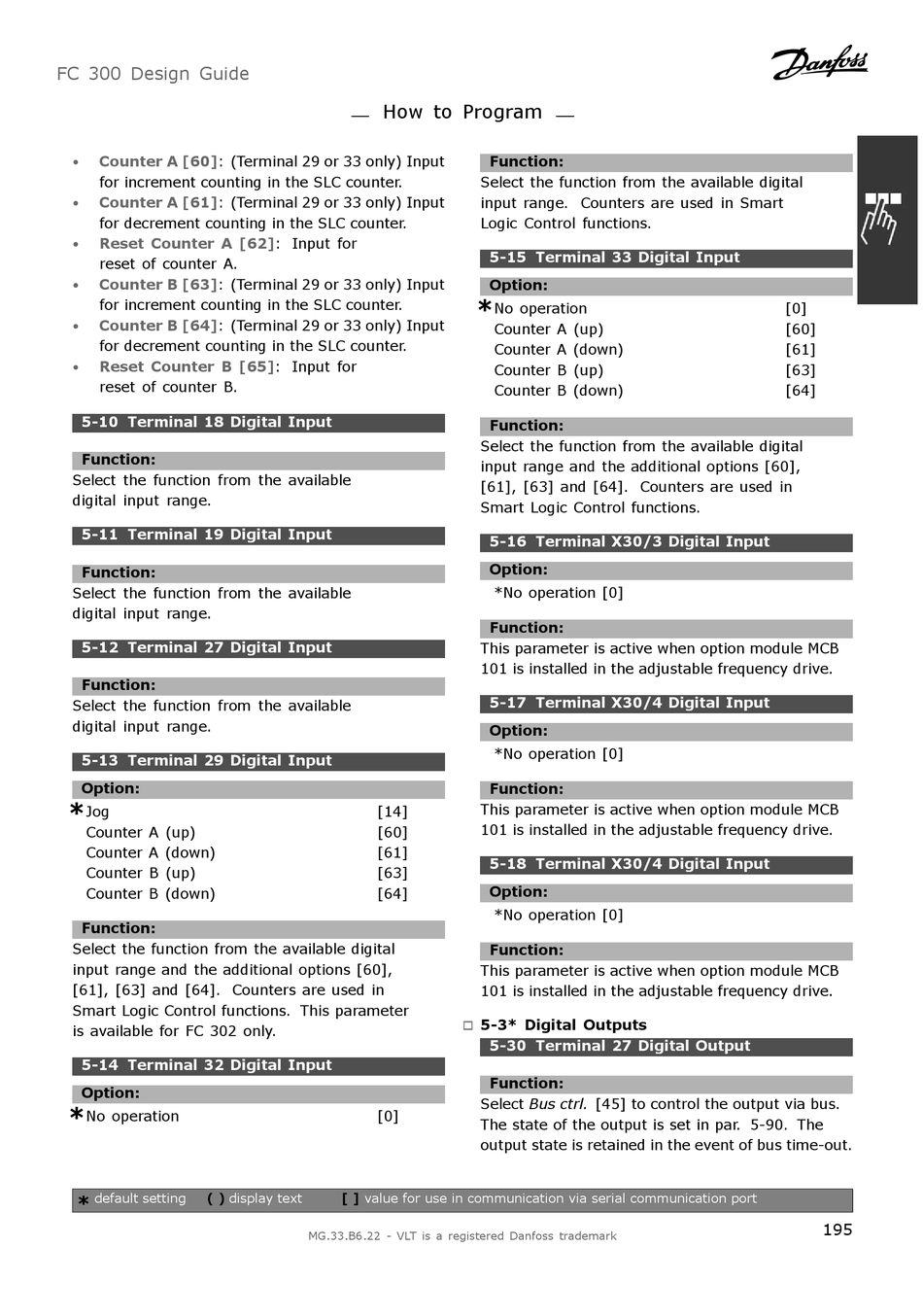

Danfoss FC 300 Design Manual page 195

FC 300 Design Guide
Counter A [60]: (Terminal 29 or 33 only) Input
•
for increment counting in the SLC counter.
Counter A [61]: (Terminal 29 or 33 only) Input
•
for decrement counting in the SLC counter.
Reset Counter A
•
reset of counter A.
Counter B [63]: (Terminal 29 or 33 only) Input
•
for increment counting in the SLC counter.
Counter B [64]: (Terminal 29 or 33 only) Input
•
for decrement counting in the SLC counter.
Reset Counter B
•
reset of counter B.
5-10 Terminal 18 Digital Input
Function:
Select the function from the available
digital input range.
5-11 Terminal 19 Digital Input
Function:
Select the function from the available
digital input range.
5-12 Terminal 27 Digital Input
Function:
Select the function from the available
digital input range.
5-13 Terminal 29 Digital Input
Option:
*
Jog
Counter A (up)
Counter A (down)
Counter B (up)
Counter B (down)
Function:
Select the function from the available digital
input range and the additional options [60],
[61], [63] and [64]. Counters are used in
Smart Logic Control functions. This parameter
is available for FC 302 only.
5-14 Terminal 32 Digital Input
Option:
*
No operation
* default setting ( ) display text
How to Program
[62]: Input for
[65]: Input for
[14]
[60]
[61]
[63]
[64]
[0]
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
Function:
Select the function from the available digital
input range. Counters are used in Smart
Logic Control functions.
5-15 Terminal 33 Digital Input
Option:
*
No operation
Counter A (up)
Counter A (down)
Counter B (up)
Counter B (down)
Function:
Select the function from the available digital
input range and the additional options [60],
[61], [63] and [64]. Counters are used in
Smart Logic Control functions.
5-16 Terminal X30/3 Digital Input
Option:
*No operation [0]
Function:
This parameter is active when option module MCB
101 is installed in the adjustable frequency drive.
5-17 Terminal X30/4 Digital Input
Option:
*No operation [0]
Function:
This parameter is active when option module MCB
101 is installed in the adjustable frequency drive.
5-18 Terminal X30/4 Digital Input
Option:
*No operation [0]
Function:
This parameter is active when option module MCB
101 is installed in the adjustable frequency drive.
5-3* Digital Outputs
"
5-30 Terminal 27 Digital Output
Function:
Select Bus ctrl. [45] to control the output via bus.
The state of the output is set in par. 5-90. The
output state is retained in the event of bus time-out.
[0]
[60]
[61]
[63]
[64]
