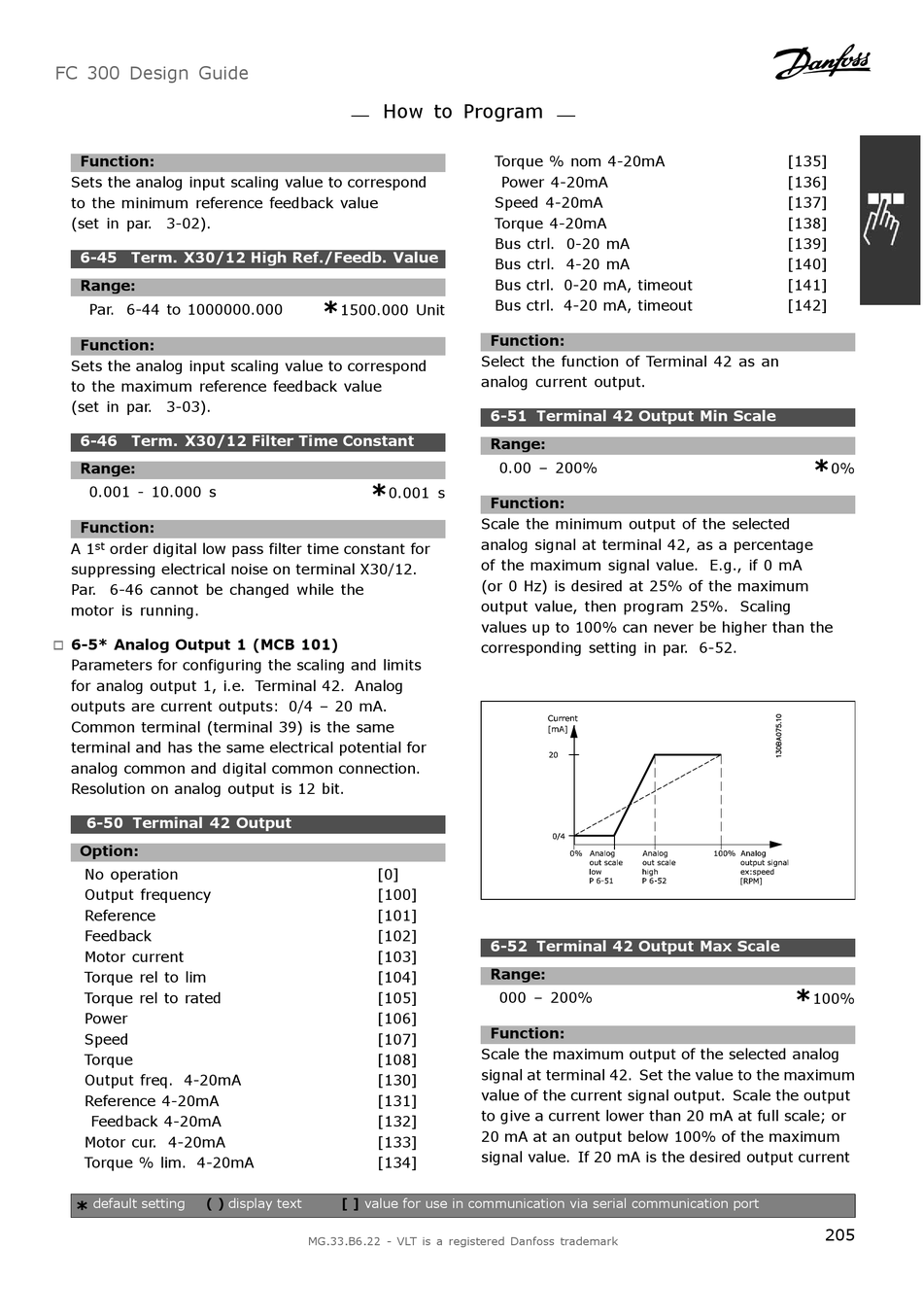

FC 300 Design Guide
Function:
Sets the analog input scaling value to correspond
to the minimum reference feedback value
(set in par. 3-02).
6-45 Term. X30/12 High Ref./Feedb. Value
Range:
Par. 6-44 to 1000000.000
Function:
Sets the analog input scaling value to correspond
to the maximum reference feedback value
(set in par. 3-03).
6-46 Term. X30/12 Filter Time Constant
Range:
0.001 - 10.000 s
Function:
st
A 1 order digital low pass filter time constant for
suppressing electrical noise on terminal X30/12.
Par. 6-46 cannot be changed while the
motor is running.
6-5* Analog Output 1 (MCB 101)
"
Parameters for configuring the scaling and limits
for analog output 1, i.e. Terminal 42. Analog
outputs are current outputs: 0/4 – 20 mA.
Common terminal (terminal 39) is the same
terminal and has the same electrical potential for
analog common and digital common connection.
Resolution on analog output is 12 bit.
6-50 Terminal 42 Output
Option:
No operation
Output frequency
Reference
Feedback
Motor current
Torque rel to lim
Torque rel to rated
Power
Speed
Torque
Output freq. 4-20mA
Reference 4-20mA
Feedback 4-20mA
Motor cur. 4-20mA
Torque % lim. 4-20mA
* default setting ( )
How to Program
*
1500.000 Unit
*
0.001 s
[0]
[100]
[101]
[102]
[103]
[104]
[105]
[106]
[107]
[108]
[130]
[131]
[132]
[133]
[134]
display text [ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
Torque % nom 4-20mA
Power 4-20mA
Speed 4-20mA
Torque 4-20mA
Bus ctrl. 0-20 mA
Bus ctrl. 4-20 mA
Bus ctrl. 0-20 mA, timeout
Bus ctrl. 4-20 mA, timeout
Function:
Select the function of Terminal 42 as an
analog current output.
6-51 Terminal 42 Output Min Scale
Range:
0.00 – 200%
Function:
Scale the minimum output of the selected
analog signal at terminal 42, as a percentage
of the maximum signal value. E.g., if 0 mA
(or 0 Hz) is desired at 25% of the maximum
output value, then program 25%. Scaling
values up to 100% can never be higher than the
corresponding setting in par. 6-52.
6-52 Terminal 42 Output Max Scale
Range:
000 – 200%
Function:
Scale the maximum output of the selected analog
signal at terminal 42. Set the value to the maximum
value of the current signal output. Scale the output
to give a current lower than 20 mA at full scale; or
20 mA at an output below 100% of the maximum
signal value. If 20 mA is the desired output current
[135]
[136]
[137]
[138]
[139]
[140]
[141]
[142]
*
0%
*
100%
