FC 300 Design Guide

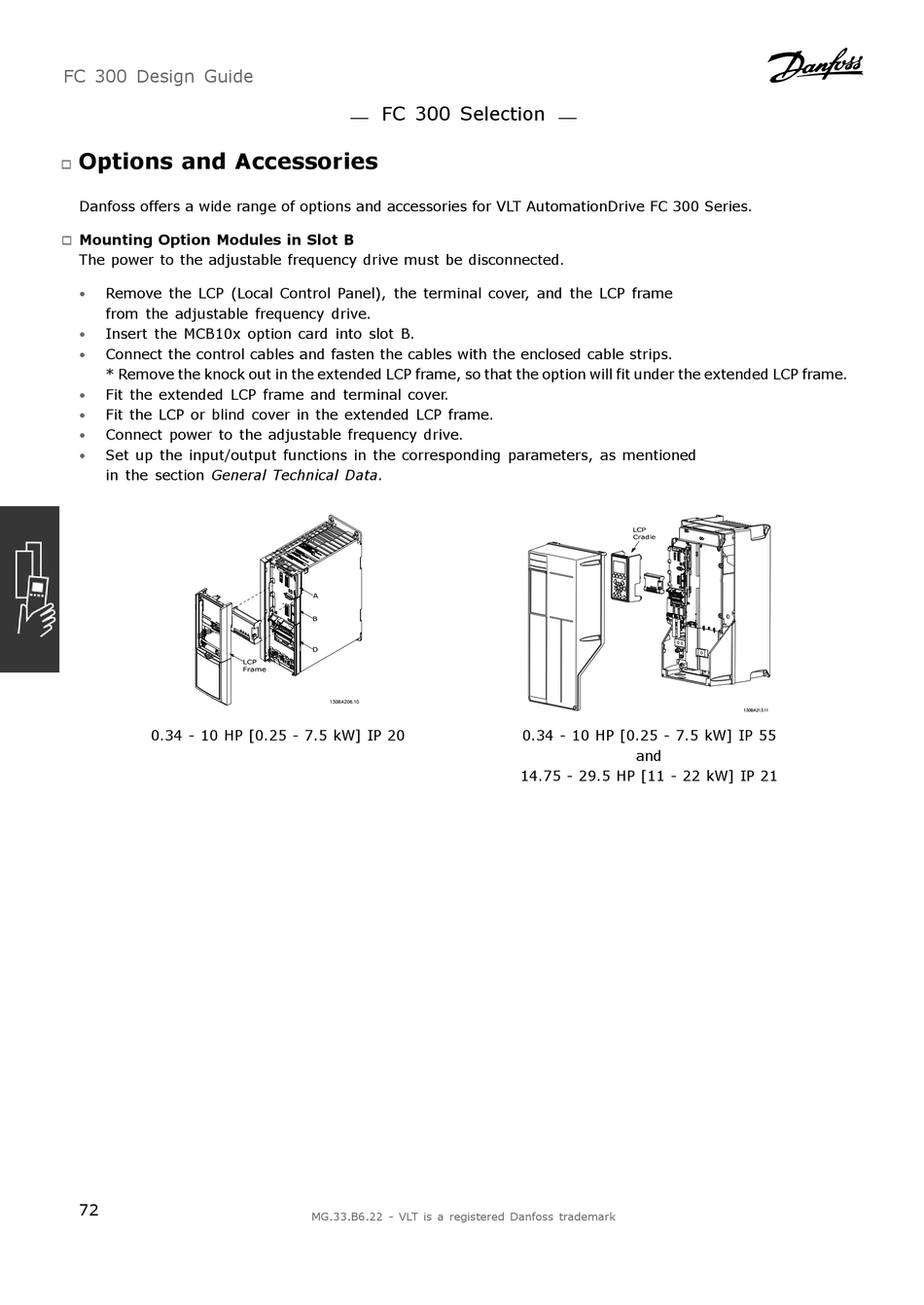

Options and Accessories

"
Danfoss offers a wide range of options and accessories for VLT AutomationDrive FC 300 Series.

Mounting Option Modules in Slot B

"
The power to the adjustable frequency drive must be disconnected.
Remove the LCP (Local Control Panel), the terminal cover, and the LCP frame
•
from the adjustable frequency drive.
• Insert the MCB10x option card into slot B.
Connect the control cables and fasten the cables with the enclosed cable strips.
•
* Remove the knock out in the extended LCP frame, so that the option will fit under the extended LCP frame.
Fit the extended LCP frame and terminal cover.
•
• Fit the LCP or blind cover in the extended LCP frame.
Connect power to the adjustable frequency drive.
•
Set up the input/output functions in the corresponding parameters, as mentioned
•
in the section General Technical Data.
0.34 - 10 HP [0.25 - 7.5 kW] IP 20
72
FC 300 Selection
MG.33.B6.22 - VLT is a registered Danfoss trademark
0.34 - 10 HP [0.25 - 7.5 kW] IP 55
and
14.75 - 29.5 HP [11 - 22 kW] IP 21
