FC 300 Design Guide

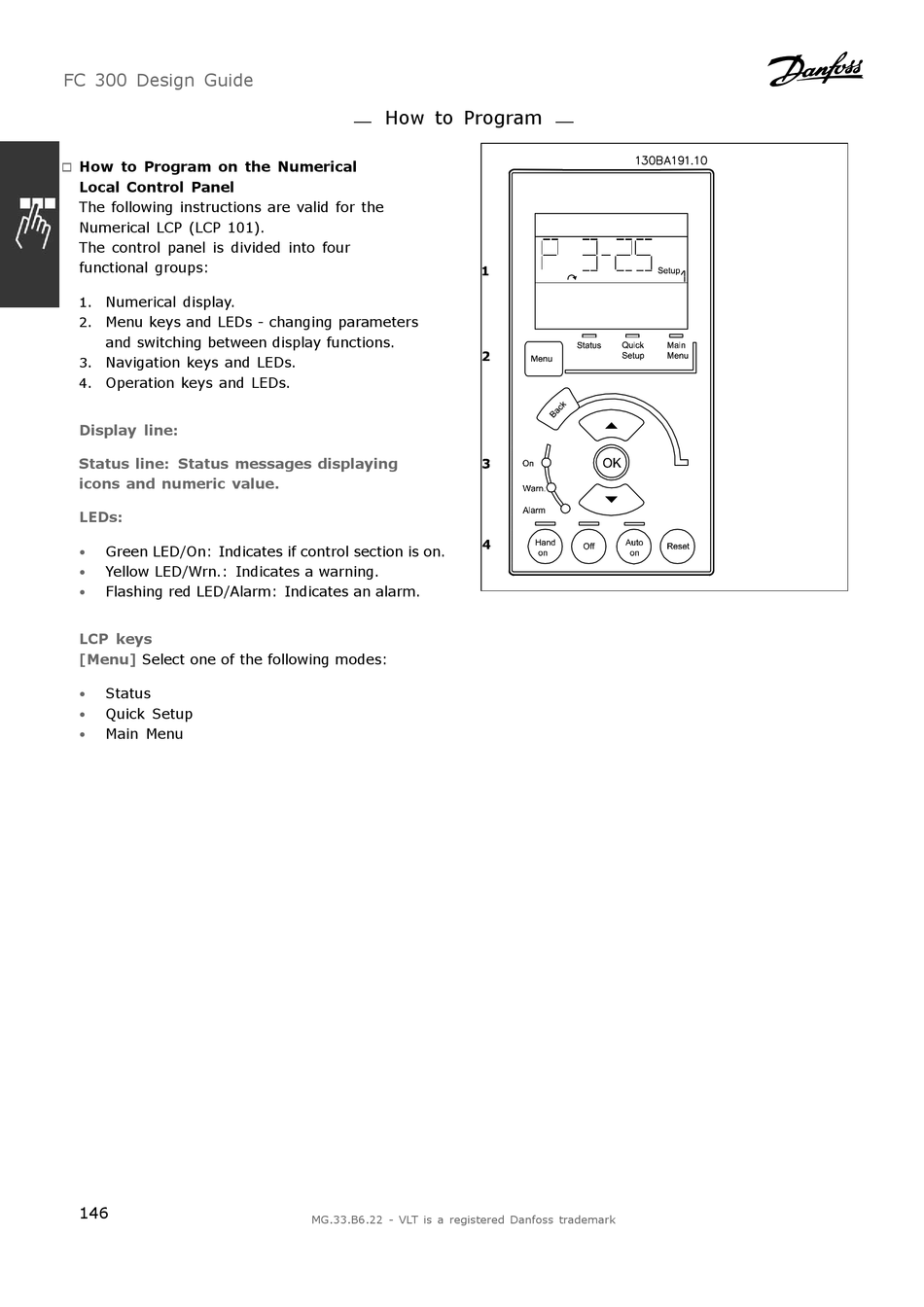

How to Program on the Numerical
"
Local Control Panel
The following instructions are valid for the
Numerical LCP (LCP 101).
The control panel is divided into four
functional groups:
Numerical display.
1.
2. Menu keys and LEDs - changing parameters
and switching between display functions.
Navigation keys and LEDs.
3.
Operation keys and LEDs.
4.
Display line:
Status line: Status messages displaying
icons and numeric value.
LEDs:
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn.: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
•
LCP keys
[Menu] Select one of the following modes:
• Status
Quick Setup
•
Main Menu
•
146
How to Program
