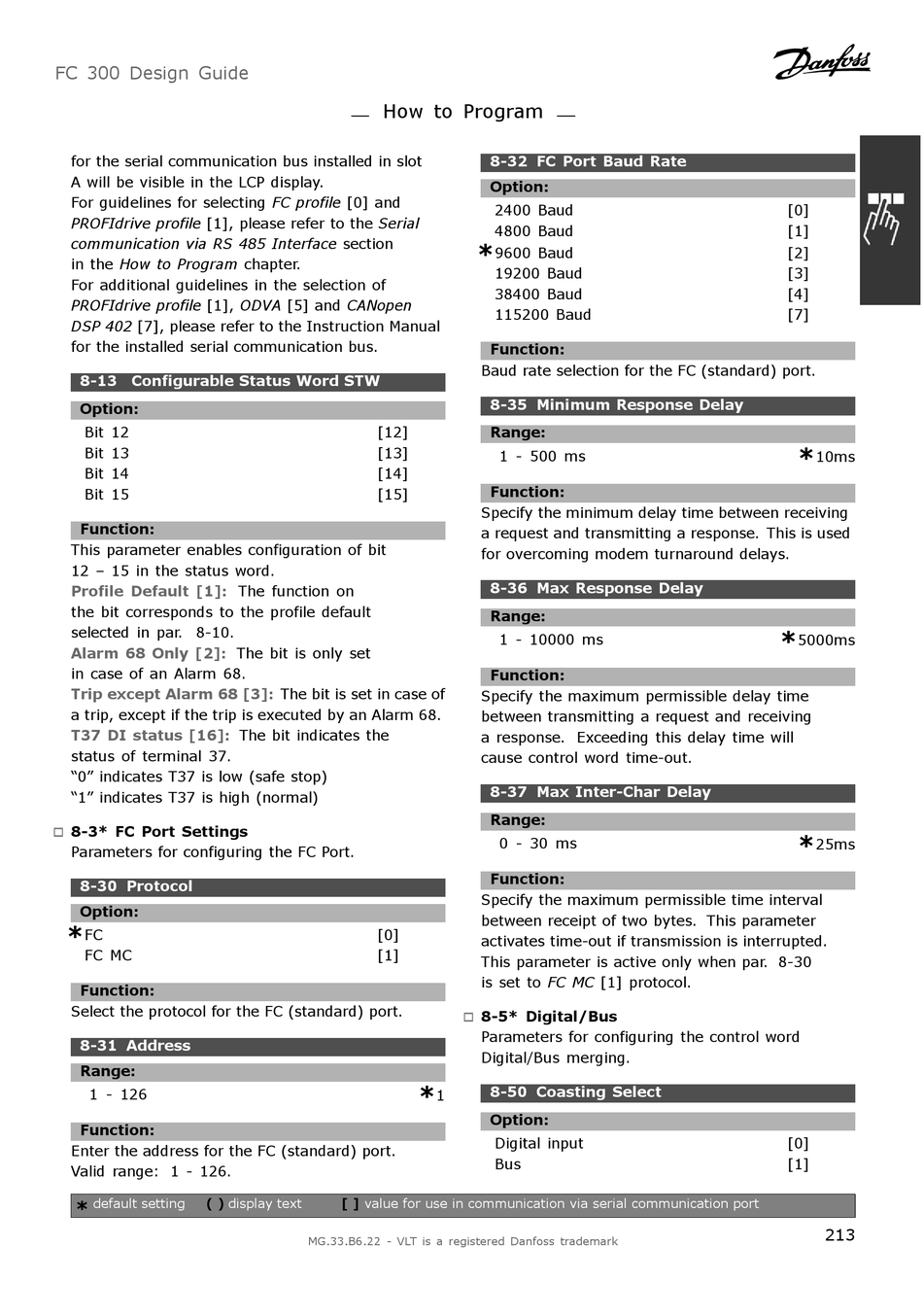

Danfoss FC 300 Design Manual page 213

FC 300 Design Guide
for the serial communication bus installed in slot
A will be visible in the LCP display.
For guidelines for selecting FC profile [0] and
PROFIdrive profile [1], please refer to the Serial
communication via RS 485 Interface section
in the How to Program chapter.
For additional guidelines in the selection of
PROFIdrive profile [1], ODVA [5] and CANopen
DSP 402 [7], please refer to the Instruction Manual
for the installed serial communication bus.
8-13 Configurable Status Word STW
Option:
Bit 12
Bit 13
Bit 14
Bit 15
Function:
This parameter enables configuration of bit
12 – 15 in the status word.
Profile Default [1]:
the bit corresponds to the profile default
selected in par. 8-10.
Alarm 68 Only [2]:
in case of an Alarm 68.
Trip except Alarm 68 [3]:
a trip, except if the trip is executed by an Alarm 68.
T37 DI status [16]:
status of terminal 37.
"0" indicates T37 is low (safe stop)
"1" indicates T37 is high (normal)
8-3* FC Port Settings
"
Parameters for configuring the FC Port.
8-30 Protocol
Option:
*
FC
FC MC
Function:
Select the protocol for the FC (standard) port.
8-31 Address
Range:
1 - 126
Function:
Enter the address for the FC (standard) port.
Valid range: 1 - 126.
* default setting ( )
How to Program
[12]
[13]
[14]
[15]
The function on
The bit is only set
The bit is set in case of
The bit indicates the
[0]
[1]
display text [ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
8-32 FC Port Baud Rate
Option:
2400 Baud
4800 Baud
*
9600 Baud
19200 Baud
38400 Baud
115200 Baud
Function:
Baud rate selection for the FC (standard) port.
8-35 Minimum Response Delay
Range:
1 - 500 ms
Function:
Specify the minimum delay time between receiving
a request and transmitting a response. This is used
for overcoming modem turnaround delays.
8-36 Max Response Delay
Range:
1 - 10000 ms
Function:
Specify the maximum permissible delay time
between transmitting a request and receiving
a response. Exceeding this delay time will
cause control word time-out.
8-37 Max Inter-Char Delay
Range:
0 - 30 ms
Function:
Specify the maximum permissible time interval
between receipt of two bytes. This parameter
activates time-out if transmission is interrupted.
This parameter is active only when par. 8-30
is set to FC MC [1] protocol.
8-5* Digital/Bus
"
Parameters for configuring the control word
Digital/Bus merging.
*
8-50 Coasting Select
1
Option:
Digital input
Bus
[0]
[1]
[2]
[3]
[4]
[7]
*
10ms
*
5000ms
*
25ms
[0]
[1]
