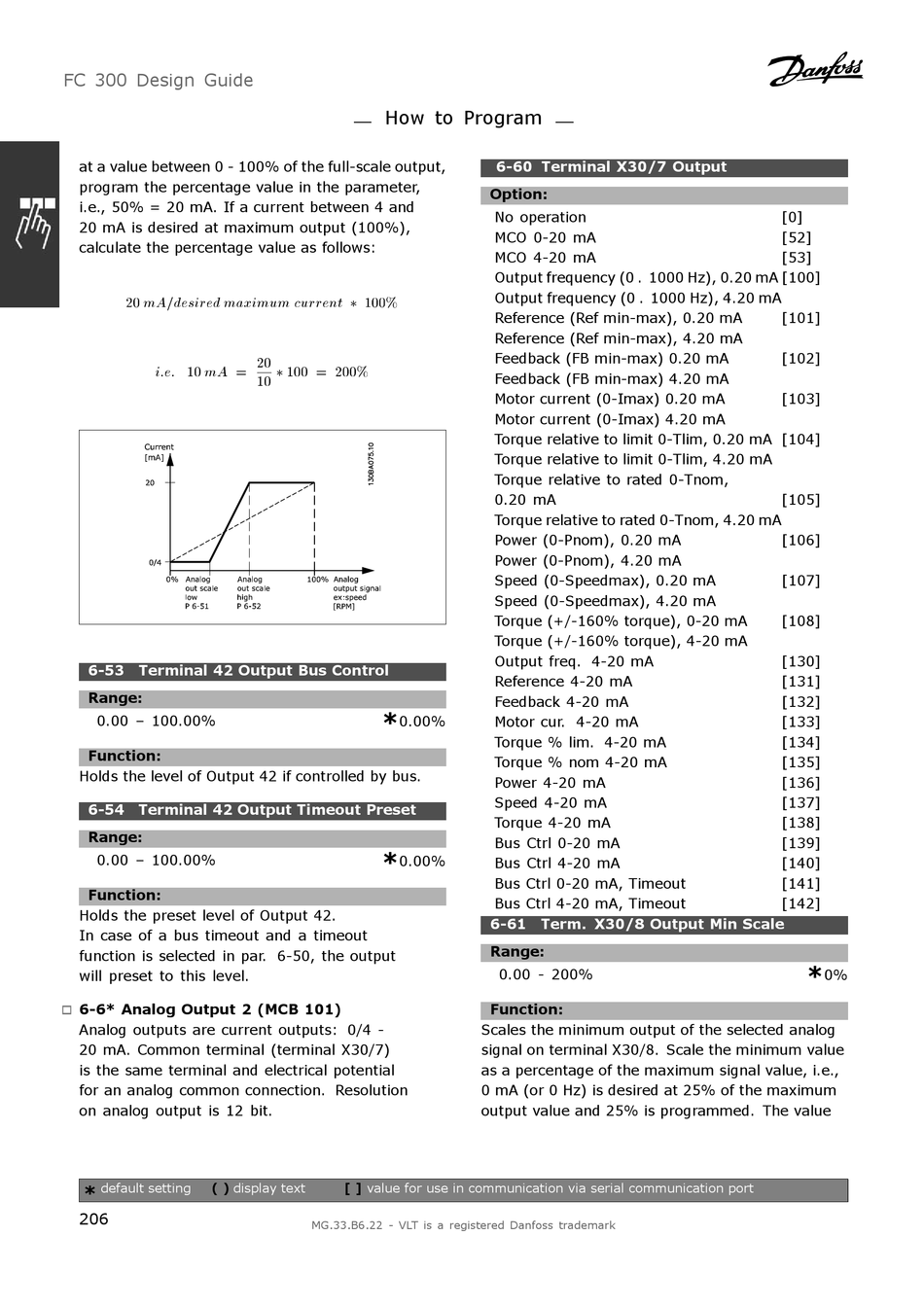

FC 300 Design Guide
at a value between 0 - 100% of the full-scale output,
program the percentage value in the parameter,
i.e., 50% = 20 mA. If a current between 4 and
20 mA is desired at maximum output (100%),
calculate the percentage value as follows:
6-53 Terminal 42 Output Bus Control
Range:
0.00 – 100.00%
Function:
Holds the level of Output 42 if controlled by bus.
6-54 Terminal 42 Output Timeout Preset
Range:
0.00 – 100.00%
Function:
Holds the preset level of Output 42.
In case of a bus timeout and a timeout
function is selected in par. 6-50, the output
will preset to this level.
6-6* Analog Output 2 (MCB 101)
"
Analog outputs are current outputs: 0/4 -
20 mA. Common terminal (terminal X30/7)
is the same terminal and electrical potential
for an analog common connection. Resolution
on analog output is 12 bit.
default setting ( ) display text
*
206
How to Program
*
0.00%
*
0.00%
Scales the minimum output of the selected analog
signal on terminal X30/8. Scale the minimum value
as a percentage of the maximum signal value, i.e.,
0 mA (or 0 Hz) is desired at 25% of the maximum
output value and 25% is programmed. The value
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
6-60 Terminal X30/7 Output
Option:
No operation
MCO 0-20 mA
MCO 4-20 mA
Output frequency (0 . 1000 Hz), 0.20 mA [100]
Output frequency (0 . 1000 Hz), 4.20 mA
Reference (Ref min-max), 0.20 mA
Reference (Ref min-max), 4.20 mA
Feedback (FB min-max) 0.20 mA
Feedback (FB min-max) 4.20 mA
Motor current (0-Imax) 0.20 mA
Motor current (0-Imax) 4.20 mA
Torque relative to limit 0-Tlim, 0.20 mA [104]
Torque relative to limit 0-Tlim, 4.20 mA
Torque relative to rated 0-Tnom,
0.20 mA
Torque relative to rated 0-Tnom, 4.20 mA
Power (0-Pnom), 0.20 mA
Power (0-Pnom), 4.20 mA
Speed (0-Speedmax), 0.20 mA
Speed (0-Speedmax), 4.20 mA
Torque (+/-160% torque), 0-20 mA
Torque (+/-160% torque), 4-20 mA
Output freq. 4-20 mA
Reference 4-20 mA
Feedback 4-20 mA
Motor cur. 4-20 mA
Torque % lim. 4-20 mA
Torque % nom 4-20 mA
Power 4-20 mA
Speed 4-20 mA
Torque 4-20 mA
Bus Ctrl 0-20 mA
Bus Ctrl 4-20 mA
Bus Ctrl 0-20 mA, Timeout
Bus Ctrl 4-20 mA, Timeout
6-61 Term. X30/8 Output Min Scale
Range:
0.00 - 200%
Function:
[0]
[52]
[53]
[101]
[102]
[103]
[105]
[106]
[107]
[108]
[130]
[131]
[132]
[133]
[134]
[135]
[136]
[137]
[138]
[139]
[140]
[141]
[142]
*
0%
