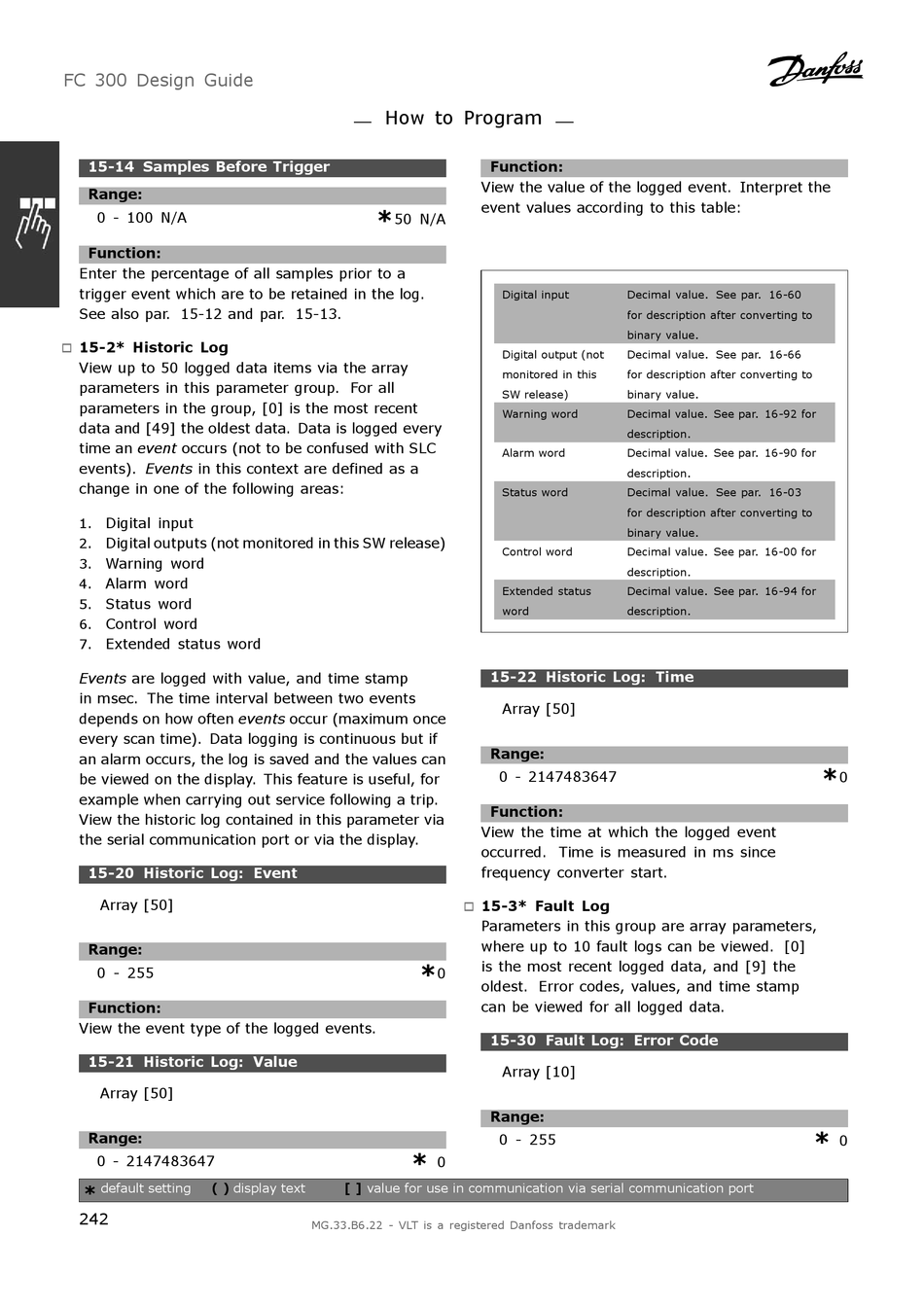

Danfoss FC 300 Design Manual page 242

FC 300 Design Guide
15-14 Samples Before Trigger
Range:
0 - 100 N/A
Function:
Enter the percentage of all samples prior to a
trigger event which are to be retained in the log.
See also par. 15-12 and par. 15-13.
15-2* Historic Log
"
View up to 50 logged data items via the array
parameters in this parameter group. For all
parameters in the group, [0] is the most recent
data and [49] the oldest data. Data is logged every
time an event occurs (not to be confused with SLC
events). Events in this context are defined as a
change in one of the following areas:
Digital input
1.
Digital outputs (not monitored in this SW release)
2.
3. Warning word
4. Alarm word
Status word
5.
Control word
6.
Extended status word
7.
Events are logged with value, and time stamp
in msec. The time interval between two events
depends on how often events occur (maximum once
every scan time). Data logging is continuous but if
an alarm occurs, the log is saved and the values can
be viewed on the display. This feature is useful, for
example when carrying out service following a trip.
View the historic log contained in this parameter via
the serial communication port or via the display.
15-20 Historic Log: Event
Array [50]
Range:
0 - 255
Function:
View the event type of the logged events.
15-21 Historic Log: Value
Array [50]
Range:
0 - 2147483647
default setting ( ) display text
*
242
How to Program
View the value of the logged event. Interpret the
event values according to this table:
*
50 N/A
View the time at which the logged event
occurred. Time is measured in ms since
frequency converter start.
15-3* Fault Log
"
Parameters in this group are array parameters,
where up to 10 fault logs can be viewed. [0]
is the most recent logged data, and [9] the
*
0
oldest. Error codes, values, and time stamp
can be viewed for all logged data.
*
0
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
Function:
Digital input Decimal value. See par. 16-60
for description after converting to
binary value.
Digital output (not Decimal value. See par. 16-66
monitored in this for description after converting to
SW release) binary value.
Warning word Decimal value. See par. 16-92 for
description.
Alarm word Decimal value. See par. 16-90 for
description.
Status word Decimal value. See par. 16-03
for description after converting to
binary value.
Control word Decimal value. See par. 16-00 for
description.
Extended status Decimal value. See par. 16-94 for
word description.
15-22 Historic Log: Time
Array [50]
Range:
0 - 2147483647
Function:
15-30 Fault Log: Error Code
Array [10]
Range:
0 - 255
*
0
*
0
