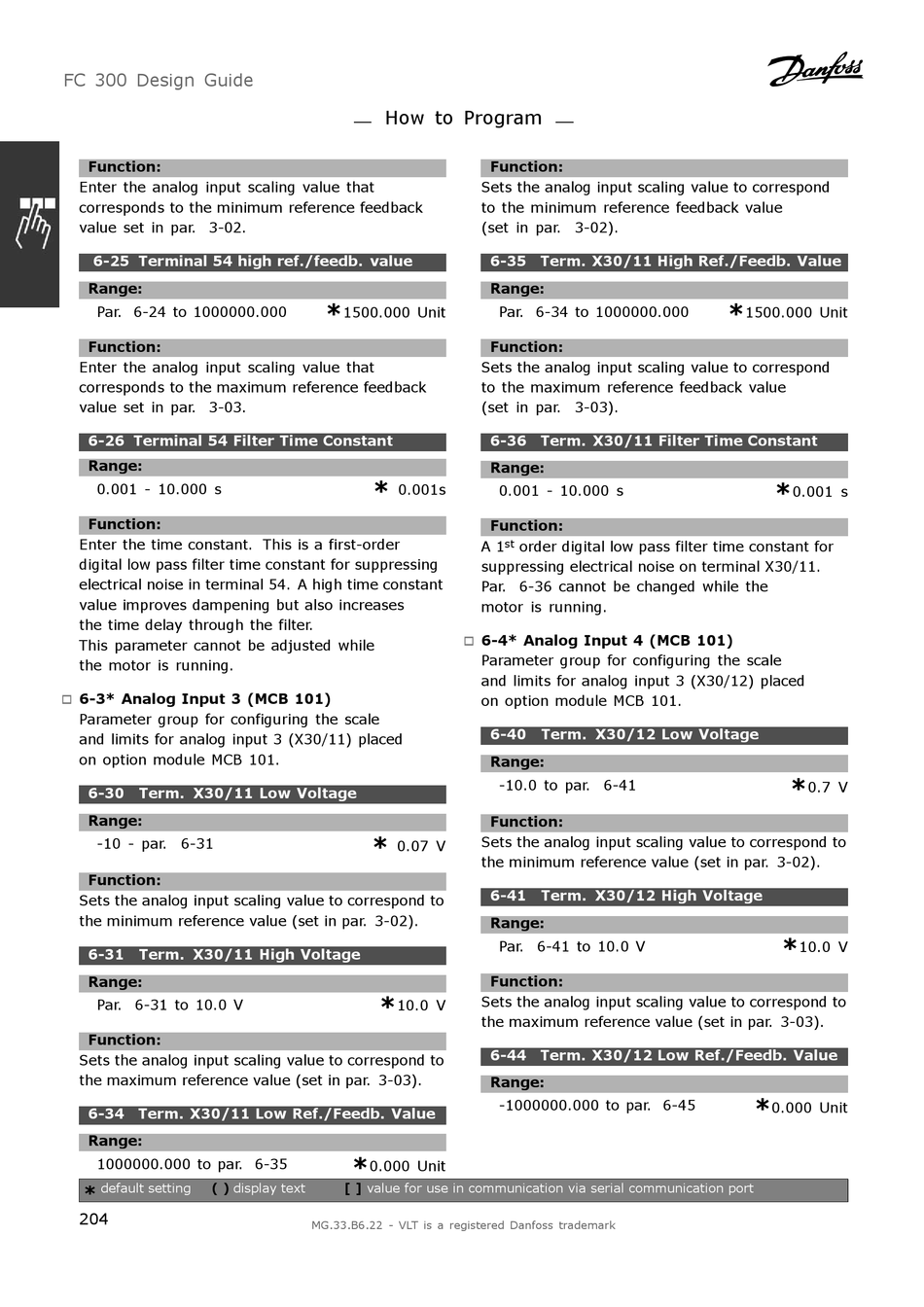

Danfoss FC 300 Design Manual page 204

FC 300 Design Guide
Function:
Enter the analog input scaling value that
corresponds to the minimum reference feedback
value set in par. 3-02.
6-25 Terminal 54 high ref./feedb. value
Range:
Par. 6-24 to 1000000.000
Function:
Enter the analog input scaling value that
corresponds to the maximum reference feedback
value set in par. 3-03.
6-26 Terminal 54 Filter Time Constant
Range:
0.001 - 10.000 s
Function:
Enter the time constant. This is a first-order
digital low pass filter time constant for suppressing
electrical noise in terminal 54. A high time constant
value improves dampening but also increases
the time delay through the filter.
This parameter cannot be adjusted while
the motor is running.
6-3* Analog Input 3 (MCB 101)
"
Parameter group for configuring the scale
and limits for analog input 3 (X30/11) placed
on option module MCB 101.
6-30 Term. X30/11 Low Voltage
Range:
-10 - par. 6-31
Function:
Sets the analog input scaling value to correspond to
the minimum reference value (set in par. 3-02).
6-31 Term. X30/11 High Voltage
Range:
Par. 6-31 to 10.0 V
Function:
Sets the analog input scaling value to correspond to
the maximum reference value (set in par. 3-03).
6-34 Term. X30/11 Low Ref./Feedb. Value
Range:
1000000.000 to par. 6-35
default setting ( ) display text
*
204
How to Program
Sets the analog input scaling value to correspond
to the minimum reference feedback value
(set in par. 3-02).
*
1500.000 Unit
Sets the analog input scaling value to correspond
to the maximum reference feedback value
(set in par. 3-03).
*
0.001s
A 1
suppressing electrical noise on terminal X30/11.
Par. 6-36 cannot be changed while the
motor is running.
6-4* Analog Input 4 (MCB 101)
"
Parameter group for configuring the scale
and limits for analog input 3 (X30/12) placed
on option module MCB 101.
*
Sets the analog input scaling value to correspond to
0.07 V
the minimum reference value (set in par. 3-02).
*
Sets the analog input scaling value to correspond to
10.0 V
the maximum reference value (set in par. 3-03).
*
0.000 Unit
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
Function:
6-35 Term. X30/11 High Ref./Feedb. Value
Range:
Par. 6-34 to 1000000.000
Function:
6-36 Term. X30/11 Filter Time Constant
Range:
0.001 - 10.000 s
Function:
st order digital low pass filter time constant for
6-40 Term. X30/12 Low Voltage
Range:
-10.0 to par. 6-41
Function:
6-41 Term. X30/12 High Voltage
Range:
Par. 6-41 to 10.0 V
Function:
6-44 Term. X30/12 Low Ref./Feedb. Value
Range:
-1000000.000 to par. 6-45
*
1500.000 Unit
*
0.001 s
*
0.7 V
*
10.0 V
*
0.000 Unit
