FC 300 Design Guide
Mechanical Dimension
"

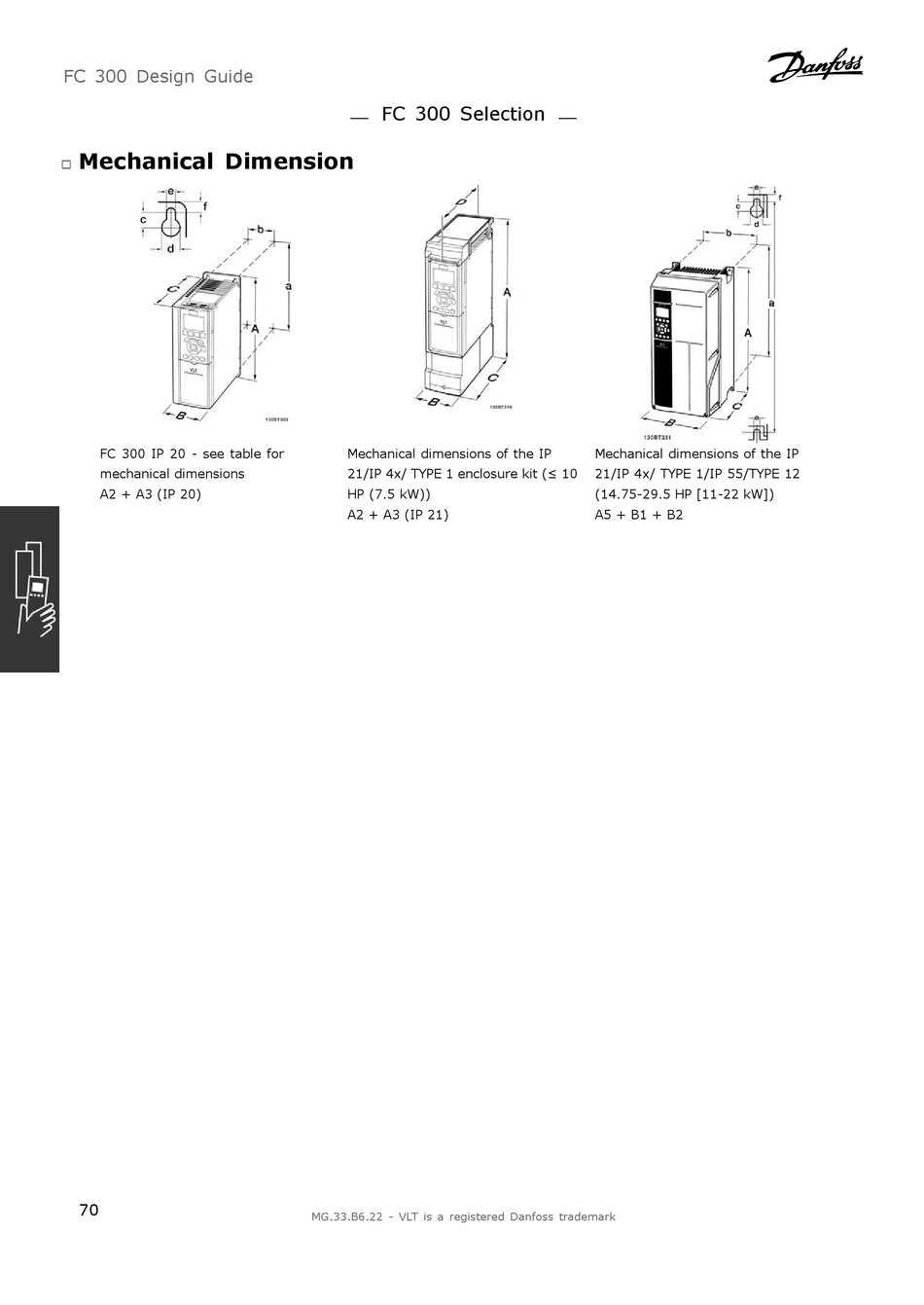

FC 300 IP 20 - see table for
mechanical dimensions
A2 + A3 (IP 20)
70
FC 300 Selection
Mechanical dimensions of the IP
21/IP 4x/ TYPE 1 enclosure kit (≤ 10
HP (7.5 kW))
A2 + A3 (IP 21)
MG.33.B6.22 - VLT is a registered Danfoss trademark
Mechanical dimensions of the IP
21/IP 4x/ TYPE 1/IP 55/TYPE 12
(14.75-29.5 HP [11-22 kW])
A5 + B1 + B2
