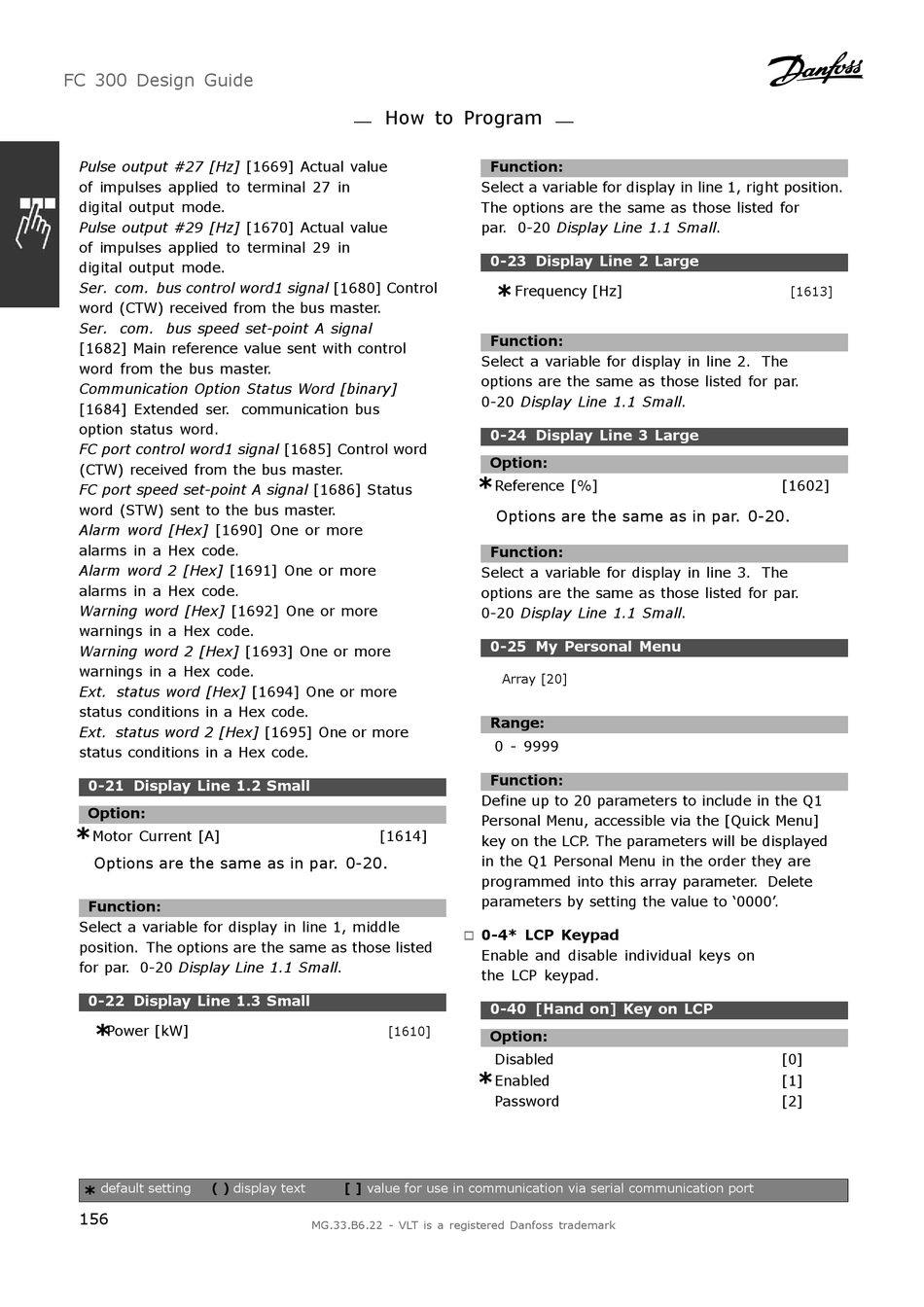

Danfoss FC 300 Design Manual page 156

FC 300 Design Guide
Pulse output #27 [Hz] [1669] Actual value
of impulses applied to terminal 27 in
digital output mode.
Pulse output #29 [Hz] [1670] Actual value
of impulses applied to terminal 29 in
digital output mode.
Ser. com. bus control word1 signal [1680] Control
word (CTW) received from the bus master.
Ser. com. bus speed set-point A signal
[1682] Main reference value sent with control
word from the bus master.
Communication Option Status Word [binary]
[1684] Extended ser. communication bus
option status word.
FC port control word1 signal [1685] Control word
(CTW) received from the bus master.
FC port speed set-point A signal [1686] Status
word (STW) sent to the bus master.
Alarm word [Hex] [1690] One or more
alarms in a Hex code.
Alarm word 2 [Hex] [1691] One or more
alarms in a Hex code.
Warning word [Hex] [1692] One or more
warnings in a Hex code.
Warning word 2 [Hex] [1693] One or more
warnings in a Hex code.
Ext. status word [Hex] [1694] One or more
status conditions in a Hex code.
Ext. status word 2 [Hex] [1695] One or more
status conditions in a Hex code.
0-21 Display Line 1.2 Small
Option:
*
Motor Current [A]
Options are the same as in par. 0-20.
Function:
Select a variable for display in line 1, middle
position. The options are the same as those listed
for par. 0-20 Display Line 1.1 Small.
0-22 Display Line 1.3 Small
*
Power [kW]
default setting ( ) display text
*
156
How to Program
Select a variable for display in line 1, right position.
The options are the same as those listed for
par. 0-20 Display Line 1.1 Small.
Select a variable for display in line 2. The
options are the same as those listed for par.
0-20 Display Line 1.1 Small.
*
Select a variable for display in line 3. The
options are the same as those listed for par.
0-20 Display Line 1.1 Small.
Define up to 20 parameters to include in the Q1
Personal Menu, accessible via the [Quick Menu]
[1614]
key on the LCP. The parameters will be displayed
in the Q1 Personal Menu in the order they are
programmed into this array parameter. Delete
parameters by setting the value to '0000'.
0-4* LCP Keypad
"
Enable and disable individual keys on
the LCP keypad.
[1610]
*
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
Function:
0-23 Display Line 2 Large
*
Frequency [Hz]
Function:
0-24 Display Line 3 Large
Option:
Reference [%]
Options are the same as in par. 0-20.
Function:
0-25 My Personal Menu
Array [20]
Range:
0 - 9999
Function:
0-40 [Hand on] Key on LCP
Option:
Disabled
Enabled
Password
[1613]
[1602]
[0]
[1]
[2]
