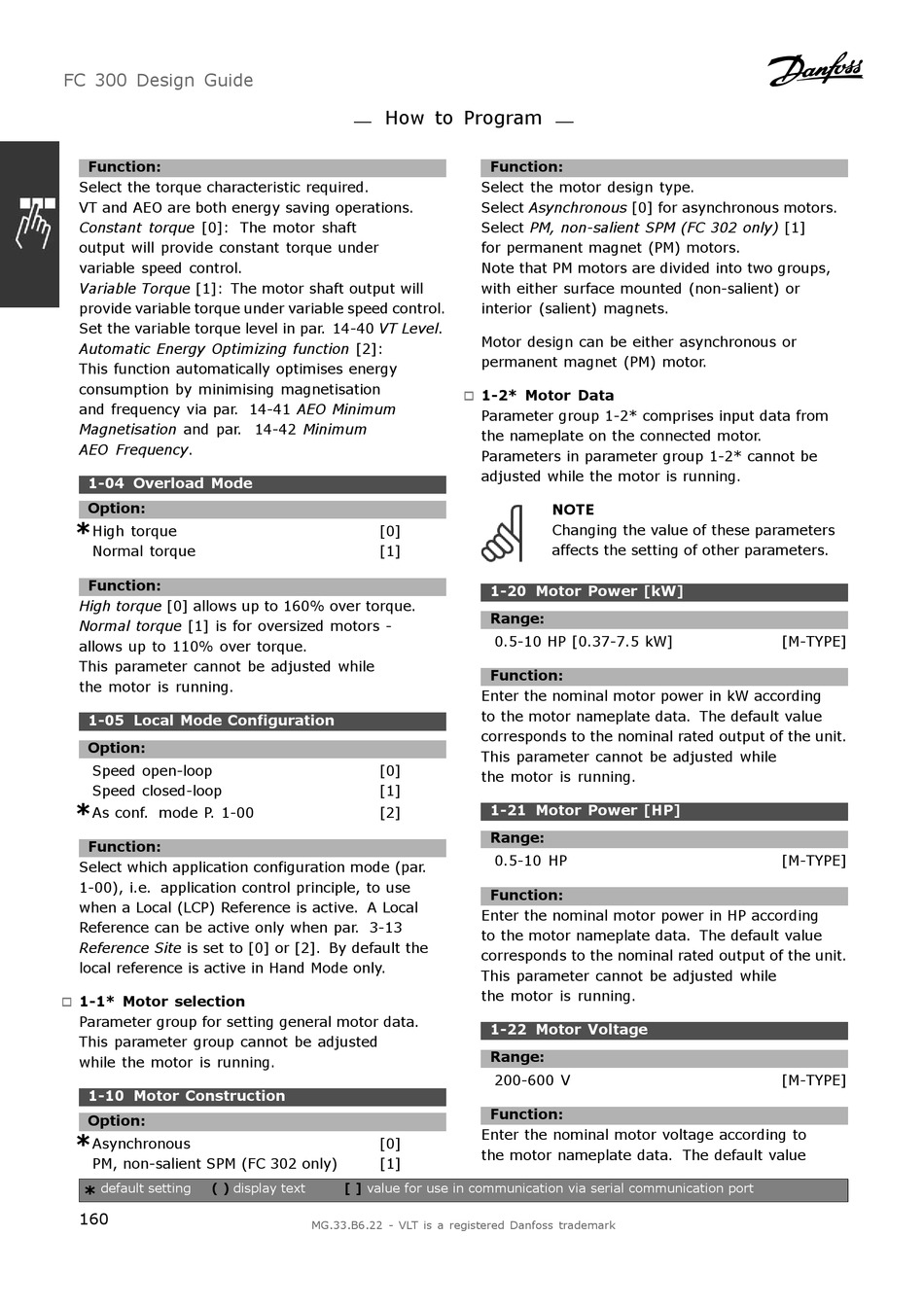

Danfoss FC 300 Design Manual page 160

FC 300 Design Guide
Function:
Select the torque characteristic required.
VT and AEO are both energy saving operations.
Constant torque [0]: The motor shaft
output will provide constant torque under
variable speed control.
Variable Torque [1]: The motor shaft output will
provide variable torque under variable speed control.
Set the variable torque level in par. 14-40 VT Level.
Automatic Energy Optimizing function [2]:
This function automatically optimises energy
consumption by minimising magnetisation
and frequency via par. 14-41 AEO Minimum
Magnetisation and par. 14-42 Minimum
AEO Frequency.
1-04 Overload Mode
Option:
*
High torque
Normal torque
Function:
High torque [0] allows up to 160% over torque.
Normal torque [1] is for oversized motors -
allows up to 110% over torque.
This parameter cannot be adjusted while
the motor is running.
1-05 Local Mode Configuration
Option:
Speed open-loop
Speed closed-loop
*
As conf. mode P. 1-00
Function:
Select which application configuration mode (par.
1-00), i.e. application control principle, to use
when a Local (LCP) Reference is active. A Local
Reference can be active only when par. 3-13
Reference Site is set to [0] or [2]. By default the
local reference is active in Hand Mode only.
1-1* Motor selection
"
Parameter group for setting general motor data.
This parameter group cannot be adjusted
while the motor is running.
1-10 Motor Construction
Option:
*
Asynchronous
PM, non-salient SPM (FC 302 only)
default setting ( ) display text
*
160
How to Program
Select the motor design type.
Select Asynchronous [0] for asynchronous motors.
Select PM, non-salient SPM (FC 302 only) [1]
for permanent magnet (PM) motors.
Note that PM motors are divided into two groups,
with either surface mounted (non-salient) or
interior (salient) magnets.
Motor design can be either asynchronous or
permanent magnet (PM) motor.
1-2* Motor Data
"
Parameter group 1-2* comprises input data from
the nameplate on the connected motor.
Parameters in parameter group 1-2* cannot be
adjusted while the motor is running.
[0]
[1]
Enter the nominal motor power in kW according
to the motor nameplate data. The default value
corresponds to the nominal rated output of the unit.
This parameter cannot be adjusted while
[0]
the motor is running.
[1]
[2]
Enter the nominal motor power in HP according
to the motor nameplate data. The default value
corresponds to the nominal rated output of the unit.
This parameter cannot be adjusted while
the motor is running.
Enter the nominal motor voltage according to
[0]
the motor nameplate data. The default value
[1]
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
Function:
NOTE
Changing the value of these parameters
affects the setting of other parameters.
1-20 Motor Power [kW]
Range:
0.5-10 HP [0.37-7.5 kW]
Function:
1-21 Motor Power [HP]
Range:
0.5-10 HP
Function:
1-22 Motor Voltage
Range:
200-600 V
Function:
[M-TYPE]
[M-TYPE]
[M-TYPE]
