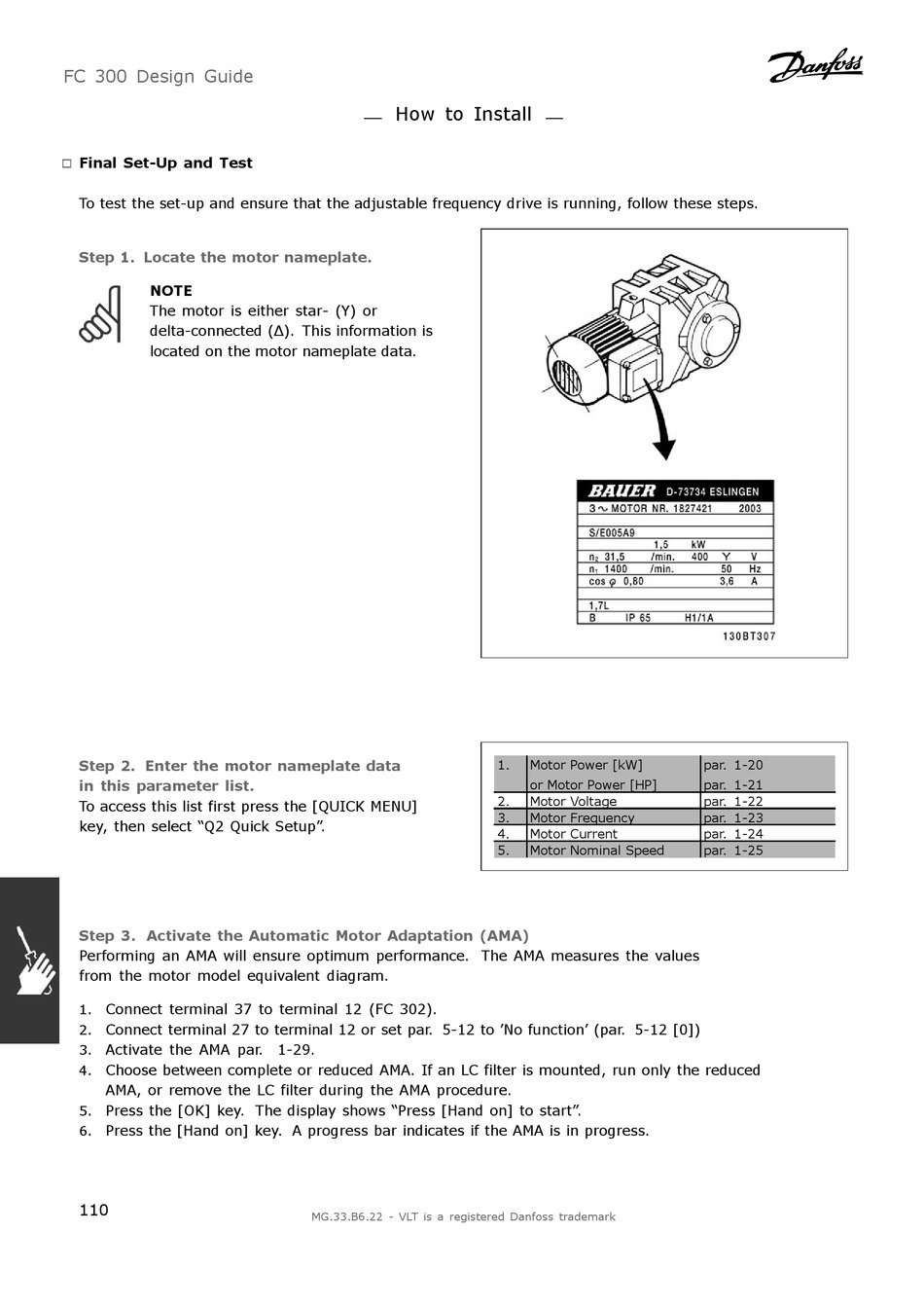

Final Set-Up and Test

"
To test the set-up and ensure that the adjustable frequency drive is running, follow these steps.
Step 1. Locate the motor nameplate.
NOTE
The motor is either star- (Y) or
delta-connected (∆). This information is
located on the motor nameplate data.
Step 2. Enter the motor nameplate data
in this parameter list.
To access this list first press the [QUICK MENU]
key, then select "Q2 Quick Setup".
Step 3. Activate the Automatic Motor Adaptation (AMA)
Performing an AMA will ensure optimum performance. The AMA measures the values
from the motor model equivalent diagram.
1. Connect terminal 37 to terminal 12 (FC 302).
Connect terminal 27 to terminal 12 or set par. 5-12 to 'No function' (par. 5-12 [0])
2.
Activate the AMA par. 1-29.
3.
Choose between complete or reduced AMA. If an LC filter is mounted, run only the reduced
4.
AMA, or remove the LC filter during the AMA procedure.
Press the [OK] key. The display shows "Press [Hand on] to start".
5.
Press the [Hand on] key. A progress bar indicates if the AMA is in progress.
6.
110
How to Install
MG.33.B6.22 - VLT is a registered Danfoss trademark
1. Motor Power [kW]
or Motor Power [HP]
2. Motor Voltage
3. Motor Frequency
4. Motor Current
5. Motor Nominal Speed
par. 1-20
par. 1-21
par. 1-22
par. 1-23
par. 1-24
par. 1-25
