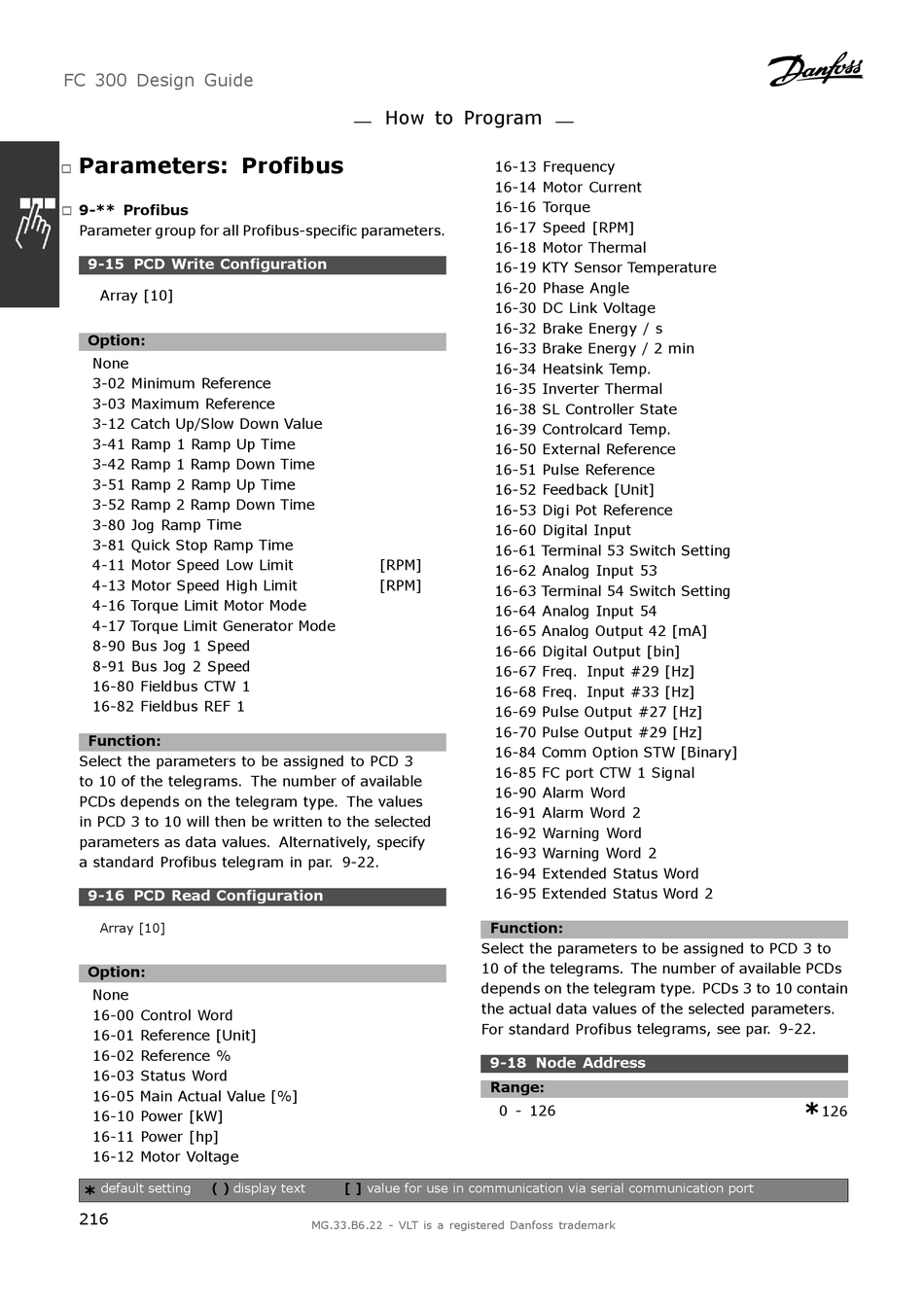

9-** Profibus
"
Parameter group for all Profibus-specific parameters.
9-15 PCD Write Configuration
Array [10]
Option:
None
3-02 Minimum Reference
3-03 Maximum Reference
3-12 Catch Up/Slow Down Value
3-41 Ramp 1 Ramp Up Time
3-42 Ramp 1 Ramp Down Time
3-51 Ramp 2 Ramp Up Time
3-52 Ramp 2 Ramp Down Time
3-80 Jog Ramp Time
3-81 Quick Stop Ramp Time
4-11 Motor Speed Low Limit
4-13 Motor Speed High Limit
4-16 Torque Limit Motor Mode
4-17 Torque Limit Generator Mode
8-90 Bus Jog 1 Speed
8-91 Bus Jog 2 Speed
16-80 Fieldbus CTW 1
16-82 Fieldbus REF 1
Function:
Select the parameters to be assigned to PCD 3
to 10 of the telegrams. The number of available
PCDs depends on the telegram type. The values
in PCD 3 to 10 will then be written to the selected
parameters as data values. Alternatively, specify
a standard Profibus telegram in par. 9-22.
9-16 PCD Read Configuration
Array [10]
Option:
None
16-00 Control Word
16-01 Reference [Unit]
16-02 Reference %
16-03 Status Word
16-05 Main Actual Value [%]
16-10 Power [kW]
16-11 Power [hp]
16-12 Motor Voltage
default setting ( ) display text
*
216
How to Program
[RPM]
[RPM]
Select the parameters to be assigned to PCD 3 to
10 of the telegrams. The number of available PCDs
depends on the telegram type. PCDs 3 to 10 contain
the actual data values of the selected parameters.
For standard Profibus telegrams, see par. 9-22.
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
16-13 Frequency
16-14 Motor Current
16-16 Torque
16-17 Speed [RPM]
16-18 Motor Thermal
16-19 KTY Sensor Temperature
16-20 Phase Angle
16-30 DC Link Voltage
16-32 Brake Energy / s
16-33 Brake Energy / 2 min
16-34 Heatsink Temp.
16-35 Inverter Thermal
16-38 SL Controller State
16-39 Controlcard Temp.
16-50 External Reference
16-51 Pulse Reference
16-52 Feedback [Unit]
16-53 Digi Pot Reference
16-60 Digital Input
16-61 Terminal 53 Switch Setting
16-62 Analog Input 53
16-63 Terminal 54 Switch Setting
16-64 Analog Input 54
16-65 Analog Output 42 [mA]
16-66 Digital Output [bin]
16-67 Freq. Input #29 [Hz]
16-68 Freq. Input #33 [Hz]
16-69 Pulse Output #27 [Hz]
16-70 Pulse Output #29 [Hz]
16-84 Comm Option STW [Binary]
16-85 FC port CTW 1 Signal
16-90 Alarm Word
16-91 Alarm Word 2
16-92 Warning Word
16-93 Warning Word 2
16-94 Extended Status Word
16-95 Extended Status Word 2
Function:
9-18 Node Address
Range:
0 - 126
*
126
