FC 300 Design Guide
Select Linked to Hand / Auto [0] to use the local
reference when in Hand mode; or the remote
reference when in Auto mode.
Select Remote [1] to use the remote reference
in both Hand mode and Auto mode.
Select Local [2] to use the local reference in
both Hand mode and Auto mode.
3-14 Preset Relative Reference
Range:
-100.00 - 100.00%
Function:
Define a fixed value (in %) to be added to the
variable value (defined in par. 3-18 Relative Scaling
Reference Source). The sum of the fixed and

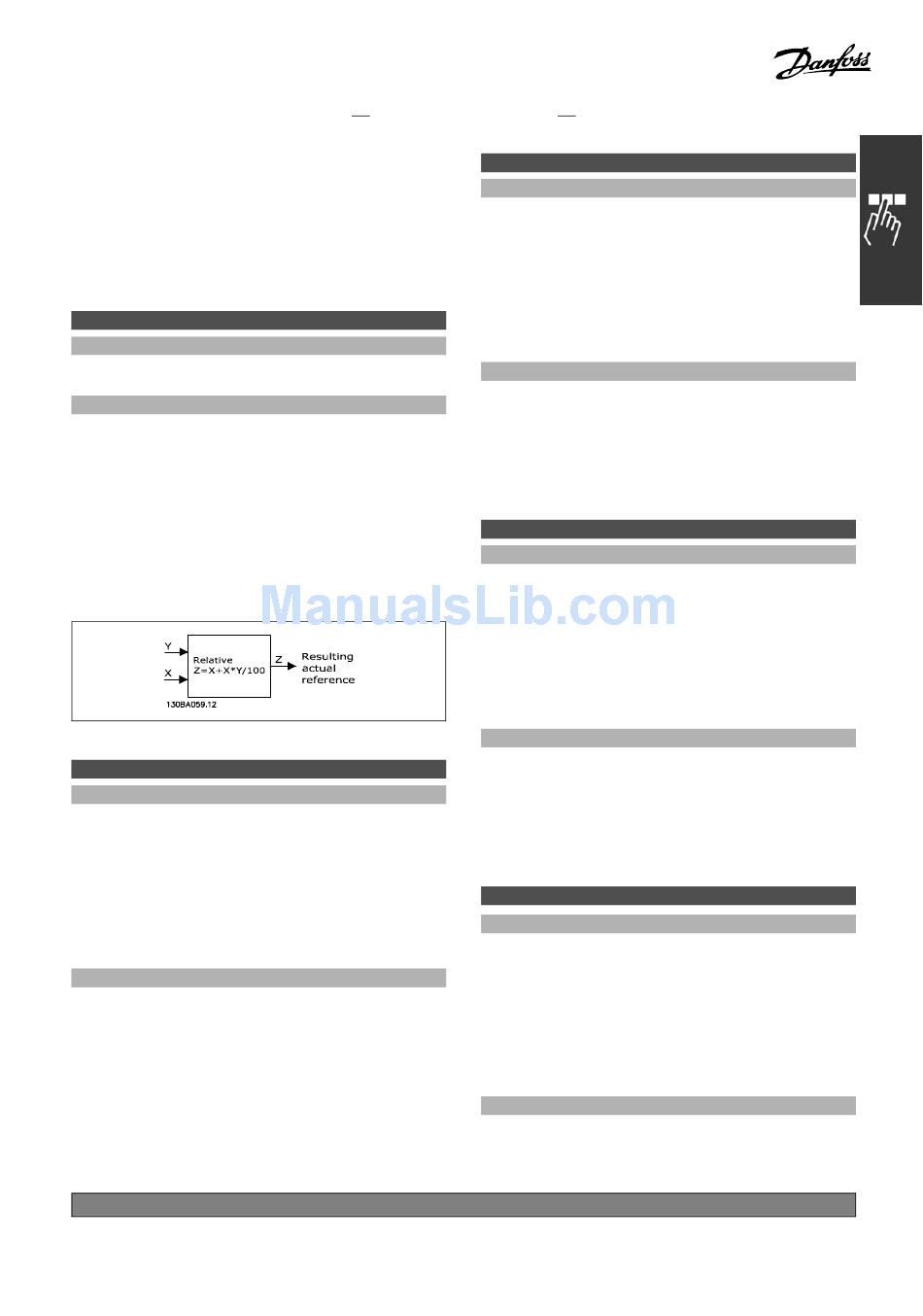

variable values (labeled Y in the illustration below)
is multiplied with the actual reference (labeled
X in the illustration below). This product is then
added to the actual reference (X+X*Y/100) to
give the resulting actual reference.
3-15 Reference Resource 1
Option:
No function
*
Analog input 53
Analog input 54
Frequency input 29
Frequency input 33
Local bus reference
Digital pot.meter
Function:
Select the reference input to be used for the first
reference signal. Par. 3-15, 3-16 and 3-17 define
up to three different reference signals. The sum of
these reference signals defines the actual reference.
This parameter cannot be adjusted while
the motor is running.
* default setting ( ) display text
How to Program
*
*
0.00%
Select the reference input to be used for the second
reference signal. Par. 3-15, 3-16 and 3-17 define
up to three different reference signals. The sum of
these reference signals defines the actual reference.
This parameter cannot be adjusted while
the motor is running.
*
Select the reference input to be used for the third
reference signal. Par. 3-15, 3-16 and 3-17 define
up to three different reference signals. The sum of
[0]
these reference signals defines the actual reference.
[1]
This parameter cannot be adjusted while
[2]
the motor is running.
[7]
[8]
[11]
*
[20]
Select a variable value to be added to the fixed value
(defined in par. 3-14Preset Relative Reference). The
sum of the fixed and variable values (labelled Y in
[ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
3-16 Reference Resource 2
Option:
No function
Analog input 53
Analog input 54
Frequency input 29
Frequency input 33
Local bus reference
Digital pot.meter
Function:
3-17 Reference Resource 3
Option:
No function
Analog input 53
Analog input 54
Frequency input 29
Frequency input 33
Local bus reference
Digital pot.meter
Function:
3-18 Relative Scaling Reference Resource
Option:
No function
Analog input 53
Analog input 54
Frequency input 29
Frequency input 33
Local bus reference
Digital pot.meter
Function:
[0]
[1]
[2]
[7]
[8]
[11]
[20]
[0]
[1]
[2]
[7]
[8]
[11]
[20]
[0]
[1]
[2]
[7]
[8]
[11]
[20]
