FC 300 Design Guide

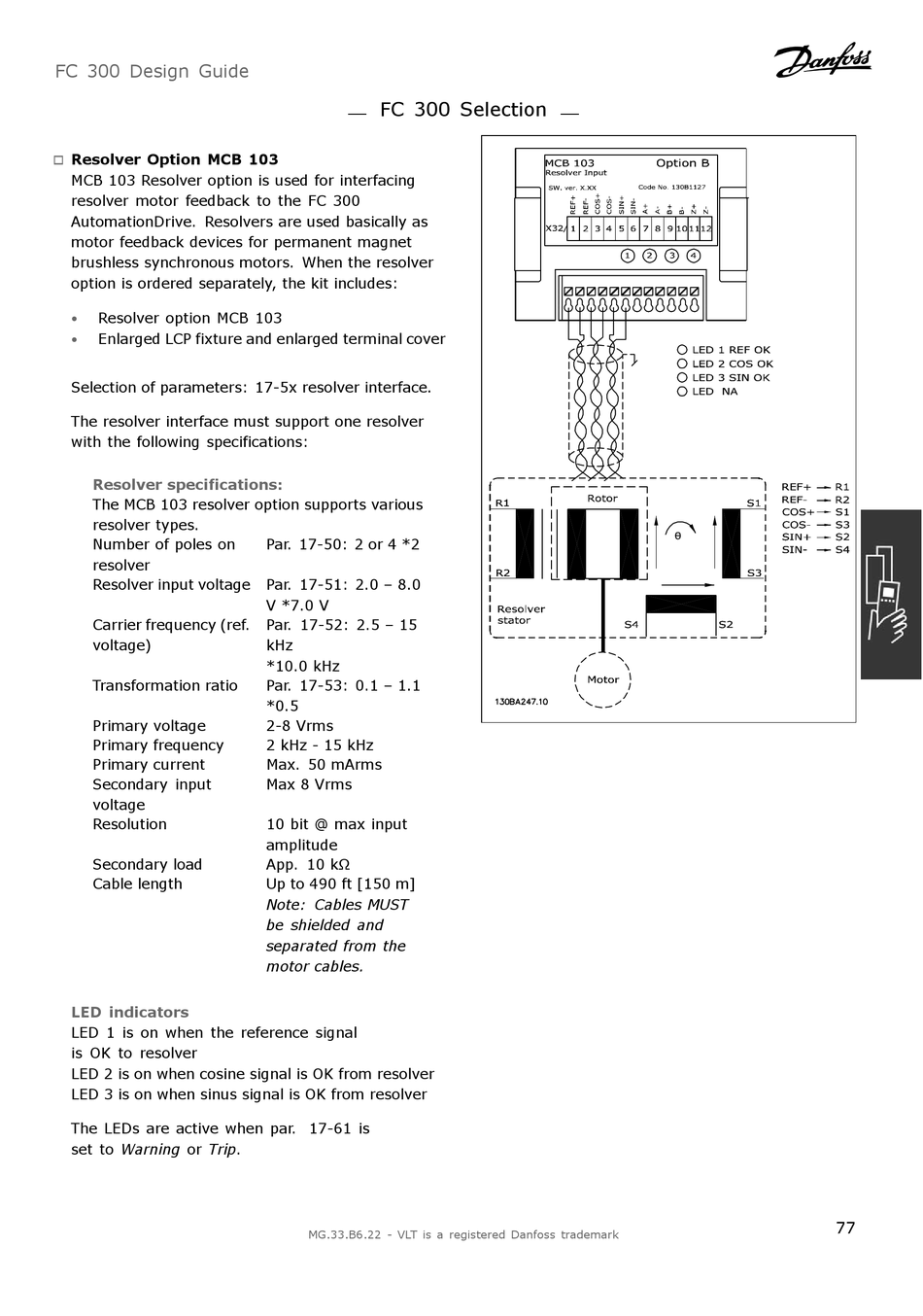

Resolver Option MCB 103

"
MCB 103 Resolver option is used for interfacing
resolver motor feedback to the FC 300
AutomationDrive. Resolvers are used basically as
motor feedback devices for permanent magnet
brushless synchronous motors. When the resolver
option is ordered separately, the kit includes:
Resolver option MCB 103
•
Enlarged LCP fixture and enlarged terminal cover
•
Selection of parameters: 17-5x resolver interface.
The resolver interface must support one resolver
with the following specifications:
Resolver specifications:
The MCB 103 resolver option supports various
resolver types.
Number of poles on
resolver
Resolver input voltage
Carrier frequency (ref.
voltage)
Transformation ratio
Primary voltage
Primary frequency
Primary current
Secondary input
voltage
Resolution
Secondary load
Cable length
LED indicators
LED 1 is on when the reference signal
is OK to resolver
LED 2 is on when cosine signal is OK from resolver
LED 3 is on when sinus signal is OK from resolver
The LEDs are active when par. 17-61 is
set to Warning or Trip.
FC 300 Selection
Par. 17-50: 2 or 4 *2
Par. 17-51: 2.0 – 8.0
V *7.0 V
Par. 17-52: 2.5 – 15
kHz
*10.0 kHz
Par. 17-53: 0.1 – 1.1
*0.5
2-8 Vrms
2 kHz - 15 kHz
Max. 50 mArms
Max 8 Vrms
10 bit @ max input
amplitude
App. 10 kΩ
Up to 490 ft [150 m]
Note: Cables MUST
be shielded and
separated from the
motor cables.
