FC 300 Design Guide
can never be higher than the corresponding setting
in par. 6-62 if value is below 100%.
This parameter is active when option module MCB
101 is mounted in the adjustable frequency drive.
6-62 Term. X30/8 Output Max Scale
Range:
0.00 - 200%
Function:
Scales the maximum output of the selected analog
signal on terminal X30/8. Scale the value to the
desired maximum value of the current signal output.
Scale the output to give a lower current than 20 mA
at full scale or 20 mA at an output below 100% of
the maximum signal value. If 20 mA is the desired
output current at a value between 0 - 100% of the
full-scale output, program the percentage value
in the parameter, i.e., 50% = 20 mA. If a current

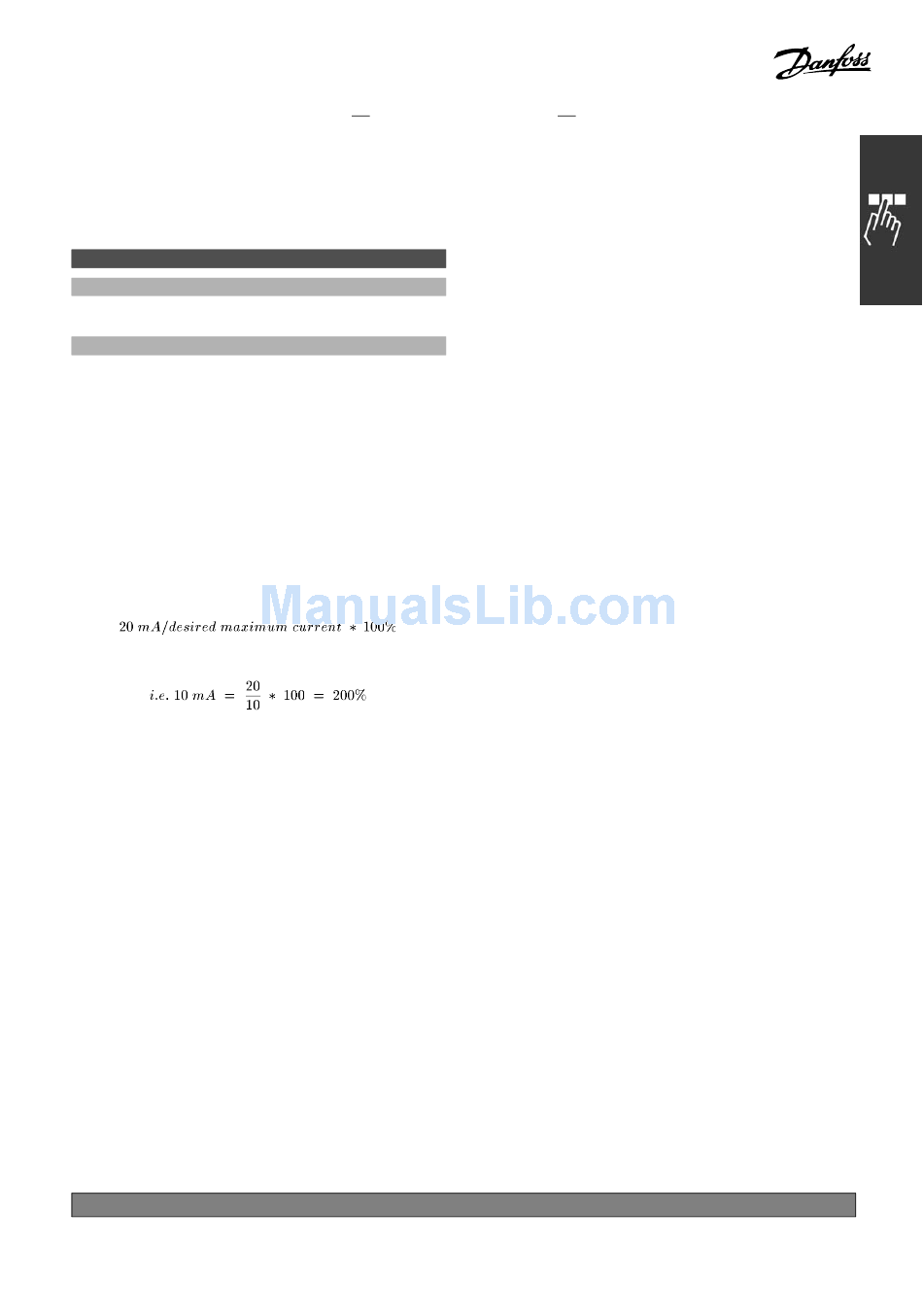

between 4 and 20 MA is desired at maximum output
(100%), calculate the percentage value as follows:
* default setting ( ) display text
How to Program
*
100%
[ ] value for use in communication via serial communication port
