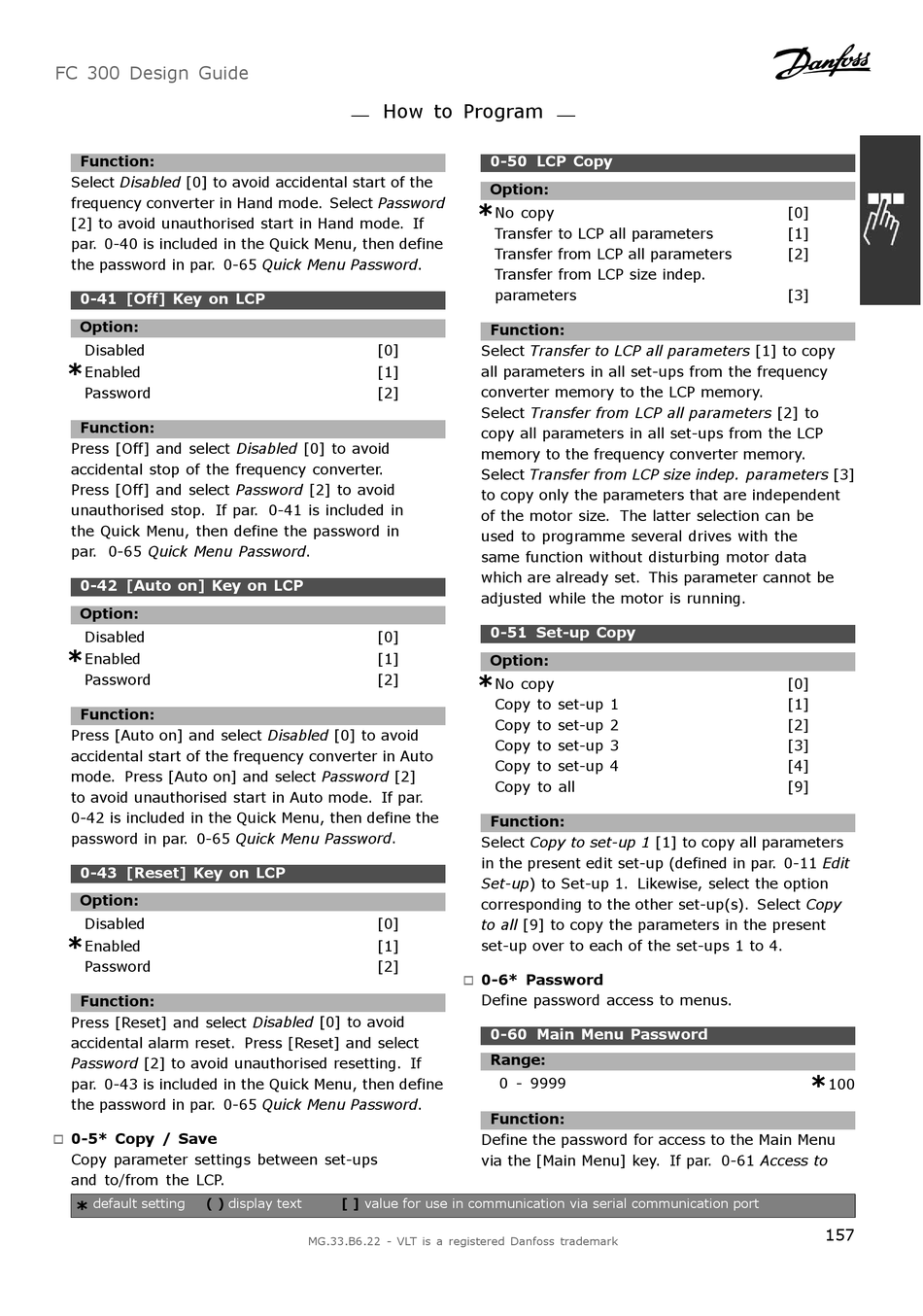

Danfoss FC 300 Design Manual page 157

FC 300 Design Guide
Function:
Select Disabled [0] to avoid accidental start of the
frequency converter in Hand mode. Select Password
[2] to avoid unauthorised start in Hand mode. If
par. 0-40 is included in the Quick Menu, then define
the password in par. 0-65 Quick Menu Password.
0-41 [Off] Key on LCP
Option:
Disabled
*
Enabled
Password
Function:
Press [Off] and select Disabled [0] to avoid
accidental stop of the frequency converter.
Press [Off] and select Password [2] to avoid
unauthorised stop. If par. 0-41 is included in
the Quick Menu, then define the password in
par. 0-65 Quick Menu Password.
0-42 [Auto on] Key on LCP
Option:
Disabled
*
Enabled
Password
Function:
Press [Auto on] and select Disabled [0] to avoid
accidental start of the frequency converter in Auto
mode. Press [Auto on] and select Password [2]
to avoid unauthorised start in Auto mode. If par.
0-42 is included in the Quick Menu, then define the
password in par. 0-65 Quick Menu Password.
0-43 [Reset] Key on LCP
Option:
Disabled
*
Enabled
Password
Function:
Press [Reset] and select Disabled [0] to avoid
accidental alarm reset. Press [Reset] and select
Password [2] to avoid unauthorised resetting. If
par. 0-43 is included in the Quick Menu, then define
the password in par. 0-65 Quick Menu Password.
0-5* Copy / Save
"
Copy parameter settings between set-ups
and to/from the LCP.
* default setting ( )
How to Program
[0]
[1]
[2]
[0]
[1]
[2]
[0]
[1]
[2]
display text [ ] value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
0-50 LCP Copy
Option:
*
No copy
Transfer to LCP all parameters
Transfer from LCP all parameters
Transfer from LCP size indep.
parameters
Function:
Select Transfer to LCP all parameters [1] to copy
all parameters in all set-ups from the frequency
converter memory to the LCP memory.
Select Transfer from LCP all parameters [2] to
copy all parameters in all set-ups from the LCP
memory to the frequency converter memory.
Select Transfer from LCP size indep. parameters [3]
to copy only the parameters that are independent
of the motor size. The latter selection can be
used to programme several drives with the
same function without disturbing motor data
which are already set. This parameter cannot be
adjusted while the motor is running.
0-51 Set-up Copy
Option:
*
No copy
Copy to set-up 1
Copy to set-up 2
Copy to set-up 3
Copy to set-up 4
Copy to all
Function:
Select Copy to set-up 1 [1] to copy all parameters
in the present edit set-up (defined in par. 0-11 Edit
Set-up) to Set-up 1. Likewise, select the option
corresponding to the other set-up(s). Select Copy
to all [9] to copy the parameters in the present
set-up over to each of the set-ups 1 to 4.
0-6* Password
"
Define password access to menus.
0-60 Main Menu Password
Range:
0 - 9999
Function:
Define the password for access to the Main Menu
via the [Main Menu] key. If par. 0-61 Access to
[0]
[1]
[2]
[3]
[0]
[1]
[2]
[3]
[4]
[9]
*
