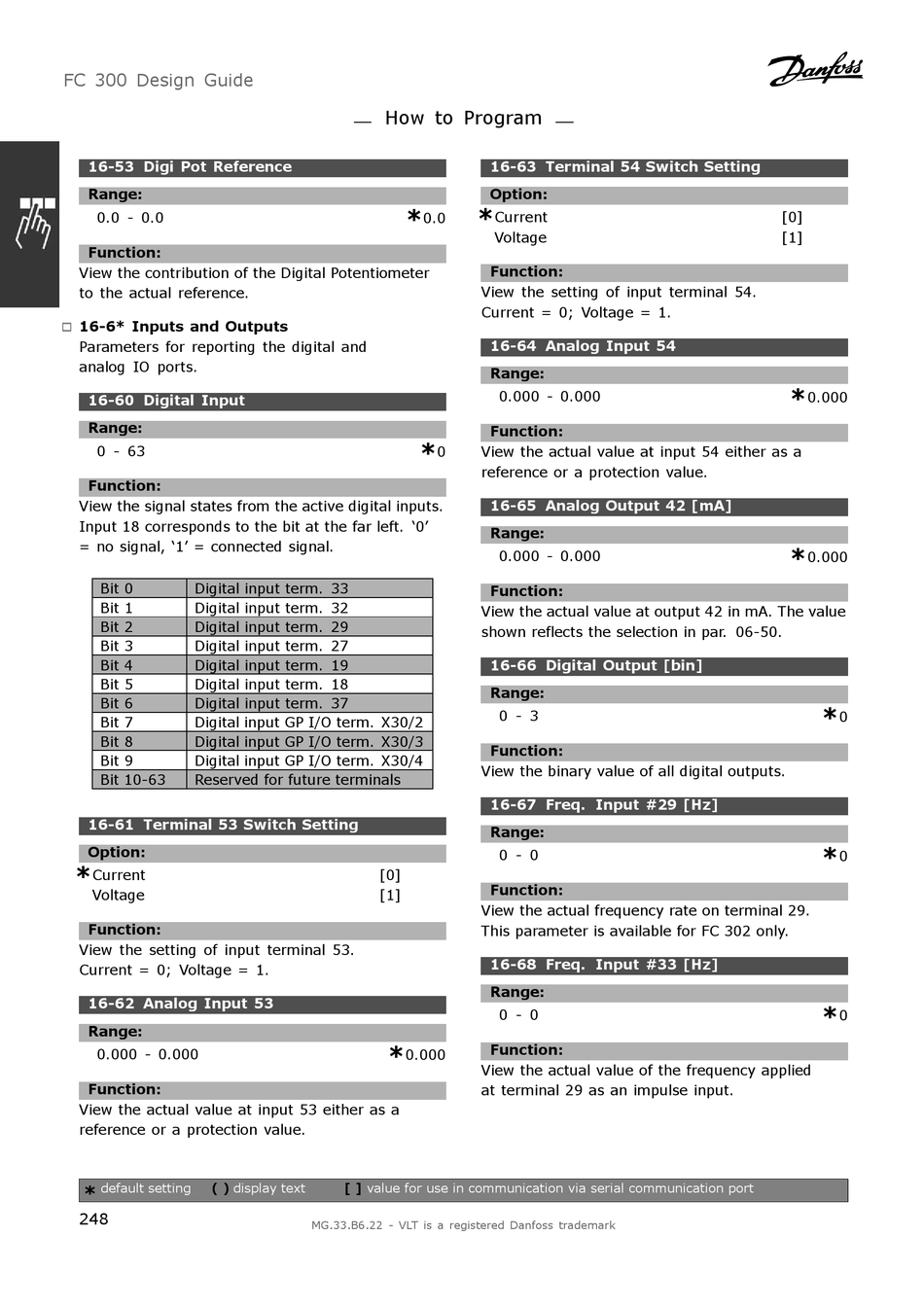

FC 300 Design Guide
16-53 Digi Pot Reference
Range:
0.0 - 0.0
Function:
View the contribution of the Digital Potentiometer
to the actual reference.
16-6* Inputs and Outputs
"
Parameters for reporting the digital and
analog IO ports.
16-60 Digital Input
Range:
0 - 63
Function:
View the signal states from the active digital inputs.
Input 18 corresponds to the bit at the far left. '0'
= no signal, '1' = connected signal.
Bit 0
Digital input term. 33
Bit 1
Digital input term. 32
Bit 2
Digital input term. 29
Bit 3
Digital input term. 27
Bit 4
Digital input term. 19
Bit 5
Digital input term. 18
Bit 6
Digital input term. 37
Bit 7
Digital input GP I/O term. X30/2
Bit 8
Digital input GP I/O term. X30/3
Bit 9
Digital input GP I/O term. X30/4
Bit 10-63
Reserved for future terminals
16-61 Terminal 53 Switch Setting
Option:
*
Current
Voltage
Function:
View the setting of input terminal 53.
Current = 0; Voltage = 1.
16-62 Analog Input 53
Range:
0.000 - 0.000
Function:
View the actual value at input 53 either as a
reference or a protection value.
default setting
( )
display text
*
248
How to Program
*
*
0.0
View the setting of input terminal 54.
Current = 0; Voltage = 1.
*
0
View the actual value at input 54 either as a
reference or a protection value.
View the actual value at output 42 in mA. The value
shown reflects the selection in par. 06-50.
View the binary value of all digital outputs.
[0]
[1]
View the actual frequency rate on terminal 29.
This parameter is available for FC 302 only.
*
0.000
View the actual value of the frequency applied
at terminal 29 as an impulse input.
[ ]
value for use in communication via serial communication port
MG.33.B6.22 - VLT is a registered Danfoss trademark
16-63 Terminal 54 Switch Setting
Option:
Current
Voltage
Function:
16-64 Analog Input 54
Range:
0.000 - 0.000
Function:
16-65 Analog Output 42 [mA]
Range:
0.000 - 0.000
Function:
16-66 Digital Output [bin]
Range:
0 - 3
Function:
16-67 Freq. Input #29 [Hz]
Range:
0 - 0
Function:
16-68 Freq. Input #33 [Hz]
Range:
0 - 0
Function:
[0]
[1]
*
0.000
*
0.000
*
0
*
0
*
0
