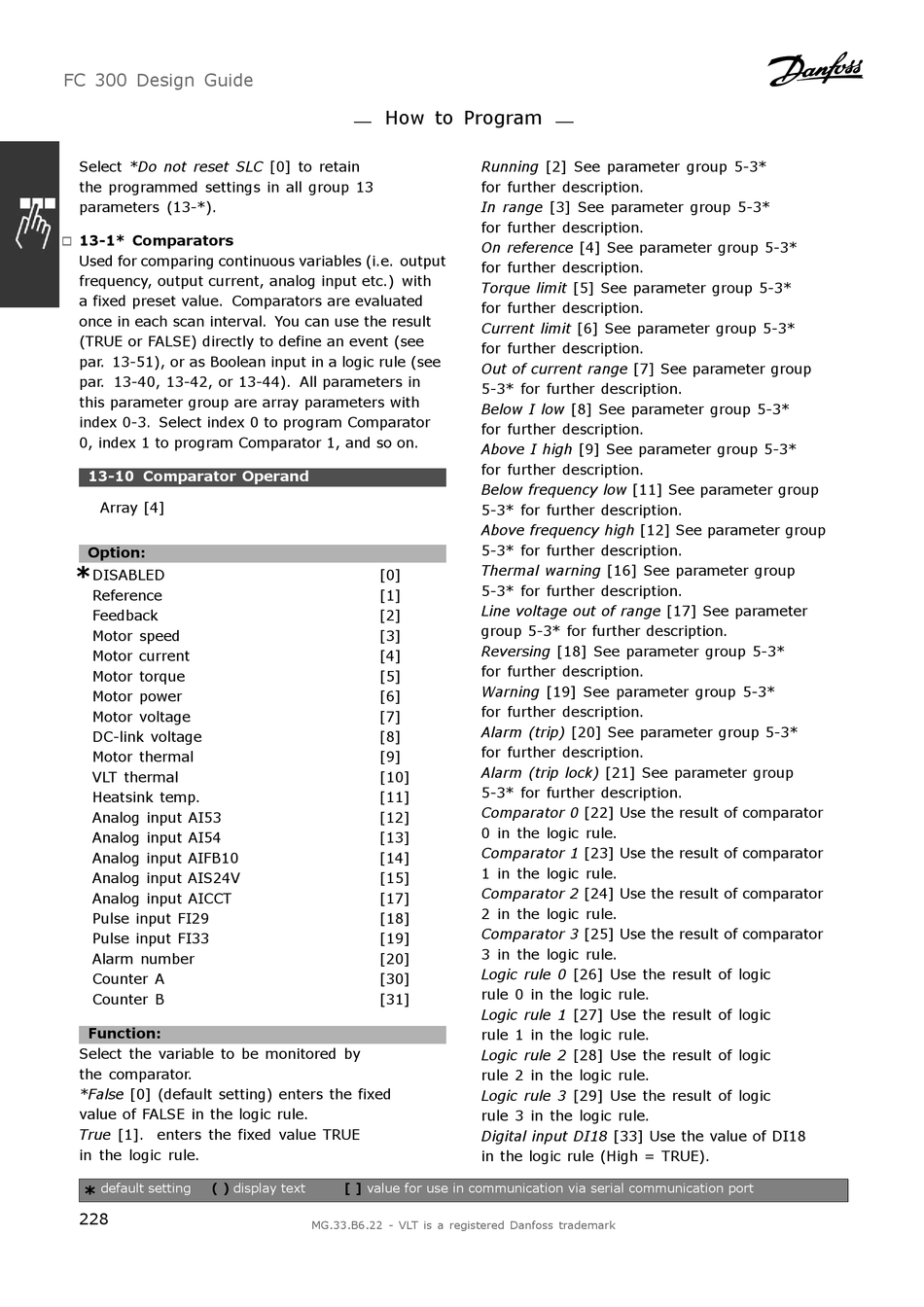

Danfoss FC 300 Design Manual page 228

FC 300 Design Guide
Select *Do not reset SLC [0] to retain
the programmed settings in all group 13
parameters (13-*).
13-1* Comparators
"
Used for comparing continuous variables (i.e. output
frequency, output current, analog input etc.) with
a fixed preset value. Comparators are evaluated
once in each scan interval. You can use the result
(TRUE or FALSE) directly to define an event (see
par. 13-51), or as Boolean input in a logic rule (see
par. 13-40, 13-42, or 13-44). All parameters in
this parameter group are array parameters with
index 0-3. Select index 0 to program Comparator
0, index 1 to program Comparator 1, and so on.
13-10 Comparator Operand
Array [4]
Option:
*
DISABLED
Reference
Feedback
Motor speed
Motor current
Motor torque
Motor power
Motor voltage
DC-link voltage
Motor thermal
VLT thermal
Heatsink temp.
Analog input AI53
Analog input AI54
Analog input AIFB10
Analog input AIS24V
Analog input AICCT
Pulse input FI29
Pulse input FI33
Alarm number
Counter A
Counter B
Function:
Select the variable to be monitored by
the comparator.
*False [0] (default setting) enters the fixed
value of FALSE in the logic rule.
True [1]. enters the fixed value TRUE
in the logic rule.
default setting ( ) display text
*
228
How to Program
Running [2] See parameter group 5-3*
for further description.
In range [3] See parameter group 5-3*
for further description.
On reference [4] See parameter group 5-3*
for further description.
Torque limit [5] See parameter group 5-3*
for further description.
Current limit [6] See parameter group 5-3*
for further description.
Out of current range [7] See parameter group
5-3* for further description.
Below I low [8] See parameter group 5-3*
for further description.
Above I high [9] See parameter group 5-3*
for further description.
Below frequency low [11] See parameter group
5-3* for further description.
Above frequency high [12] See parameter group
5-3* for further description.
Thermal warning [16] See parameter group
[0]
5-3* for further description.
[1]
Line voltage out of range [17] See parameter
[2]
group 5-3* for further description.
[3]
Reversing [18] See parameter group 5-3*
[4]
for further description.
[5]
Warning [19] See parameter group 5-3*
[6]
for further description.
[7]
Alarm (trip) [20] See parameter group 5-3*
[8]
for further description.
[9]
Alarm (trip lock) [21] See parameter group
[10]
5-3* for further description.
[11]
Comparator 0 [22] Use the result of comparator
[12]
0 in the logic rule.
[13]
Comparator 1 [23] Use the result of comparator
[14]
1 in the logic rule.
[15]
Comparator 2 [24] Use the result of comparator
[17]
2 in the logic rule.
[18]
Comparator 3 [25] Use the result of comparator
[19]
3 in the logic rule.
[20]
Logic rule 0 [26] Use the result of logic
[30]
rule 0 in the logic rule.
[31]
Logic rule 1 [27] Use the result of logic
rule 1 in the logic rule.
Logic rule 2 [28] Use the result of logic
rule 2 in the logic rule.
Logic rule 3 [29] Use the result of logic
rule 3 in the logic rule.
Digital input DI18 [33] Use the value of DI18
in the logic rule (High = TRUE).
[ ] value for use in communication via serial communication port
