When using a DC adapter
The DC adapter should only be used in negative grounded vehicles (12
and 24V DC).
Do not use with the car engine shut off. May drain the car battery.
The DC adapter fuse (2A) is a consumable. For replacement, purchase
a new fuse at a local automobile supply shop.
Refer to the FOMA DC Adapter 01/02 user's guide for details.
Charging by using desktop holder
[Read "Desktop Holder SH26 (sold separately) user's guide"
carefully.]
Battery pack can be charged in the viewer position.
Battery pack cannot be charged with the FOMA terminal opened.

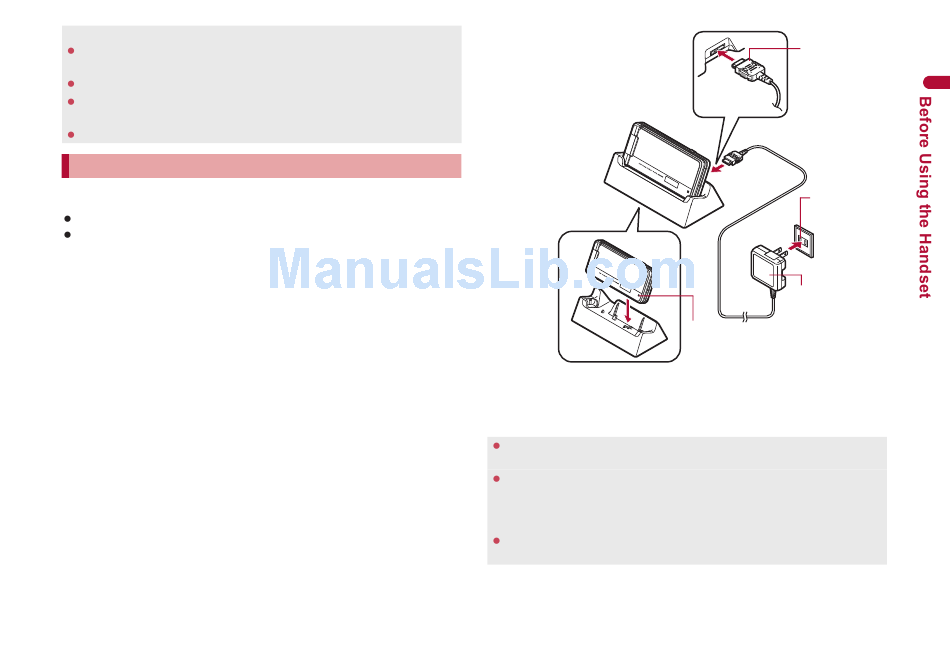

1
Face the side with the arrows of the AC adapter
connector up and insert it into the connector terminal
of the desktop holder (1).
: Keeping the connector parallel with the desktop holder, securely
push it all the way in until it clicks.
2
Insert the AC adapter power plug into an outlet (2).
3
When placing the FOMA terminal in the desktop
holder, Charge start sound is heard, charging LED
illuminates, and charging starts.
: Place the FOMA terminal in the direction of the arrow until it clicks as
the figure shows (3).
: Do not open the FOMA terminal while it is placed in the desktop
holder.
3
4
When Charge end sound is heard and charging LED
turns off, charging is complete.
: Hold the desktop holder and lift the FOMA terminal out.
Pull the AC adapter out of the outlet when left unused for a long period
of time.
When Charge start sound is not heard or when charging LED does not
illuminate, check that the FOMA terminal is placed securely in the
desktop holder (except when terminal is turned off, Manner mode is set
or Charge start sound is Silent).
When placing the FOMA terminal in the desktop holder, be careful that
the strap is not caught in between the handset and the desktop holder.
Connector
(Face the side
with the arrows
up)
1
100V AC
outlet
2
FOMA AC
Adapter 01/02
Charging LED
