To monitor the status of the trunks and B-channels:
Open the 'Trunk & Channel Status' screen by clicking the Home icon; the 'Trunk &
2
Channel Status' screen is displayed.

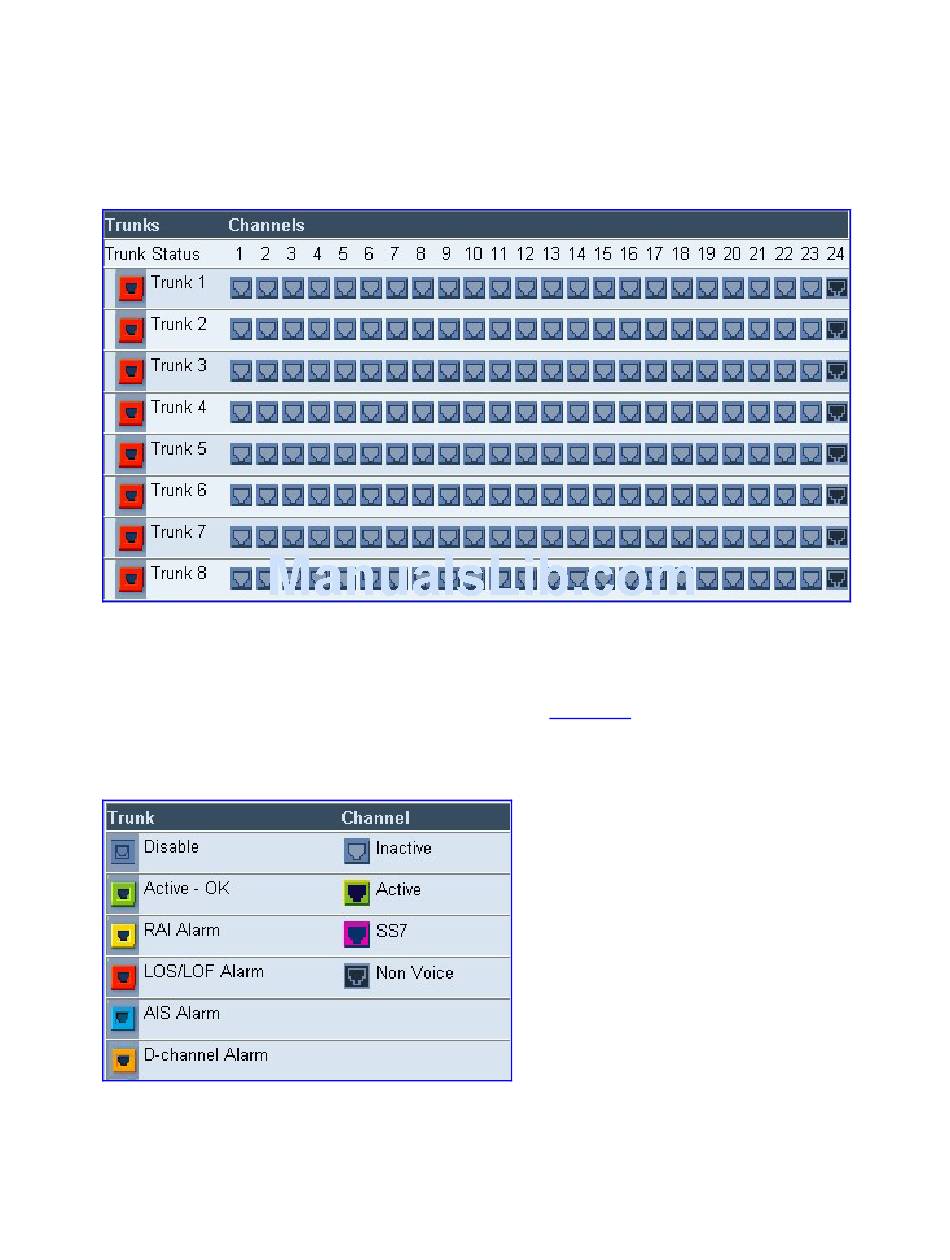

V7122 Trunk & Channel Status Screen
Figure 59
The number of trunks and channels that appear on the screen depends on the system
configuration. The example above depicts a system with 8 T1 spans.
The trunk and channel status indicators appear colored.
indicators and their descriptions.
Trunk and Channel Status Color Indicator Keys
Figure 60
128
Figure 60 shows the possible
