In the 'Coder Group' drop-down list, select the coder group you want to assign to that
5
Profile. You can select the gateway's default coders (see Coders) or one of the coder
groups you defined in the Coder Group Settings screen (see Coders).
Repeat Steps 2 to 6 for the second to fifth IP Profiles (optional).
6
Click the Submit button to save your changes.
7
To save the changes so they are available after a power fail, see
8

Configuring the Trunk Group Table

Use the Trunk Group table to assign trunk groups, profiles and logical telephone numbers to
the gateway's E1/T1 B-channels. Trunk Groups are used for routing IP Tel calls with
common rules. Channels that are not defined are disabled.
To configure the Trunk Group table:
Open the 'Trunk Group Table' screen (Protocol Management menu > Trunk Group);
1
the 'Trunk Group Table' screen is displayed.

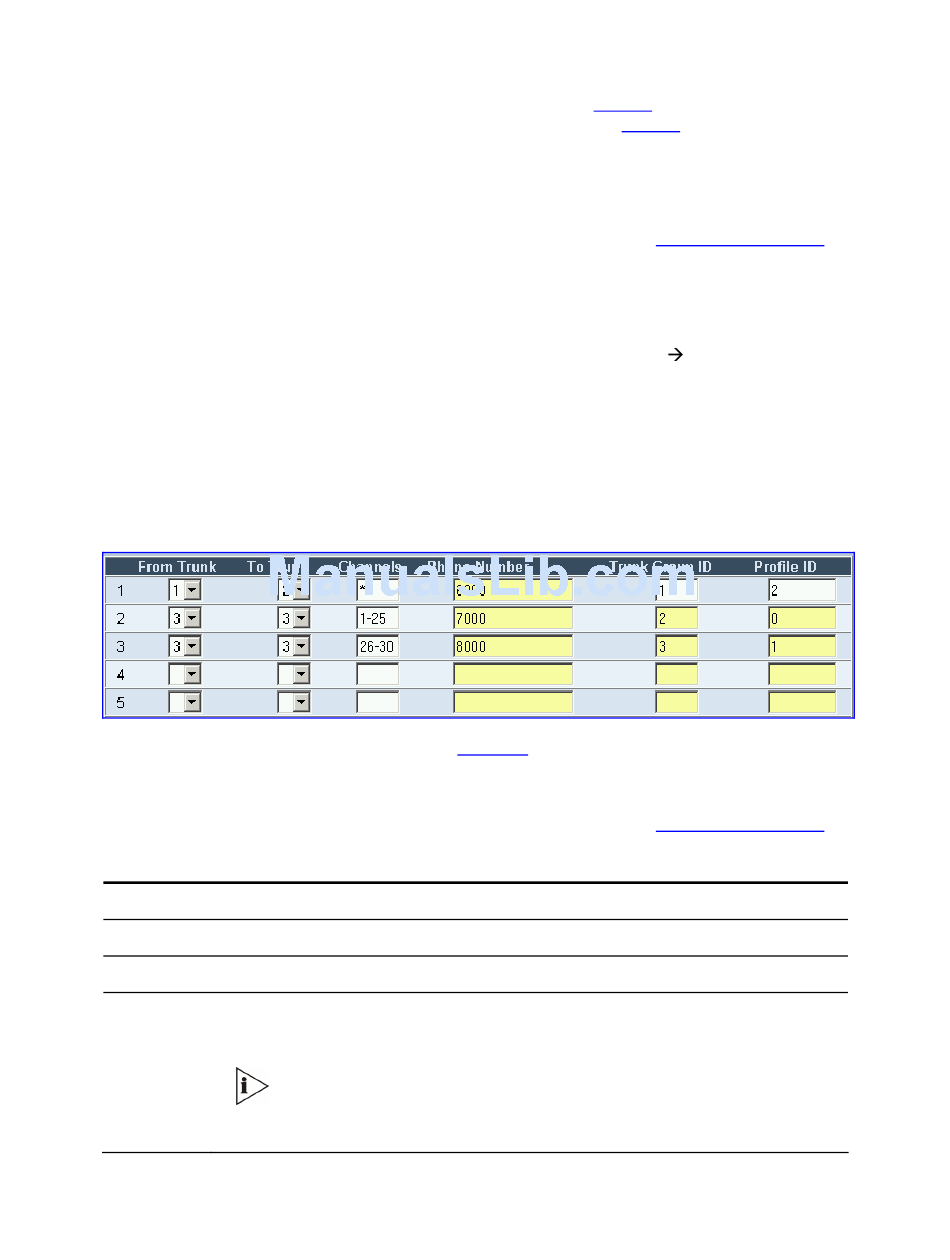

Trunk Group Table Screen
Figure 37
Configure the Trunk Group according to
2
Click the Submit button to save your changes.
3
To save the changes so they are available after a power fail, see
4
Trunk Group Table
Table 26
Parameter Description
From Trunk Starting physical trunk number (0 to 7).
To Trunk Ending physical trunk number (0 to 7).
Channels To enable the trunk's B-channels, you must enter their number in this field.
[n-m] represents a range of channels.
For example, enter [1-24] to specify the channels from 1 to 24.
98
Table 26.
The number of defined channels must not exceed the number of the trunk's
B-channels (1-24 for T1 spans and 1-31 for E1 spans).
To represent all B-channels use a single asterisk instead.
Saving Configuration.
Saving Configuration.
V7122 GatewayUser Guide
