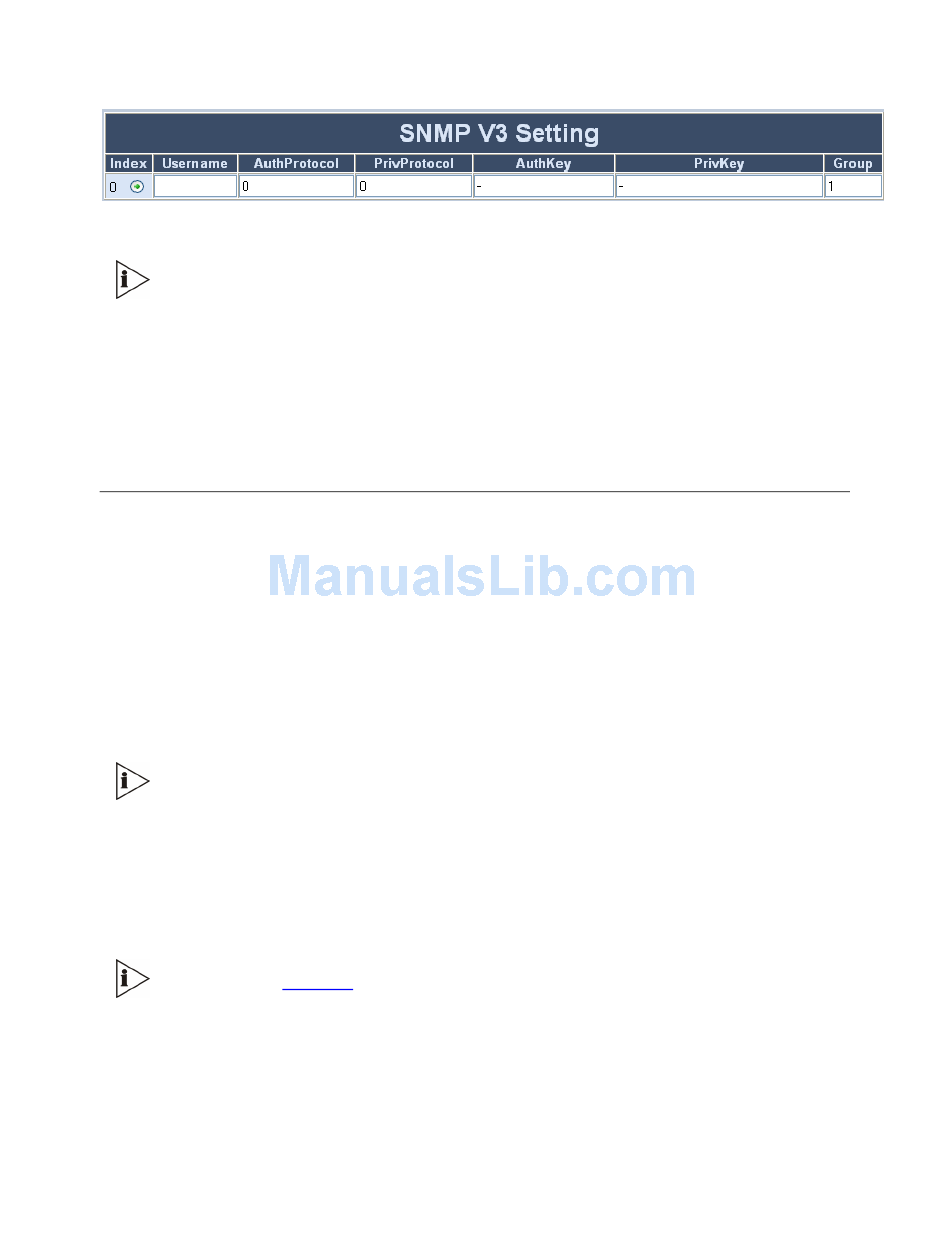

SNMP V3 Setting Screen
Figure 55
•
To delete an SNMP V3 user, select the Index ratio button corresponding to the
SNMP V3 user row entry that you want to delete, and then click the Delete
Row button.
•
To copy an existing SNMP V3 user configuration to a new row, select the radio
button on the left of the desired SNMP V3 user row, and then click Copy
Selected Row as A New Row. A new row appears that includes the same
configuration as the selected row.
•
To sort all row indexes incrementally, click Compact Table.
Status & Diagnostic
Use this menu to view and monitor the gateway's channels, Syslog messages, hardware /
software product information, and to assess the gateway's statistics and IP connectivity
information.

Gateway Statistics

Use the screens under Gateway Statistics to monitor real-time activity such as IP
Connectivity information, call details and call statistics, including the number of call attempts,
failed calls, fax calls, and the like.
The Gateway Statistics screens doesn't refresh automatically. To view updated
information, re-access the screen you require.
IP Connectivity
The IP Connectivity screen provides you with an online read-only network diagnostic
connectivity information on all destination IP addresses configured in the Tel to IP Routing
table.
This information is available only if the parameter 'AltRoutingTel2IPEnable'
(described in
The information in columns 'Quality Status' and 'Quality Info.' (per IP address) is
reset if two minutes elapse without a call to that destination.
To view the IP connectivity information:
Set 'AltRoutingTel2IPEnable' to 1 or 2.
1
V7122 Gateway User Guide
Table 44) is set to 1 (Enable) or 2 (Status Only).
123
