Column Name Description
Quality Info. Displays QoS information: delay and packet loss, calculated according to previous calls.
DNS Status
Can be one of the following:
DNS Disable
DNS Resolved
DNS Unresolved
Call Counters
The Call Counters screens provide you with statistic information on incoming (IP Tel) and
outgoing (Tel IP) calls. The statistic information is updated according to the release reason
that is received after a call is terminated (during the same time as the end-of-call CDR
message is sent). The release reason can be viewed in the Termination Reason field in the
CDR message. For detailed information on each counter, see
You can reset this information by clicking the Reset Counters button.
To view the IP Tel and Tel IP Call Counters information:
Open the Call Counters screen you want to view (Status & Diagnostics menu >
Gateway Statistics submenu); the relevant Call Counters screen is displayed.
shows the 'Tel IP Call Counters' screen.

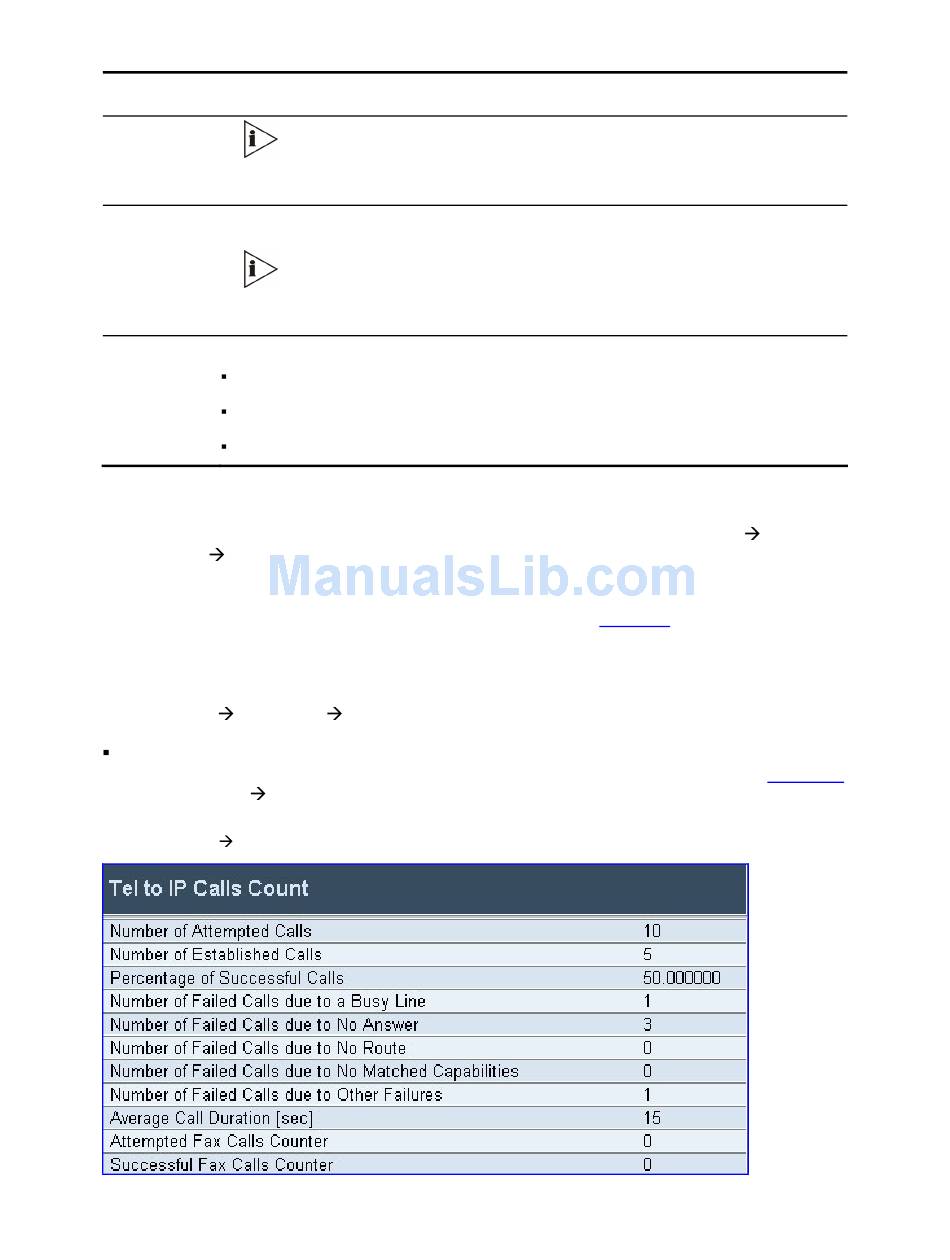

Tel IP Call Counters Screen
Figure 57
V7122 Gateway User Guide
This field is applicable only if the parameter 'AltRoutingTel2IPMode' is set to 2
or 3.
This field is reset if no QoS information is received for 2 minutes.
This field is applicable only if the parameter 'AltRoutingTel2IPMode' is set to
2 or 3.
This field is reset if no QoS information is received for 2 minutes.
