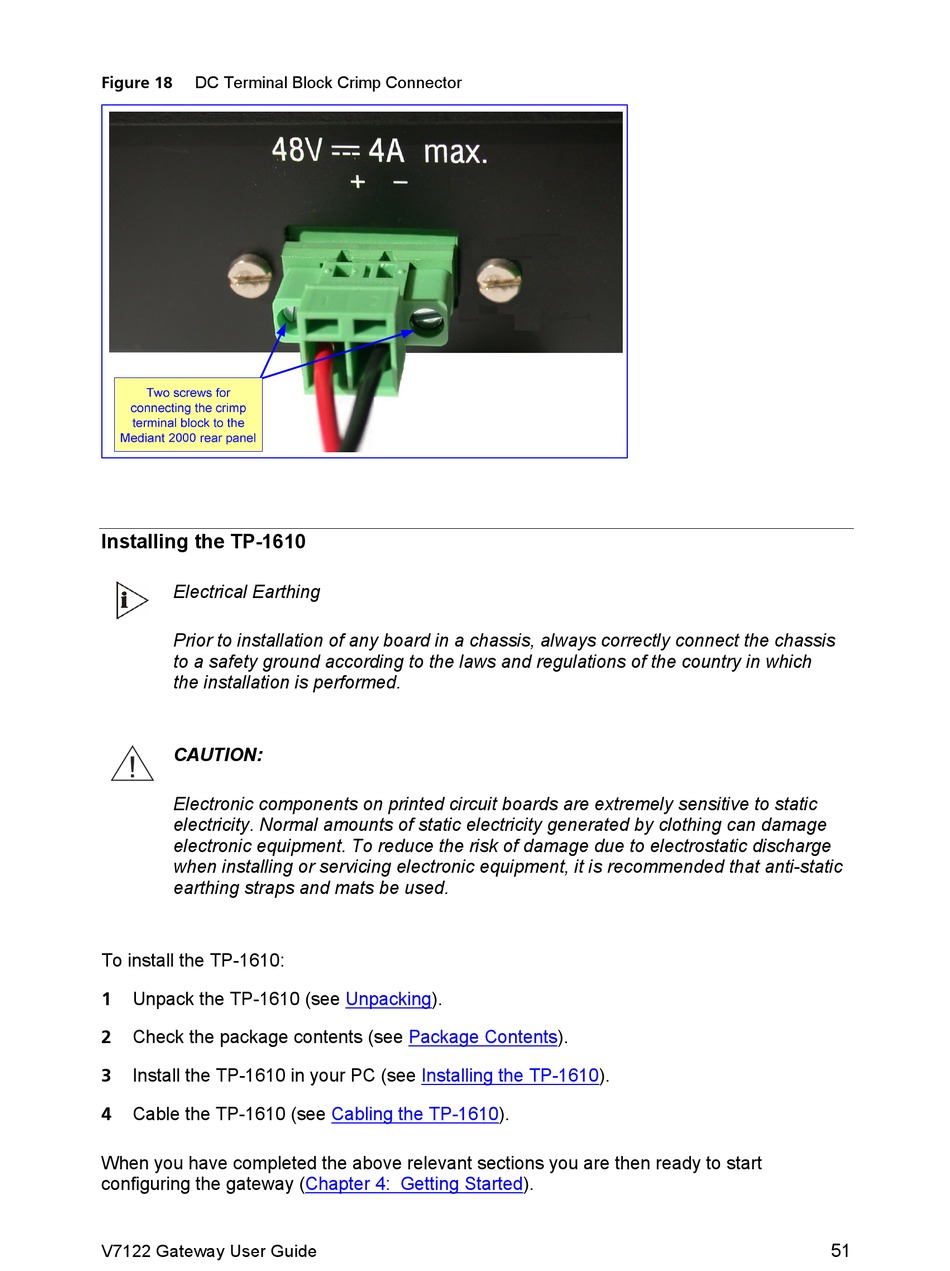

DC Terminal Block Crimp Connector
Figure 18

Installing the TP-1610

Electrical Earthing
Prior to installation of any board in a chassis, always correctly connect the chassis
to a safety ground according to the laws and regulations of the country in which
the installation is performed.
CAUTION:
Electronic components on printed circuit boards are extremely sensitive to static
electricity. Normal amounts of static electricity generated by clothing can damage
electronic equipment. To reduce the risk of damage due to electrostatic discharge
when installing or servicing electronic equipment, it is recommended that anti-static
earthing straps and mats be used.
To install the TP-1610:
Unpack the TP-1610 (see Unpacking).
1
Check the package contents (see
2
Install the TP-1610 in your PC (see
3
Cable the TP-1610 (see
4
When you have completed the above relevant sections you are then ready to start
configuring the gateway (
V7122 Gateway User Guide
Package Contents).
Installing the
Cabling the TP-1610).
C hapter 4: Getting Started).
1
TP-1610).
