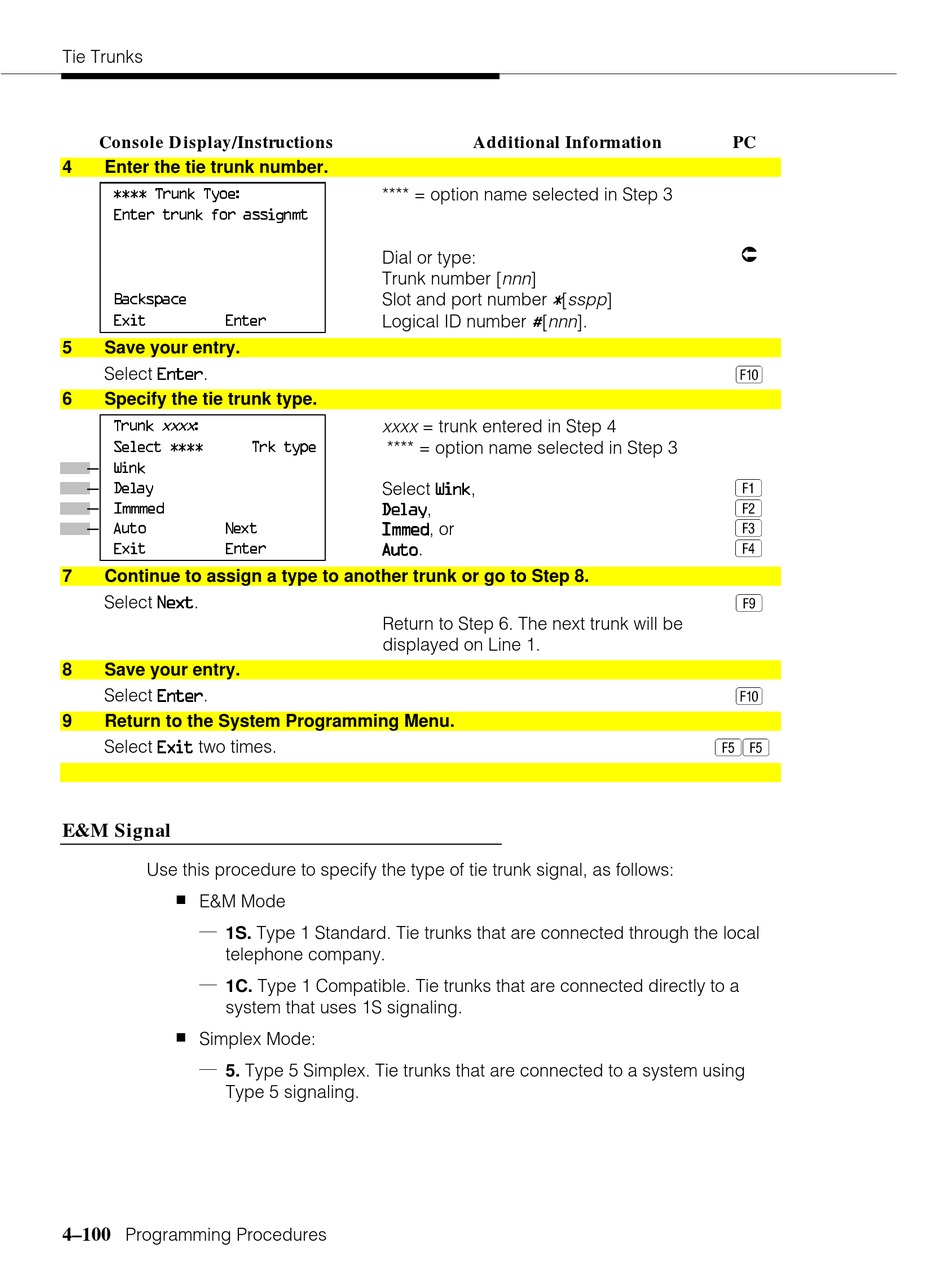

AT&T MERLIN LEGEND Release 3.1 System Programming Manual page 472

Tie Trunks
Console Display/Instructions
4 Enter the tie trunk number.
5 Save your entry.
Select .
6 Specify the tie trunk type.
NNNN
_
_
_
_
7 Continue to assign a type to another trunk or go to Step 8.
Select .
8 Save your entry.
Select .
9 Return to the System Programming Menu.
Select two times.
E&M Signal
Use this procedure to specify the type of tie trunk signal, as follows:
E&M Mode
1S. Type 1 Standard. Tie trunks that are connected through the local
telephone company.
1C. Type 1 Compatible. Tie trunks that are connected directly to a
system that uses 1S signaling.
Simplex Mode:
5. Type 5 Simplex. Tie trunks that are connected to a system using
Type 5 signaling.
4–100
Programming Procedures
Additional Information
**** = option name selected in Step 3
Dial or type:
Trunk number [ nnn ]
*
Slot and port number

Logical ID number [ nnn ].
xxxx = trunk entered in Step 4
**** = option name selected in Step 3
Select ,
,
, or
.
Return to Step 6. The next trunk will be
displayed on Line 1.
PC
[ sspp ]
