AT&T MERLIN LEGEND Release 3.1 System Programming Manual page 22

System Programming Console
DSS Components
Covers Removable plastic covers to protect the designation cards. The
top cover protects the 50 DSS button labels. The lower cover fits
over the fixed buttons.
DSS Designation Cards for labeling the extension or feature assigned to each
Cards button.
DSS Buttons 50 buttons used for one-touch dialing of co-workers' extensions to
make or transfer calls. DSS buttons are also used to page
co-workers over speakerphones, to park calls, and to handle
outside calls.
Fixed Buttons
Ten additional buttons, including Message Status, Direct Voice
Mail and three Page buttons. The five remaining buttons on the
first DSS are not used. If a second DSS is connected to the
console, the 10 buttons at the bottom of the second DSS are not
used.
Fixed Message Status button used with fixed Page buttons to
see which telephones have Message Lights on.
Fixed Page Buttons are three buttons used to select the pages of
extensions that the 50 DSS buttons represent.
LEDs (Light-Emitting Diodes) The lights that assist in checking feature
status.

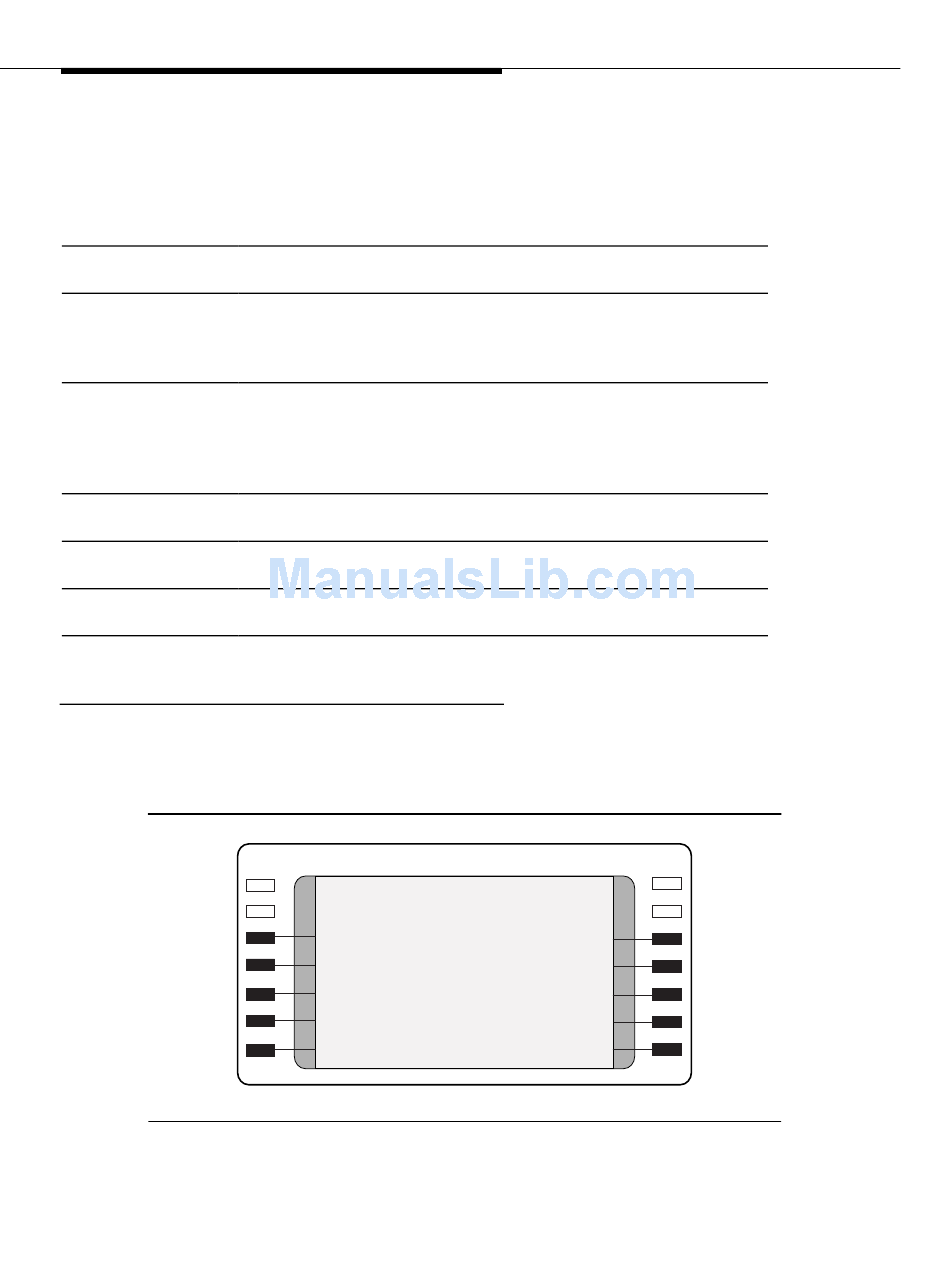

Console Buttons
Use the 14 buttons located on either side of the console display area for system
programming. These buttons are arranged in two columns of seven buttons, as
shown in Figure 1–2.
1–6
Programming Basics
Home
MENU MODE: Select Feature
Press HOME to Exit
Menu
Directory
Messages
Posted Msg
Alarm Clock
Timer
More
Inspct
Sys Program
Maintenance
Ext Program
