System Programming Console
Appendix E shows the button diagrams for the telephones used in the
communications system. Refer to this appendix when programming buttons for
other telephones.
When entering labels or filenames, the letters A through F are displayed on the
MLX-20L console screen. Additional letters can be entered by using line buttons
1 to 20 to represent letters G through Z. These letters are also displayed on the
top line of the console overlay.
Line 1
Top Sys Prog

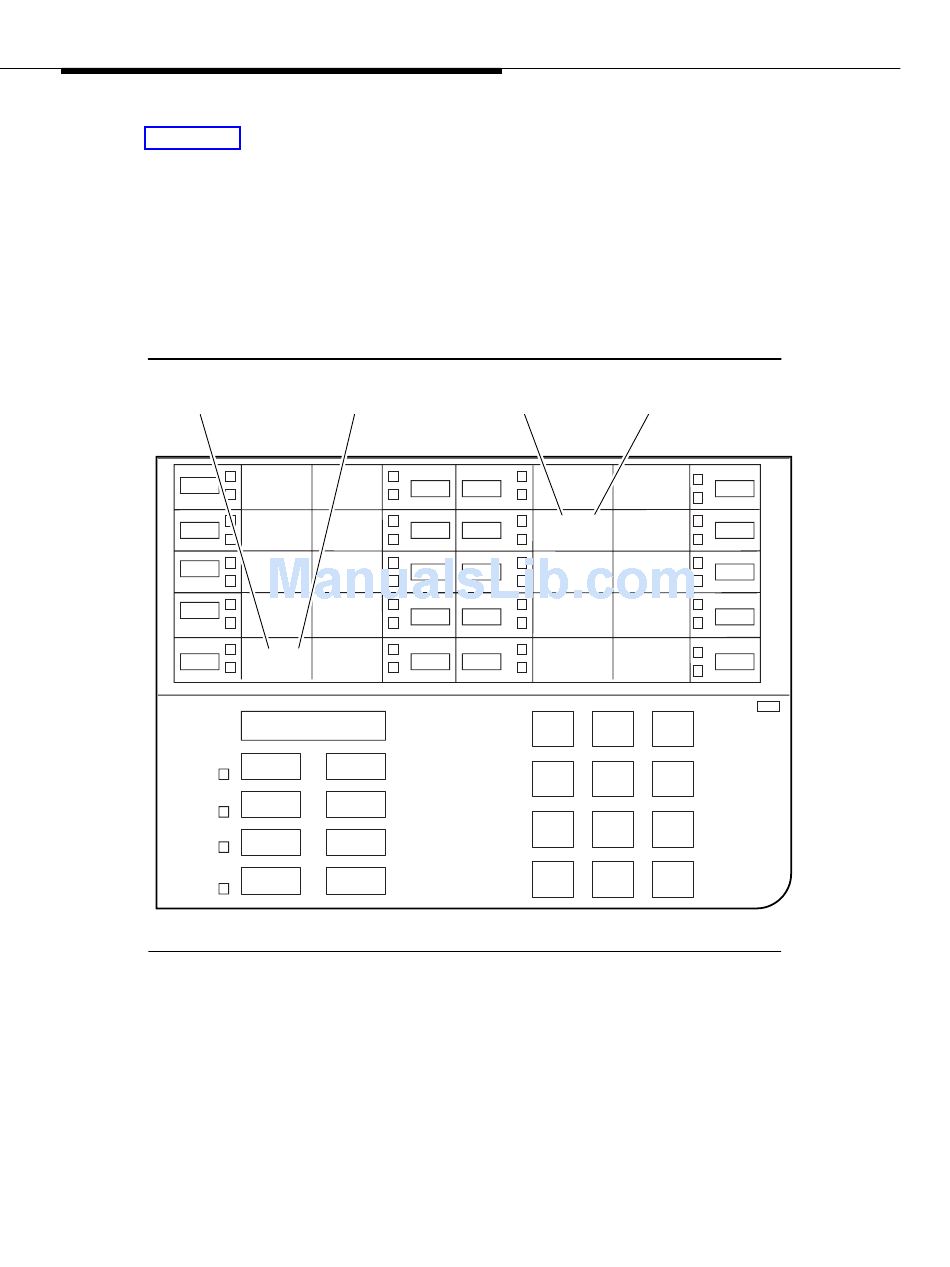

Figure 1–3. Console Overlay
When programming lines/trunks you can select a block of 20 lines/trunks as
shown on the screen below, and toggle the green or red LED associated with
each line button on the console to program each line/trunk. The bottom line of
numbers next to each line button on the console overlay represents the twenty
lines/trunks associated with each line button. See Figure 1–3 above.
1–8
Programming Basics
Line 21
5 / 25 10 / 30
G H
5 25 45 65 1O 30 50 70
L
4 / 24 9 / 29
K
4 24 44 64 9 29 49 69
8 / 28
P
O 3 / 23
3 23 43 63 8 28 48 68
2 / 22 7 / 27 T
S
2 22 42 62 7 27 47 67
6 / 26
X
W 1 / 21
1 21 41 61 6 26 46 66
Switchhook Flash
Stop/Drop Entry
Pause
Line 14 Line 34
15 / 20 / J
I
15 35 55 75 20 40 60 80
14 / 34 19 / N
M
14 34 54 74 19 39 59 79
Q 13 / 33 18 / R
13 33 53 73 18 38 58 78
12 / 32 /
U
17 V
12 32 52 72 17 37 57 77
11 / 31 16 / Z
Y
11 31 51 71 16 36 56 76
